BLOWER
PADDLE
MARK

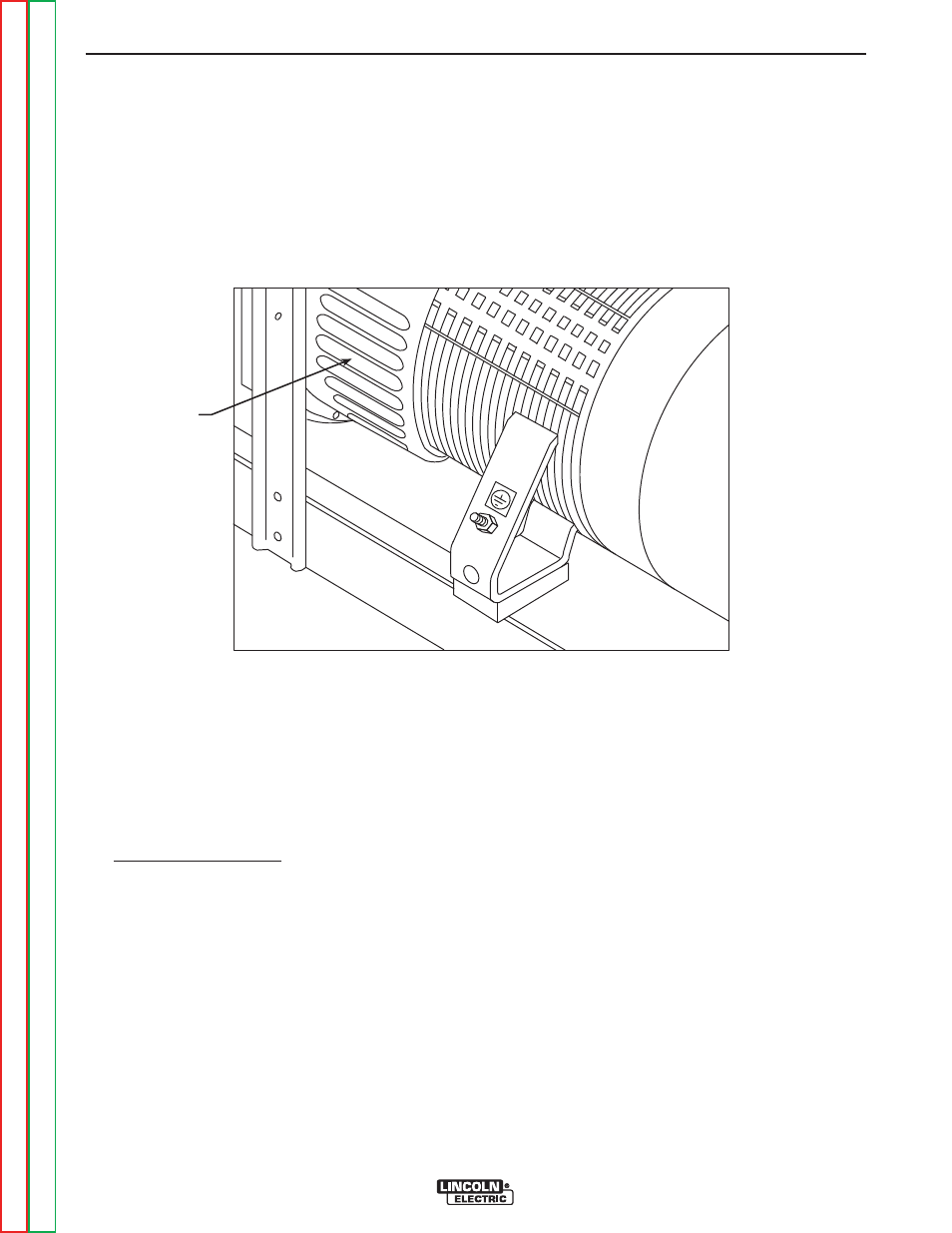

FIGURE F.13 - BLOWER PADDLE MARK LOCATION
ENGINE THROTTLE ADJUSTMENT TEST (CONTINUED)
(PERKINS ONLY)
PROCEDURE
Strobe Tach Method
1. Turn the engine off.
2. Unlatch, lift and secure the right side door.
Note: Latches are located at both ends of the
door.
3. Using a white or red marking pencil, place a
mark on one of the blower paddles or on the
side of the flywheel. See Figure F.13 for loca-
tion.
4. Connect the strobe-tach according to the
manufacturerʼs instructions.
5. Start the engine and direct the strobe-tach light
on the blower paddle. Synchronize it to the
rotating mark.
With the machine at HIGH IDLE the tach
should read between 1540 and 1650 RPM.
With the machine at LOW IDLE the tach should
read between 1375 and 1425 RPM.
TROUBLESHOOTING & REPAIR F-38 F-38
PIPELINER® 200
