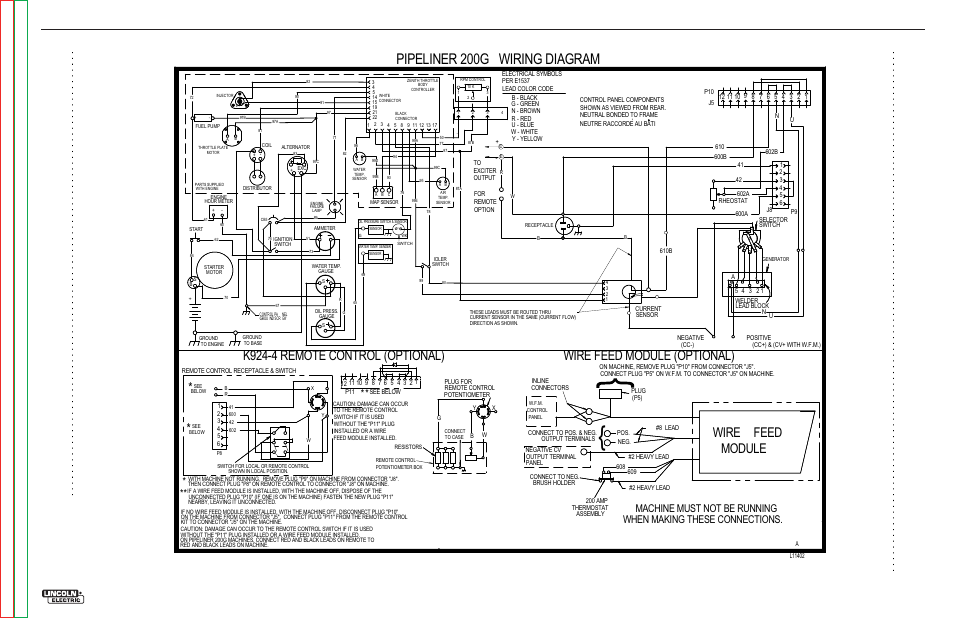

Pipeliner 200g wiring diagram, Wire feed module (optional) wire feed module, K924-4 remote control (optional) – Lincoln Electric PIPELINER 200 User Manual
Page 136: Electrical diagrams
