40 Advanced Wireless-N Router
Linksys E2100L Chapter 3: Advanced Configuration
Internet Connection
This section shows the current network information
stored in the Router . The information varies depending on
the Internet connection type selected on the Setup > Basic
Setup screen .
For a DHCP connection, select Release IP Address or
Renew IP Address as appropriate to release or renew
a DHCP lease . For a PPPoE or similar connection, select
Connect or Disconnect as appropriate to connect to or
disconnect from the Internet .
Click Refresh to update the on-screen information .

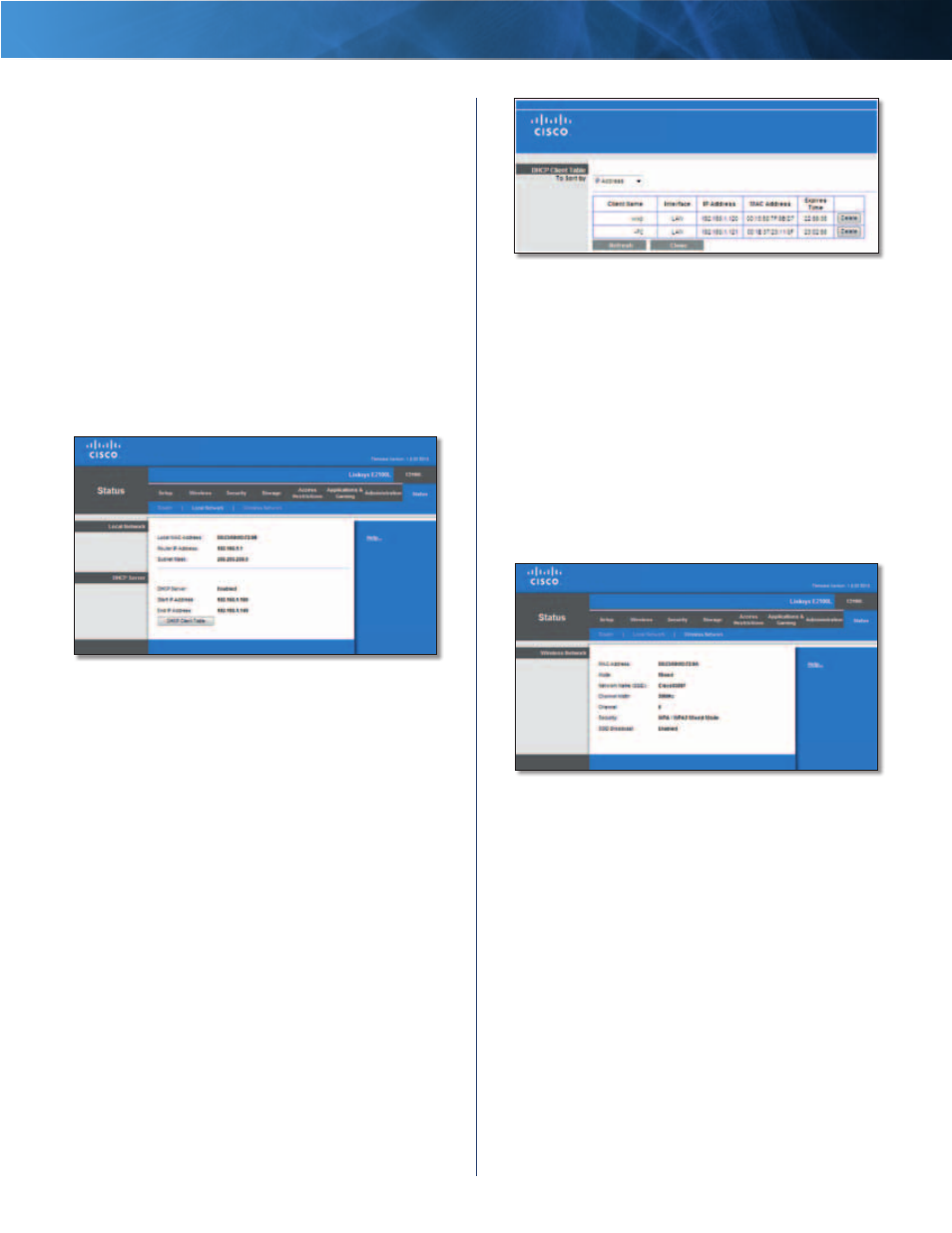

Status > Local Network
The Local Network screen displays information about the
local network .
Status > Local Network
Local Network
Local MAC Address The MAC address of the Router’s
local, wired interface is displayed .
Router IP Address The Router’s IP address, as it appears
on your local network, is displayed .
Subnet Mask The Subnet Mask of the Router is displayed .
DHCP Server
DHCP Server The status of the Router’s DHCP server
function is displayed .
Start IP Address For the range of IP addresses that can
be used by devices on your local network, the starting IP
address is displayed .
End IP Address For the range of IP addresses that can
be used by devices on your local network, the ending IP
address is displayed .
DHCP Client Table Click this option to view a list of
computers or other devices that are using the Router as
a DHCP server .
DHCP Client Table
DHCP Client Table
The DHCP Client Table lists computers and other
devices that have been assigned IP addresses by the
Router . The list can be sorted by IP Address, MAC
Address, Interface, and Client Name . To remove a
DHCP client, click Delete . To update the on-screen
information, click Refresh . To exit this screen and
return to the Local Network screen, click Close .
Status > Wireless Network
The Wireless Network screen displays information about
your wireless network .
Status > Wireless Network
Wireless Network
MAC Address The MAC address of the Router’s local,
wireless interface is displayed .
Mode The wireless mode used by the network is
displayed .
Network Name (SSID) The name of the wireless network,
which is also called the SSID, is displayed .
Channel Width The Channel Width setting (selected on
the Wireless > Basic Wireless Settings screen) is displayed .
Channel The Channel setting selected on the Basic
Wireless Settings screen is displayed .
Security The wireless security method used by the
Router is displayed .
SSID Broadcast The status of the SSID Broadcast option
is displayed .
