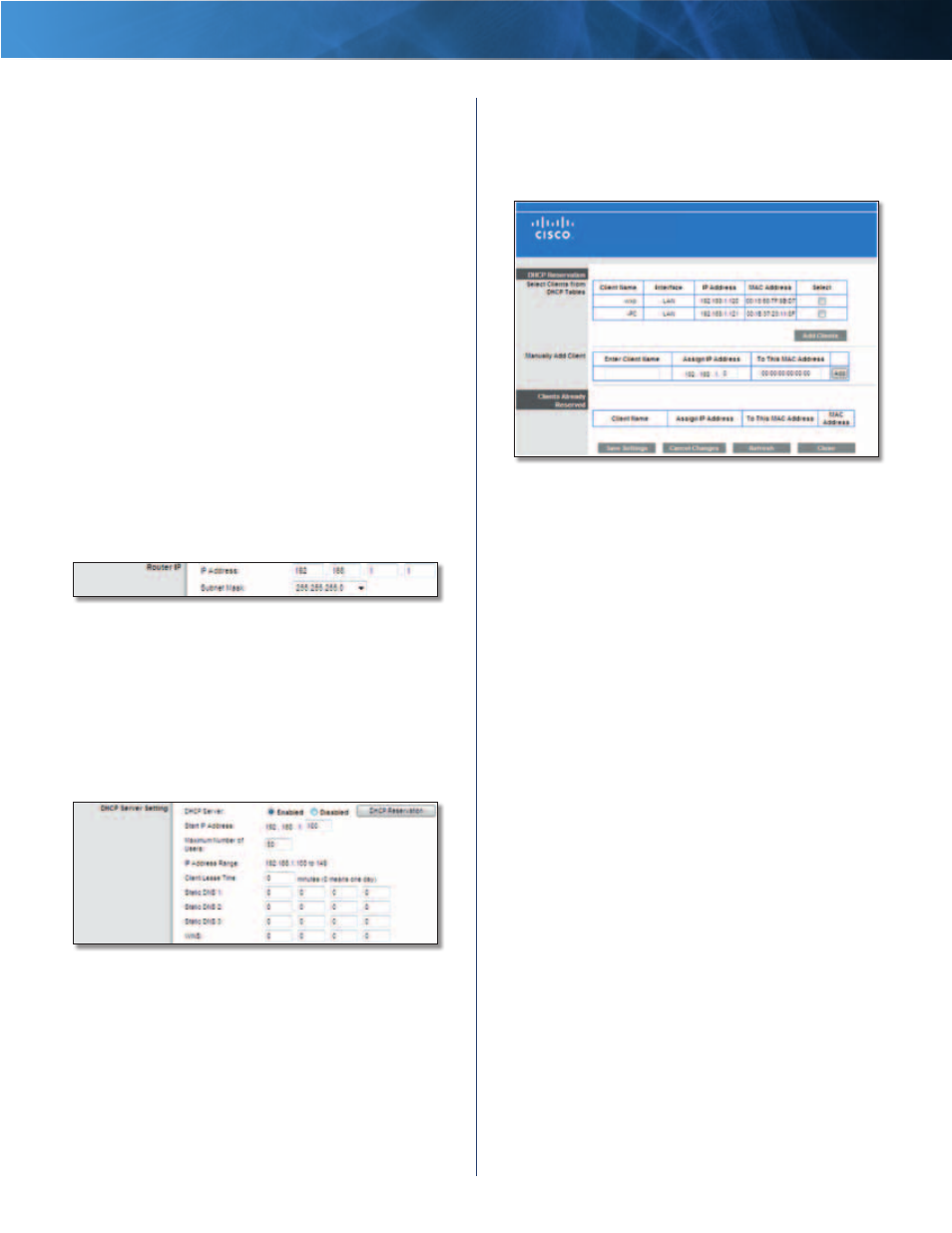

14 Advanced Wireless-N Router
Linksys E2100L Chapter 3: Advanced Configuration
Select Manual if you want to manually enter the largest
packet size that is transmitted . To have the Router select
the best MTU for your Internet connection, keep the
default setting, Auto .
Size When Manual is selected in the MTU field, this option
is enabled . Leave this value in the 1200 to 1500 range . The
default size depends on the Internet Connection Type:
• DHCP, Static IP, or Telstra: 1500
• PPPoE: 1492
• PPTP or L2TP: 1460
Network Setup
The Network Setup section configures the IP settings for
your local network .
Router IP
IP Address The Router’s IP address, as seen by your
network, is displayed . The default Router IP address is
192.168.1.1 .
Subnet Mask The Router’s Subnet Mask, as seen by your
network, is displayed .
Router IP
DHCP Server Settings
The settings allow you to configure the Router’s DHCP
server function . The Router can be used as a DHCP server
for your network . A DHCP server automatically assigns an
IP address to each computer or device on your network .
If you choose to enable the Router’s DHCP server option,
make sure there is no other DHCP server on your network .
DHCP Server Setting
DHCP Server DHCP is enabled by factory default . If you
already have a DHCP server on your network, or you do
not want a DHCP server, then select Disabled (no other
DHCP features will be available) .
DHCP Reservation Click DHCP Reservation if you want
to assign a fixed local IP address to a MAC address .
DHCP Reservation
You will see a list of DHCP clients with the following
information: Client Name, Interface, IP Address, and
MAC Address .
DHCP Reservation
• Select Clients from DHCP Table Click the Select
check box to reserve a client’s IP address . Then click
Add Clients .
• Manually Adding Client To manually assign an IP
address, enter the client’s name in the Enter Client
Name field . Enter the IP address you want it to have in
the Assign IP Address field . Enter its MAC address in the
To This MAC Address field . Then click Add .
Clients Already Reserved
A list of DHCP clients and their fixed local IP addresses
will be displayed at the bottom of the screen . If you
want to remove a client from this list, click Remove .
Click Save Settings to apply your changes, or click
Cancel Changes to clear your changes . To update
the on-screen information, click Refresh . To exit this
screen, click Close .
Start IP Address The Start IP Address specifies the
starting IP address for the range of addresses assigned
by your Router when it functions as a DHCP server . (The
first IP address assigned by the Router will be randomly
selected within the range you specify .)
Because the Router’s default IP address is 192 .168 .1 .1,
the Start IP Address must be 192 .168 .1 .2 or greater, but
smaller than 192 .168 .1 .254 . The default Start IP Address is
192.168.1.100 .
Maximum Number of Users Enter the maximum
number of computers that you want the DHCP server to
assign IP addresses to . This number cannot be greater
than 253 . The default is 50 .
IP Address Range The range of available IP addresses is
displayed .
