Access modes
User
The user can adjust space heating and tank target temperatures
by pressing the NAVIGATION dial when “SETPOINTS” is
fl ashing at the bottom of the display. The date and time, and
the temperature units can also be changed (see page 36).
Installer
Most parameters are available only to the installer, accessible
by entering the installer password, see the Outdoor Knight XL
Service Manual.
Saving parameters
(reference the Parameter Table in
the Outdoor Knight XL Service Manual)
8
Operating information
(continued)
Please note that the brackets ([]) denote
screen status.
NOTICE
To save parameters and exit programming:
Press the RIGHT SELECT [SAVE] key and then press the
RIGHT SELECT [HOME] key.
To enter a parameter and continue programming:
Press the RIGHT SELECT [SAVE] key 1 time to return to the
parameter listings; press again to return to the menu listings.
Remember to press the RIGHT SELECT [HOME] key when
fi nished programming in order to save the changes made.
See the Outdoor Knight XL Service Manual for a detailed
description of parameters and access modes.
Outdoor Knight XL control module
NAVIGATION DIAL

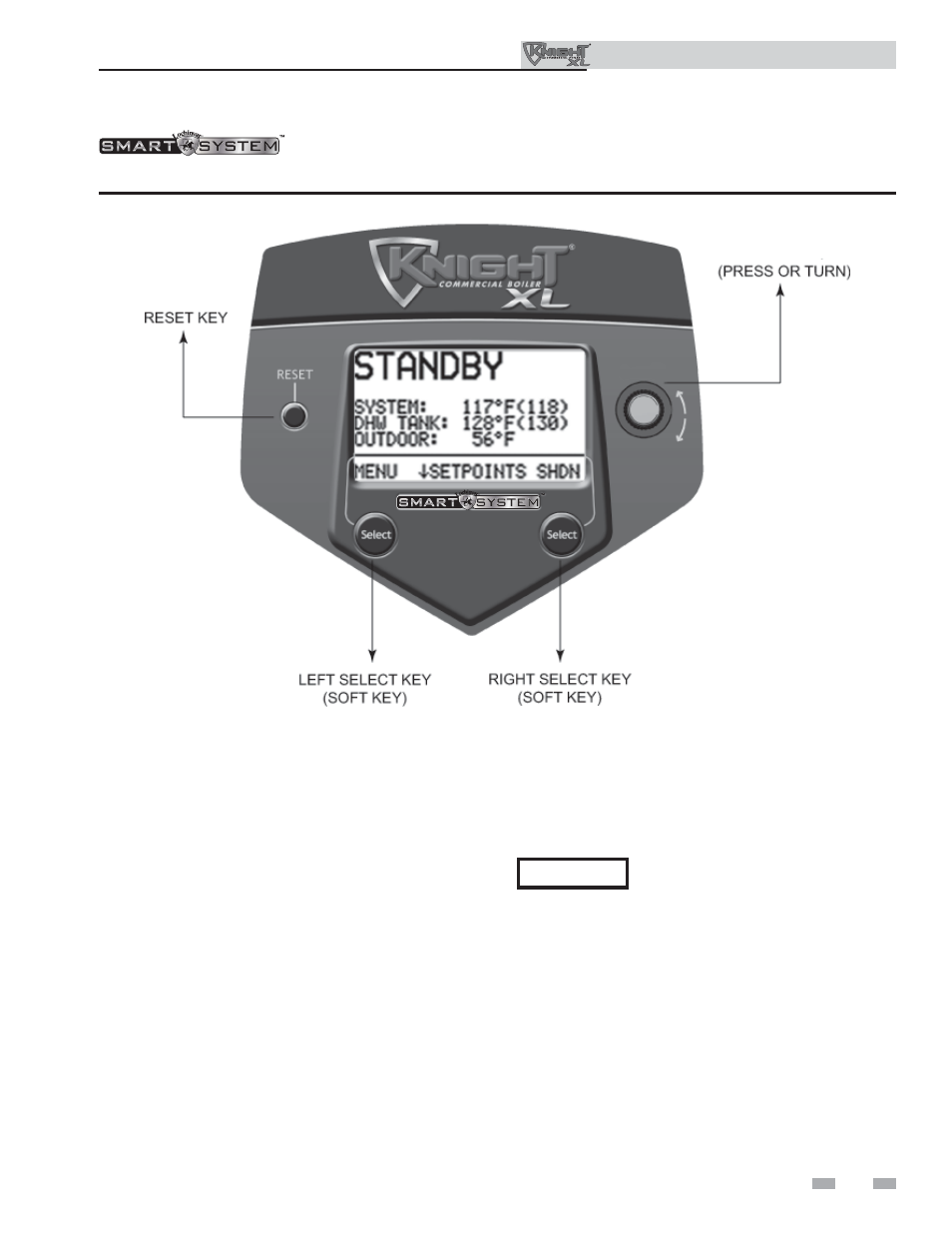

Figure 8-1 Control Panel
Use the control panel (FIG. 8-1) to set temperatures, operating conditions, and monitor boiler operation.
The information on the bottom of the display shows the functions of the two SELECT keys (on either corner), and the
NAVIGATION dial (in the center):
MENU = Left SELECT Key
SETPOINTS = NAVIGATION Dial - Pressing Down
SHDN = Right SELECT Key
Outdoor Knight XL Installation & Operation Manual
