2
PHONES
THX DOLBY DIGITAL
DTS MPEG
D.R.I.V.E. HDCD
¤ INPUT SELECTOR ‹
DOOR
OPEN/CLOSE
VOLUME CONTROL
DOWN UP
AV - AUX
S VIDEO VIDEO L - AUDIO - R
A SPEAKERS B I NPUT
MODE CD 2/TAPE 2
MONITOR
LISTEN
MODE THX
SET UP RF
ON/OFF
RF BAND DISPLAY
SOUND
MULTI
CONTROL
fi %
P.CALL MEMORY AUTO BAND
fi %
CLIP
INDICATOR
ON/STANDBY
REMOTE POWER
CD 2 / TAPE 2
MONITOR
SURROUND
BACK 96kfs
STANDBY
DISCRETE 6.1 MATRIX 6.1 NEO : 6 PRO LOGIC
DTS-ES
1
3 4 10 11 12 14 15
16
17
18
19 20 21 23 2
9 13 5
6
7
22
8
24

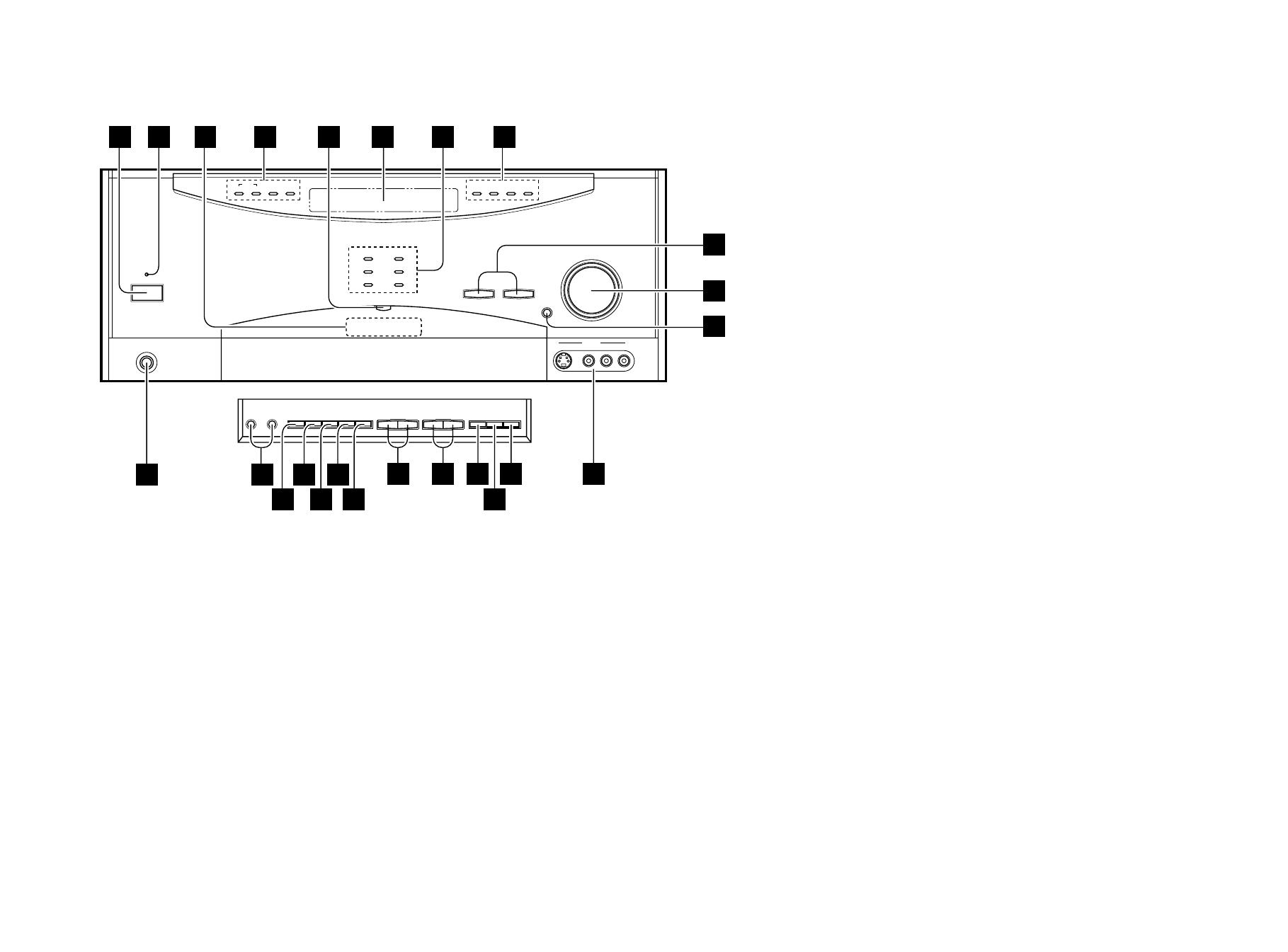

1. STANDBY indicator
2. REMOTE POWER ON/STANDBY button
3. PHONES jack
4. SPEAKERS A/B buttons
5. INPUT MODE button /
RF ON/OFF button
6. CD 2/TAPE 2 MONITOR button /
RF BAND button
7. LISTEN MODE button/DISPLAY button
8. THX button
9. SOUND button/SET UP button
10. MULTI CONTROL (Up/Down) buttons
11. P. CALL (Up/Down) buttons
12. MEMORY button
13. AUTO button
14. BAND button
15. AV-AUX input jacks
16. DOOR OPEN/CLOSE button
17. VOLUME CONTROL knob
18. INPUT SELECTOR buttons
19. Indicators
SURROUND BACK
96 k fs
CD2/TAPE2 MONITOR
CLIP INDICATOR
20. Indicators
THX
DTS
D. R. I. V. E.
DOLBY DIGITAL
MPEG
HDCD
21. Display
22. 2-way communication indicator
23. Indicators
DTS-ES DISCRETE 6.1
DTS-ES MATRIX 6.1
NEO : 6
PRO LOGIC
24. Infrared remote transmitter
Buttons 4 to 14 are located behind the door.
Buttons be-
hind the
door
Standby mode
While the standby indicator of the unit is lit, a small amount of current is flowing into the unit’s internal circuitry to back up the memory. This condition
is referred to as the standby mode of the unit. While the unit is in the standby mode, it can be turned ON from the remote control unit.
What’s on the Front Panel of Your Kenwood Audio-Video Receiver?
