Mounting to a roof rack, Position the roof rack crossbars 35 – KVH Industries KVH TracVision User Manual
Page 4
Installation
54-0239
TracVision A5 Shop Manual
© 2004 KVH Industries, Inc., All rights reserved.
• Position the roof rack crossbars 35
1
/
2
" apart, measured center-to-
center.
• At least 1" clearance is required between the underside of the
antenna and the roof. To raise the antenna higher, use the
spacers supplied in the kitpack (see page 2.6 of the Installation
Guide for details).
• Always use the tamper-resistant TORX hardware supplied in the
kitpack. Do not use any substitutes.
Mounting to a Roof Rack
Effective April 2004
Subject to change without notice

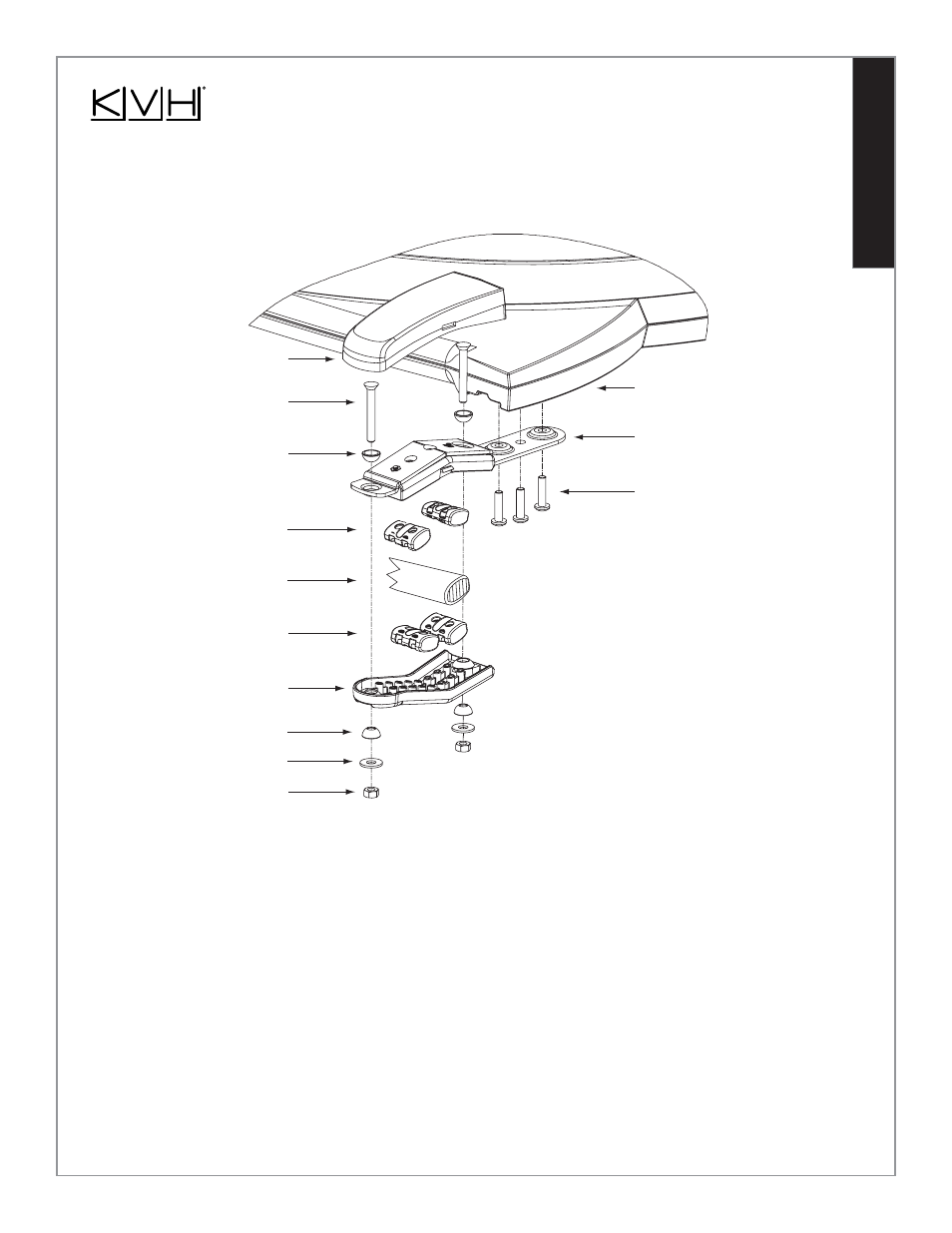

Flat-head
TORX Screws
Cover
Roof Rack Crossbar
Retaining Block
Rubber Cushions
Swivel Nuts
Swivel Nuts
Rubber Cushions
Flat Washers
Lock Nuts
Button-head
TORX Screws
Mounting Bracket
Antenna
