08: St. Tempo Flanger (Stereo Tempo Flanger)
129
size4

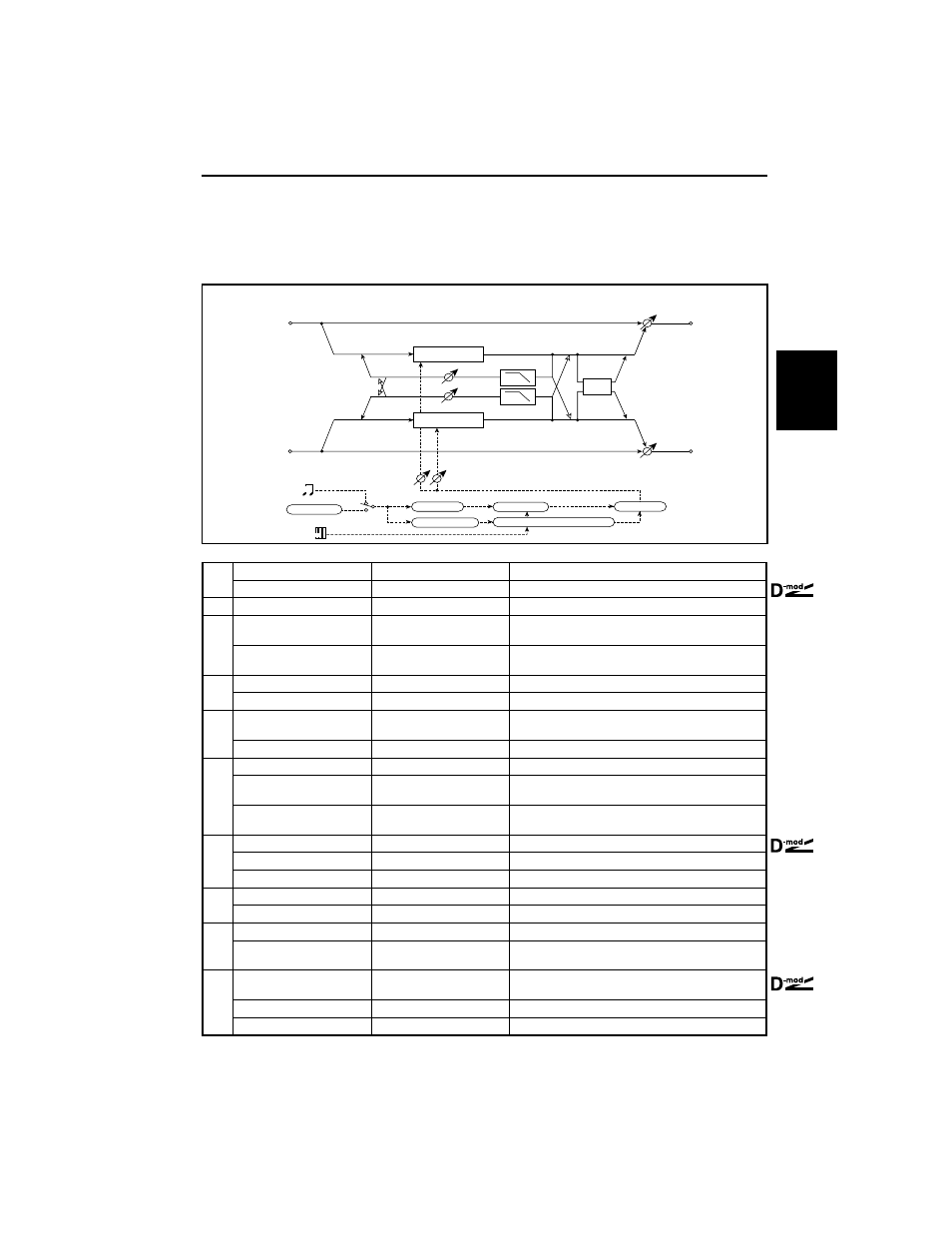

08: St. Tempo Flanger
(Stereo Tempo Flanger)
This is a stereo tempo flanger. You can select random or step waveforms for the LFO, and synchronize the
speed of the random/step waveform with tempo. Also, synchronizing the LFO to note-on messages will
produce a flanging effect with a fixed timing.
a
LFO Sync Off, On LFO reset on/off ☞ P.109
Src None…Tempo Modulation source that resets LFO
b Delay Time [msec] 0.0…50.0msec Delay time from the original sound
c
LFO Waveform
Triangle, Sine, Step-Tri,
Step-Sin, Random
Selects LFO waveform. ☞ P.70
LFO Shape –100…+100
Determines how much the LFO waveform is changed.
☞ P.32
d
LFO Lch Phase [deg] –180…+180 Left LFO phase after reset ☞ P.109
Rch Phase [deg] –180…+180 Right LFO phase after reset
e
LFO Mode Manual, D-mod
Switches between the specified tempo and clock sync.
☞
P.33
Src(fixed) Tempo Source when LFO Mode = D-mod (fixed to Tempo)
f
Tempo [beat/min] 30…250 beat/min Tempo when LFO Mode = Manual ☞ P.33
Length 1…16 / 1…16
Sets the LFO cycle. LFO Cycle = Length x Whole Note.
☞
P.33
Step 1…16 / 1…32
Sets the LFO step cycle. LFO step Cycle = Length x
Whole Note.
g
Depth 0…100 Depth of LFO modulation
Src None…Tempo Modulation source of LFO modulation depth
Amt –100…+100 Modulation amount of LFO modulation depth
h
Feedback –100…+100 Feedback amount ☞ P.32
FB Mode Normal, Cross Sets feedback routing.
☞
P.69
i
High Damp [%] 0…100% Feedback damping amount in the high range ☞ P.32
Spread –100…+100
Sets the width of the stereo image of effect sound.
☞ P.65
j
Wet/Dry
–Wet…–1:99, Dry,
1:99…Wet Sets the balance between the effect and dry sounds.
☞ P.25, 32
Src None…Tempo Modulation source of effect balance
Amt –100…+100 Modulation amount of effect balance
Flanger
Flanger
FB Mode
(Normal/Cross)
Left
Right
Feedback
LFO Phase
Wet / Dry
Wet / Dry
High Damp
Stereo In - Stereo Out
LFO Shape
Tempo
LFO Mode
D-mod
Manual
Length: 1/4 120 [beat/min]
LFO Sync
Step Length: 1/16 LFO: Step-Tri / Step Sin / Random
LFO: Tri / Sine
Spread
FB Mode
(Normal/Cross)
