3-7-3. PVID
Function name:
PVID
Function description:
In PVID Setting, user can input VID number to each port. The range of VID
number is from 1 to 4094. User also can choose ingress filtering rule (Rule 2)
to each port. The Ingress Filtering Rule 2 is “drop untagged frame”. While Rule
2 is enabled, the port will discard all Untagged-frames.

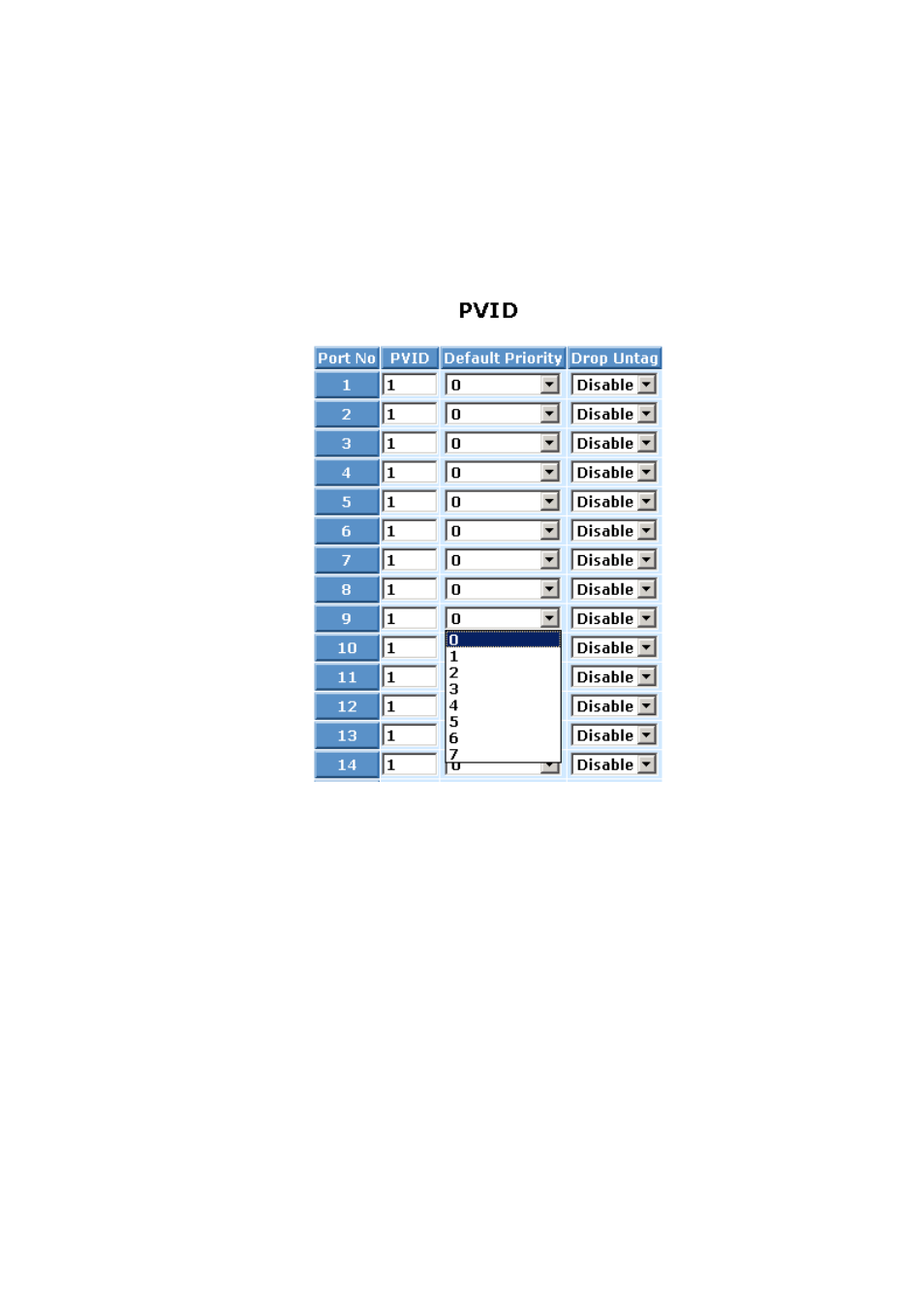

Fig. 3-23
Parameter description:
Port 1-26:
Port number.
PVID:
This PVID range will be 1-4094. Before you set a number x as PVID, you
have to create a Tag-based VLAN with VID x. For example, if port x
receives an untagged packet, the switch will apply the PVID (assume as
VID y) of port x to tag this packet, the packet then will be forwarded as
the tagged packet with VID y.
Default Priority:
