Function name:
VIP Port Setting
Function description:
When the port is set as VIP Port, the packets enter this port and will have
highest transmitting priority. For example, as you choose port 2 is VIP Port,
simultaneously transmit packets from port 2 and port 3 to port 1 at speed of
100MB and let congestion happen. The packets for port 3 will be dropped
because the packets from port 2 own highest precedence. For the sake of this
function taking effect, you must choose Scheduling Method of Strict Priority
ahead.
Parameter description:
VIP Port:
Just tick the check box (
)
to select any port (port 1~26) as the VIP Port.
Then, click the

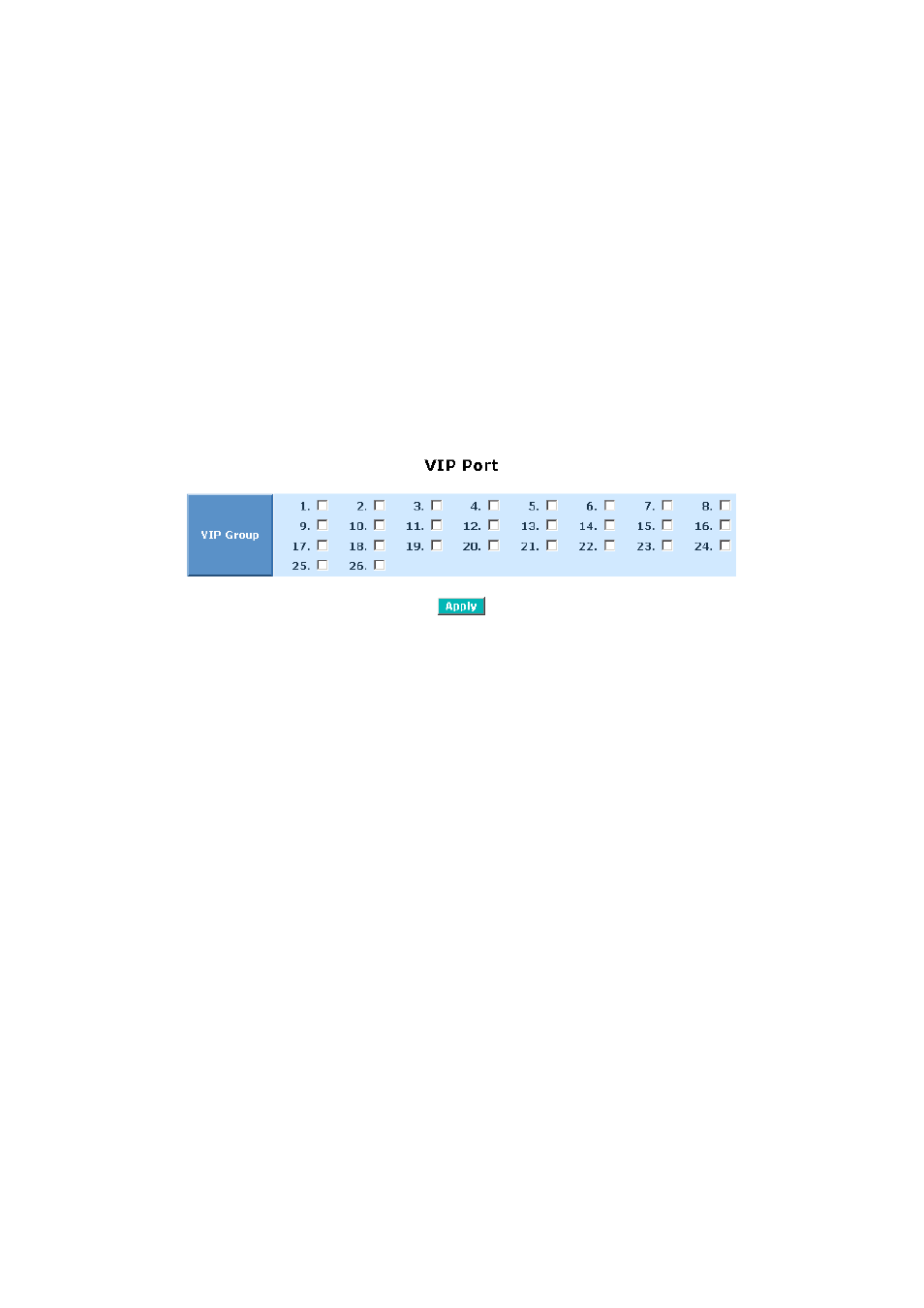

Fig. 3-57
