KORG D1600 Guided Tour

You'll continue to use the currently selected song for the following exercises…

View the current Master effects and send levels:

1. Press

the

MASTER EFFECT / AUX key, then press the “MstEff1” tab in the display - note that “M002

RV2:SmoothHall” has been assigned. View the “RetLev” (return level) and “RetBal” (return balance)
settings in the display by touching their dial icons: the value is then displayed in the upper left corner.

2. Press

the

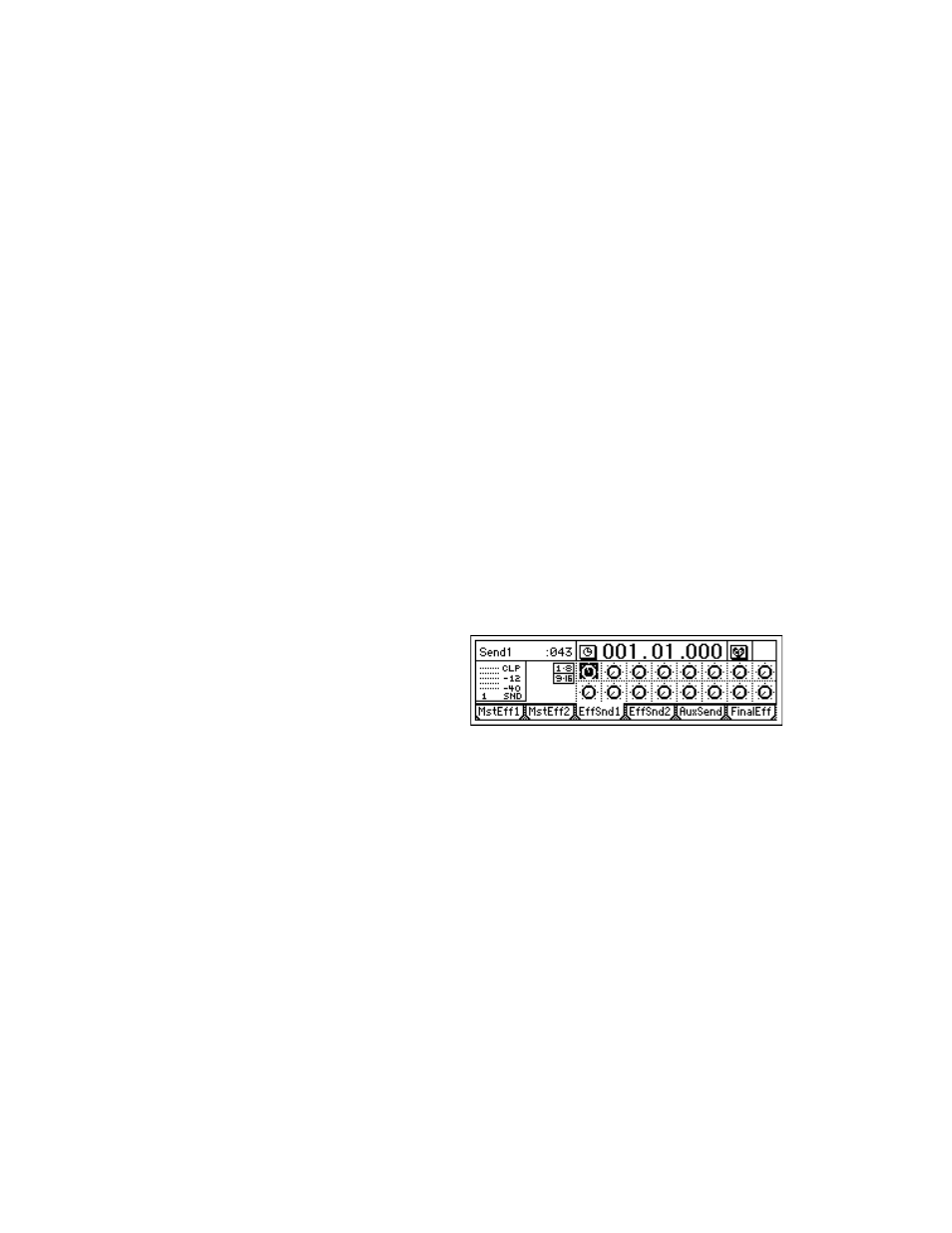

“EffSnd1” tab in the display, and view the send level "knob" icons for each track.

3. Press

the

“MstEff2” tab in the display (“M004 RV4: Dry Plate” has been assigned), and then press the

“EffSnd2” tab to view the send levels.

Set new Master effect send levels:

4. With

playback

stopped, hold the STOP key and press the REW key (or press the TO/LOC3 or

END/LOC4 key) to reset the song to the beginning (these locate keys are currently set to locate to the
beginning of the song).

5. Press

the

PLAY key, and make sure that the Channel faders are raised, and the TRACK STATUS keys

are all lit green (Play status).

6. Press

the

“EffSnd1” tab, and as the song plays, press to select the “knob” icons (or use the CURSOR

keys) and rotate the DIAL to set new send levels for desired tracks to Master effect 1.

Note: Refer to

the Track Layout on page 5, and remember that the upper-left of the display indicates the selected track
and send value.

7. Press

the

“EffSnd2” tab, and set new send levels for desired tracks into Master effect 2.

Tip:

To reset the demo song to the beginning during playback, press the To/LOC3 or END/LOC4 key.

8. When you’ve finished setting new send levels, press the STOP key to stop playback.

Note: Channel Pairing of send levels, EQ, Track Status and more is available for adjacent (odd/even)

channels. For more information, see the D1600 Owner’s Manual, page 38.

Work with the Final effect:

The Final effect is an independent processor with 32 preset and 32 user Final effect programs available. It is
located at the end of the effect routing scheme in the D1600, and is used for "mastering" and dynamics
applications. During mixdown you can use a Final effect to "polish" your mix as you master your work to
external DAT, MD, etc. The assigned Final effect will also be “printed” to tracks (including Virtual tracks)
during bounce recording operations.

Note: Like the Master effects, the demo song includes an already

assigned Final effect.
