ELECTRICAL SYSTEM 14-51
Kawasaki Smart Steering System
Steering Position Sensor Input Voltage Inspection
•
Measure the input voltage to the steering position sensor.
NOTE
○
Be sure the battery is fully charged.
○

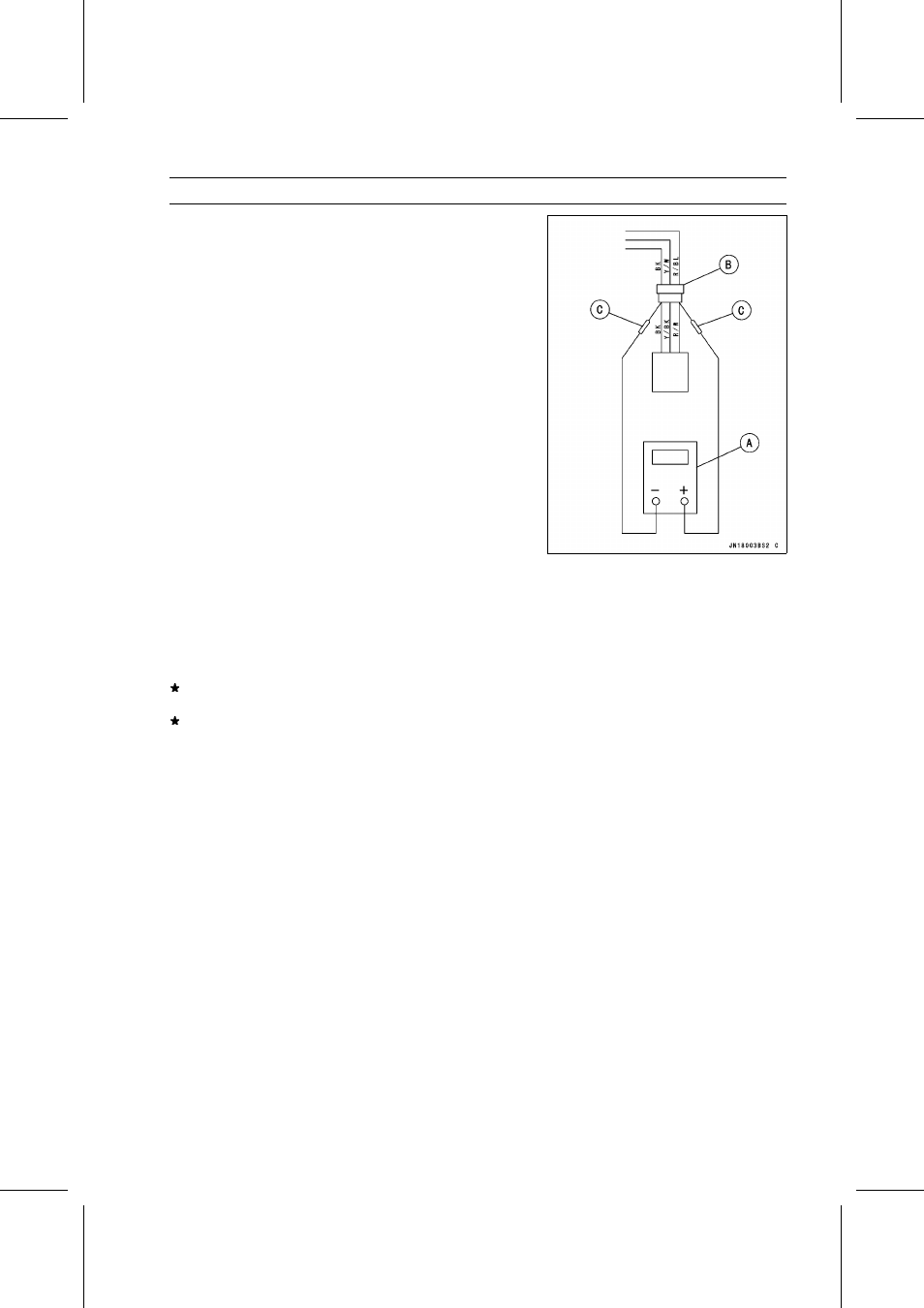

Connect a digital voltmeter [A] to the lead connector [B]
of the steering position sensor using the needle adapter
set [C].
Special Tool - Needle Adapter Set: 57001-1457
Connections to Steering Position Sensor Connector
Meter (+) → R/W Terminal
Meter (–) → BK Terminal
○
Turn the ignition switch ON.
○
Center the handlebar in the straight-ahead position.
○
Measure the input voltage.
Steering Position Sensor Input Voltage
Standard: Battery Voltage
○
Turn the ignition switch OFF.
If the reading is good, inspect steering position sensor
output voltage.
If the reading is out of the standard, check the following.
Battery Voltage
20 A Main Fuse
Power Source Wiring (see Steering Position Sensor Cir-
cuit)
