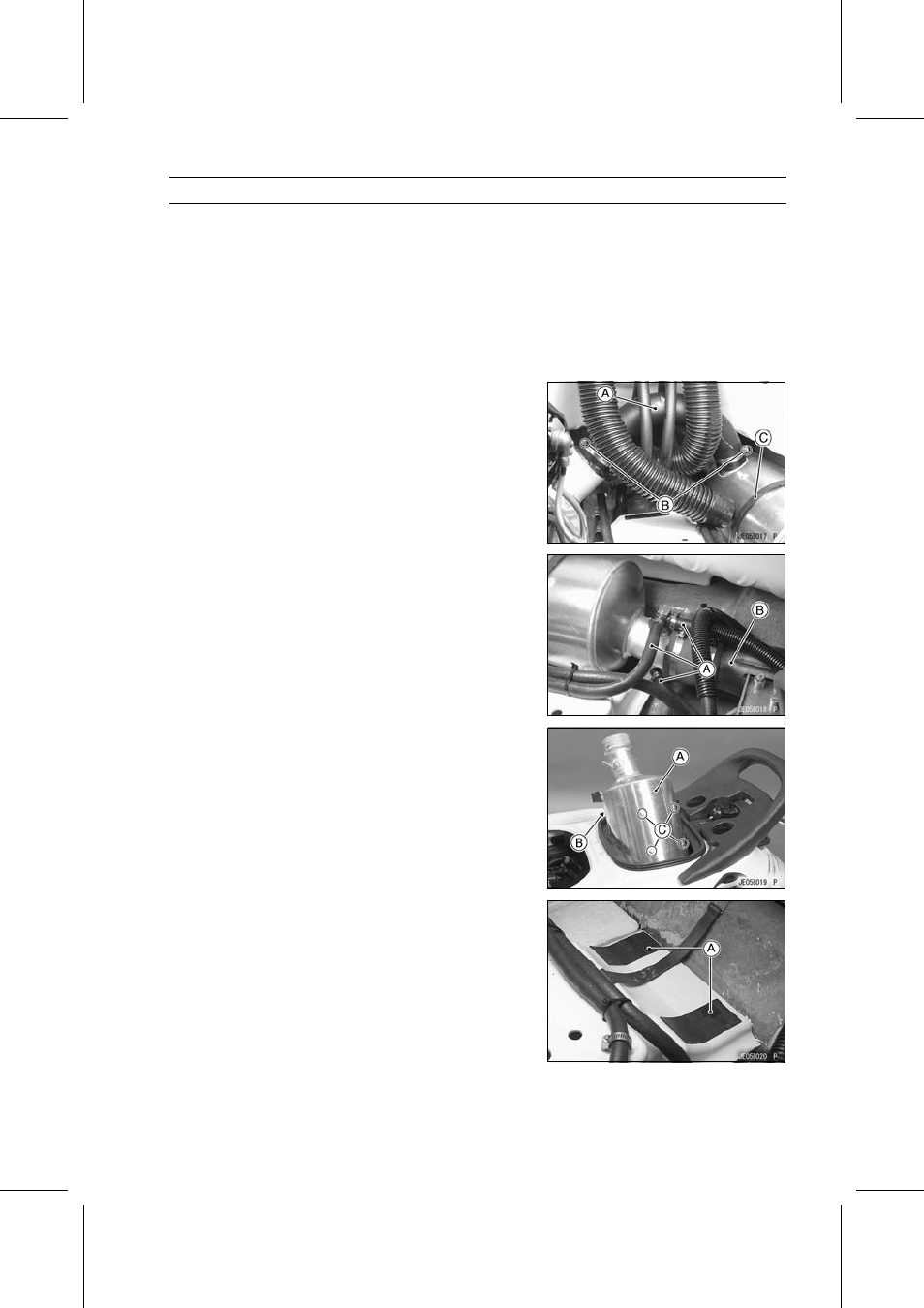

EXHAUST SYSTEM 5-9
Water Box Muffler
Water Box Muffler Removal
•
Remove:
Rear Storage Pocket
Oil Separator Tank with Oil Separator Hoses (see the
Lubrication System chapter)
Air Filter (see the Fuel System chapter)
•
Loosen:
Joint Tube Clamp Screw (see Exhaust Manifold Re-
moval)
•
Remove the front exhaust tube [A] by loosing the clamp
screws [B].
•
Unhook the rubber strap [C] from the left water box muf-
fler.
•
Remove:
Hoses [A]
Exhaust Manifold [B] (see Exhaust Manifold Removal)
•
Remove the left water box muffler by pulling it to the rear.
NOTE
○
When removing the left water box muffler, remove the
water box muffler [A] from the deck with turning it with
the welding spot [B] and rivets [C].
○
Only left side water box muffler should be removed or
inspected.
•
Remove the joint tube from the exhaust pipe.
Water Box Muffler Installation
•
Be sure the dampers [A] on the hull bottom and muffler
body are in place.
