Configuring the conference system
56
Monitoring the frequency ranges – “Quality“
The frequency range monitoring function displays occupied and unused
frequency bands.
̈

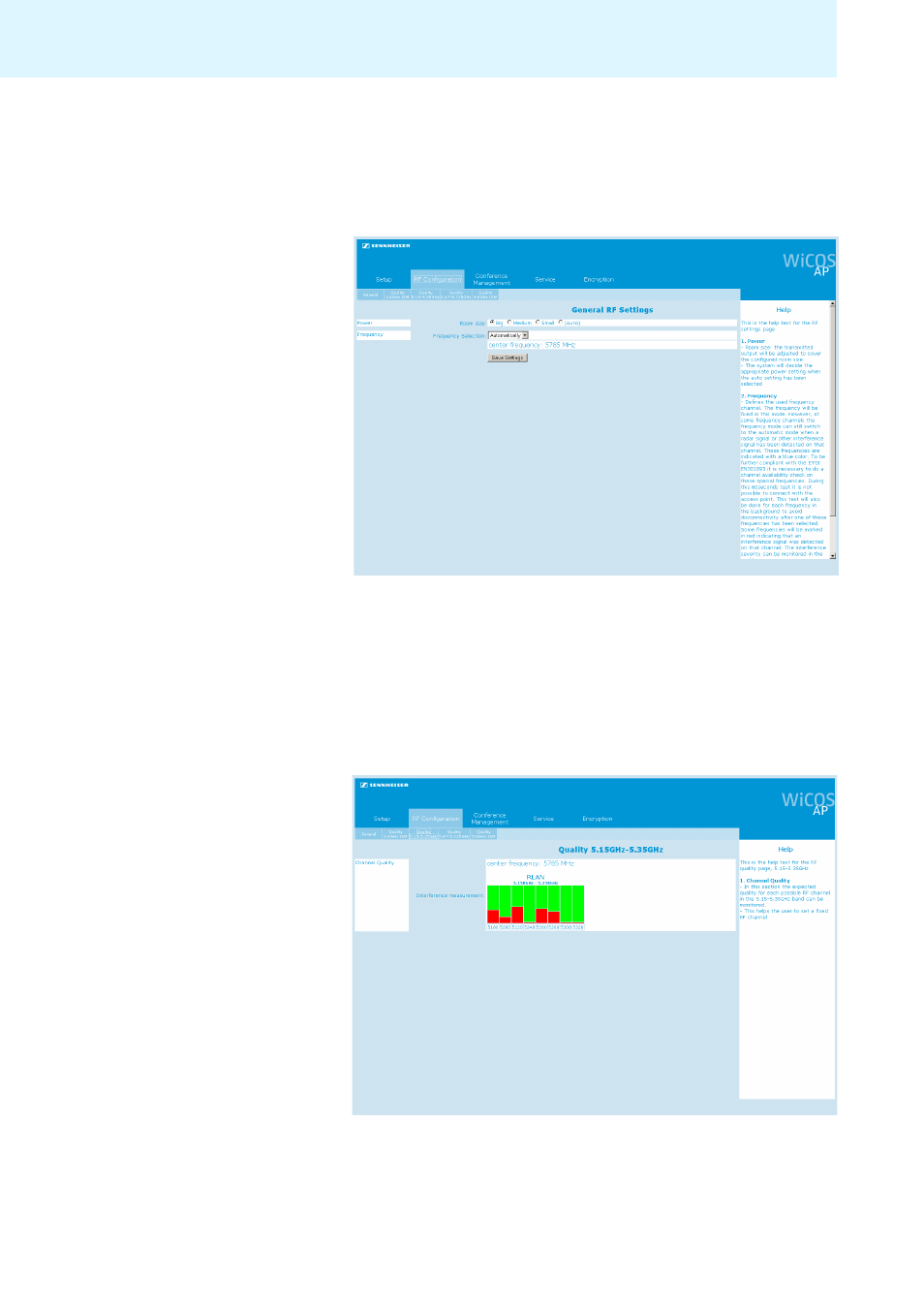

In the main navigation, click “ RF Configuration ”.
The “ General RF settings ” overview screen appears.
̈
Select the overview screen of the desired frequency range:
– “ Quality 2.4 GHz ISM “
– “ Quality 5.15-5.35 GHz “
– “ Quality 5.47-5.725 GHz “
– “ Quality 5.8 GHz ISM “
A bar chart of the selected frequency range is displayed. The colored
bars indicate the currently occupied and/or unused frequencies. The
red deflections indicate the amount of radio traffic.
