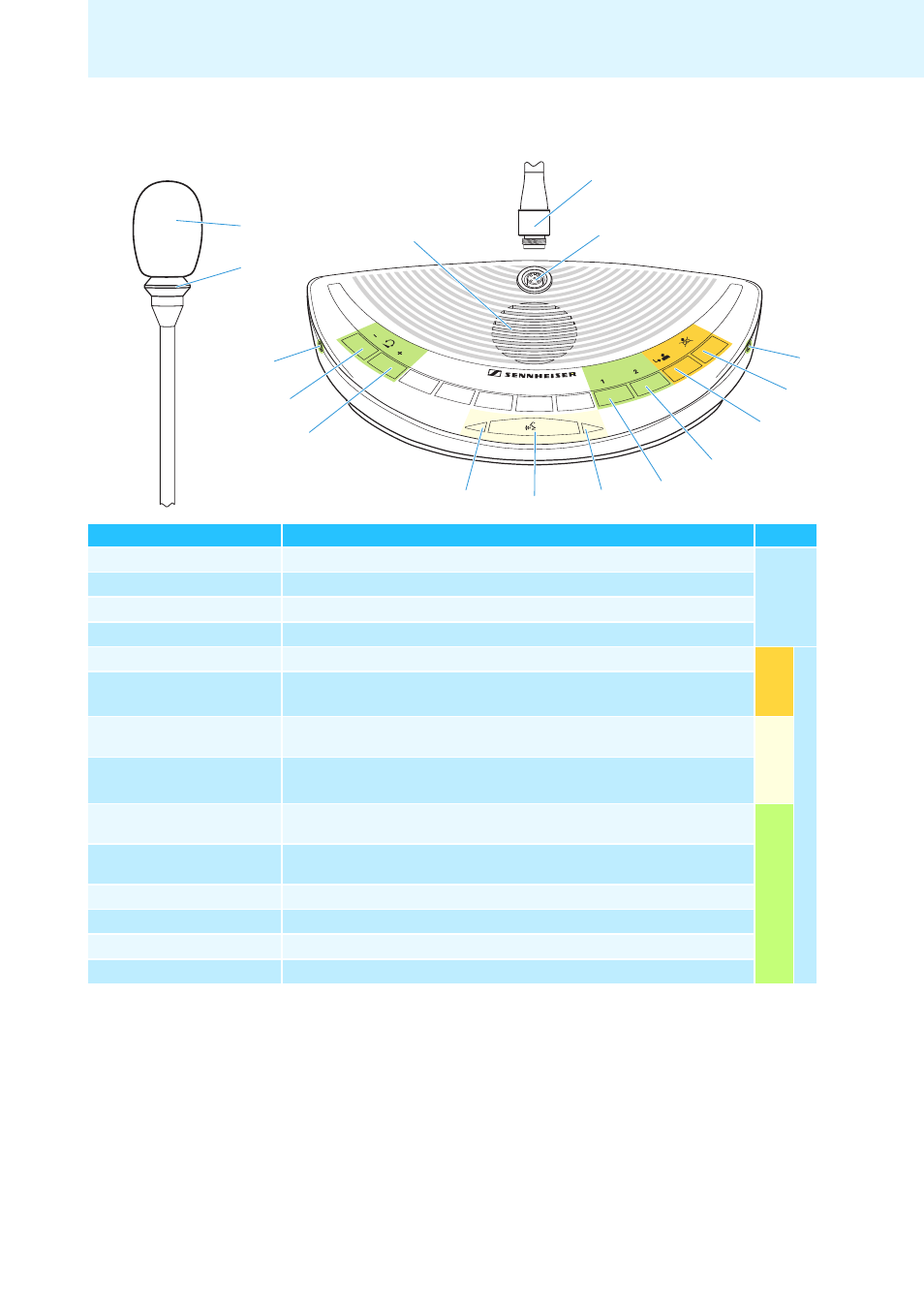

Overview of the components
WiCOS C chairman unit
For an overview of the operating elements at the rear of the conference unit, refer to page 17.
:
A
:
K
3
4
6
5
J
H
I
J
1
2
8
9
Operating element Function/Meaning Group
1 Sound inlet basket for contributing to the discussion
Goosen
ec
k
mi
cr
opho
ne 2 Signal light ring indicates the “speaking right” or a request to speak
3 Coupling ring locks the microphone
4 Microphone socket for connection of the microphone, with indentation for correct orientation
5 Priority key temporarily mutes all conference units or stops the discussion
Chai
rman
fun
ctions
Conference uni
t
6 Next key assigns the “speaking right” to a participant from the request-to-speak list
0 Microphone LED indicates a request to speak, the “speaking right” and the connection status of
the conference unit
Confer
encing
A Microphone key switches the conference unit on/off and controls the microphone
8 Selection key A increases the loudspeaker volume on the conference units, stops a voting
session, controls external media devices (depending on the operating mode)
So
und
o
u
tput
9 Selection key B reduces the loudspeaker volume on the conference units, starts a voting
session, controls external media devices (depending on the operating mode)
H Headphone volume UP increases the headphone volume
I Headphone volume DOWN reduces the headphone volume
J Headphone socket outputs the floor channel to headphones
K Loudspeaker outputs the floor channel
