Page 19
17
Overview of the components

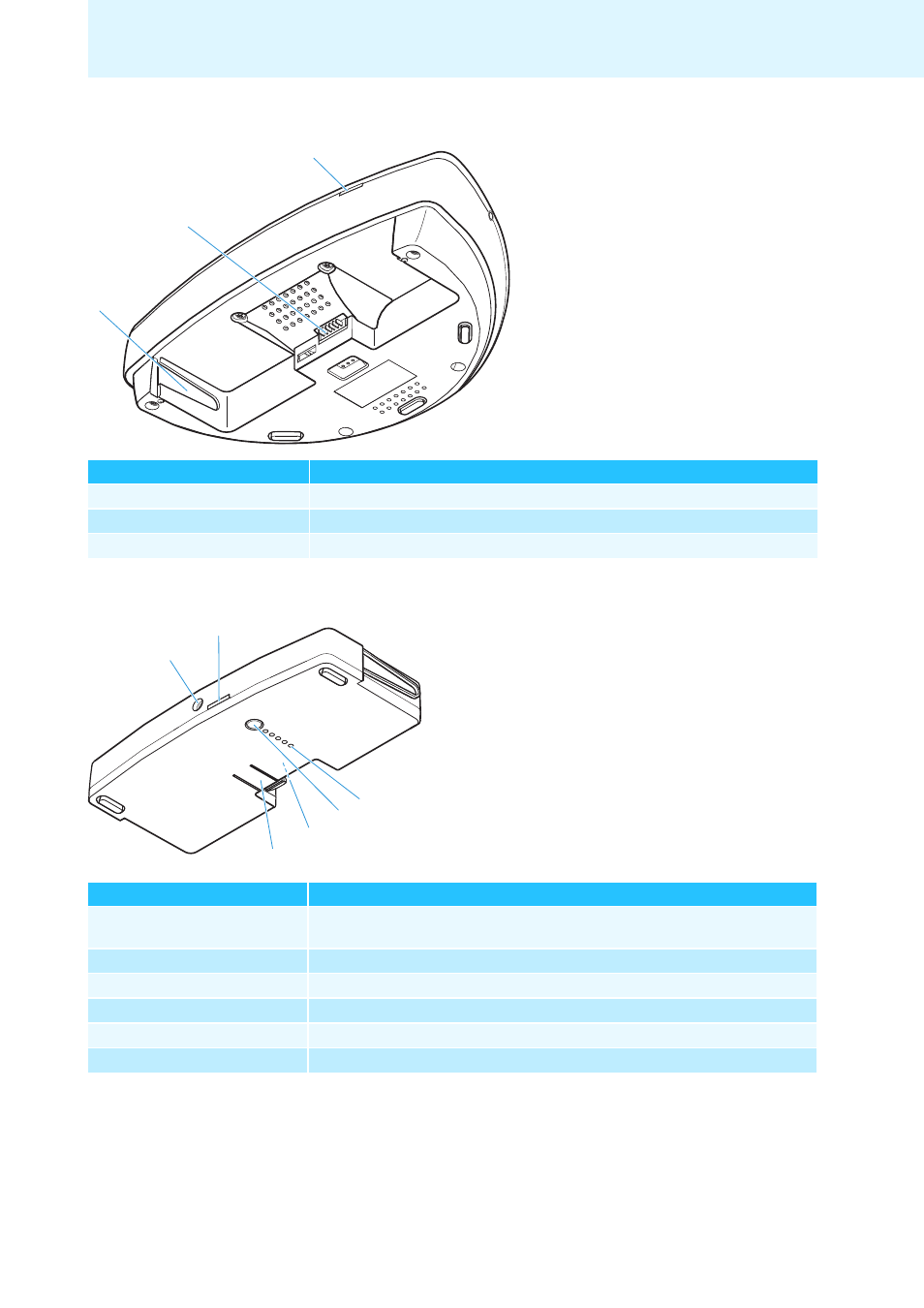

Rear of the conference console
WiCOS BA Lithium-Ion battery pack
V
U
W
Operating element
Function/Meaning
U
RF link indicator
displays the connection status with the access point
V
Battery pack connection
for connection to the WiCOS BA battery pack
W
Battery guide rails
ensure correct insertion of the WiCOS BA battery pack
X
Y
[
Z
]
\
Operating element
Function/Meaning
X
Socket for charging power
supply
for connection of the charging power supply, charges the battery pack and allows
mains operation
Y
Status indicator
displays the charging process and mains operation
Z
Charge status indicator
displays the charge status and the status of the charging electronics
[
Key
activates the charge status indicator
Z
and the charging electronics indicator
\
Contacts
for connecting the battery pack to the conference unit
]
Battery release clip
secures the battery pack against inadvertent detachment from the conference unit
