Chapter 3 Sun StorEdge A3500/A3500FC Configurations 3-3
3.1.1 1x2 Configuration
The 1x2 configuration includes one controller module with two StorEdge D1000 disk
arrays.
Note – The 1x2 configuration is not qualified on the A3500FC controller module.
3.1.1.1 Option Switch
Both disk arrays have split buses. Their option switches should be set as shown in
FIGURE 3-2 .

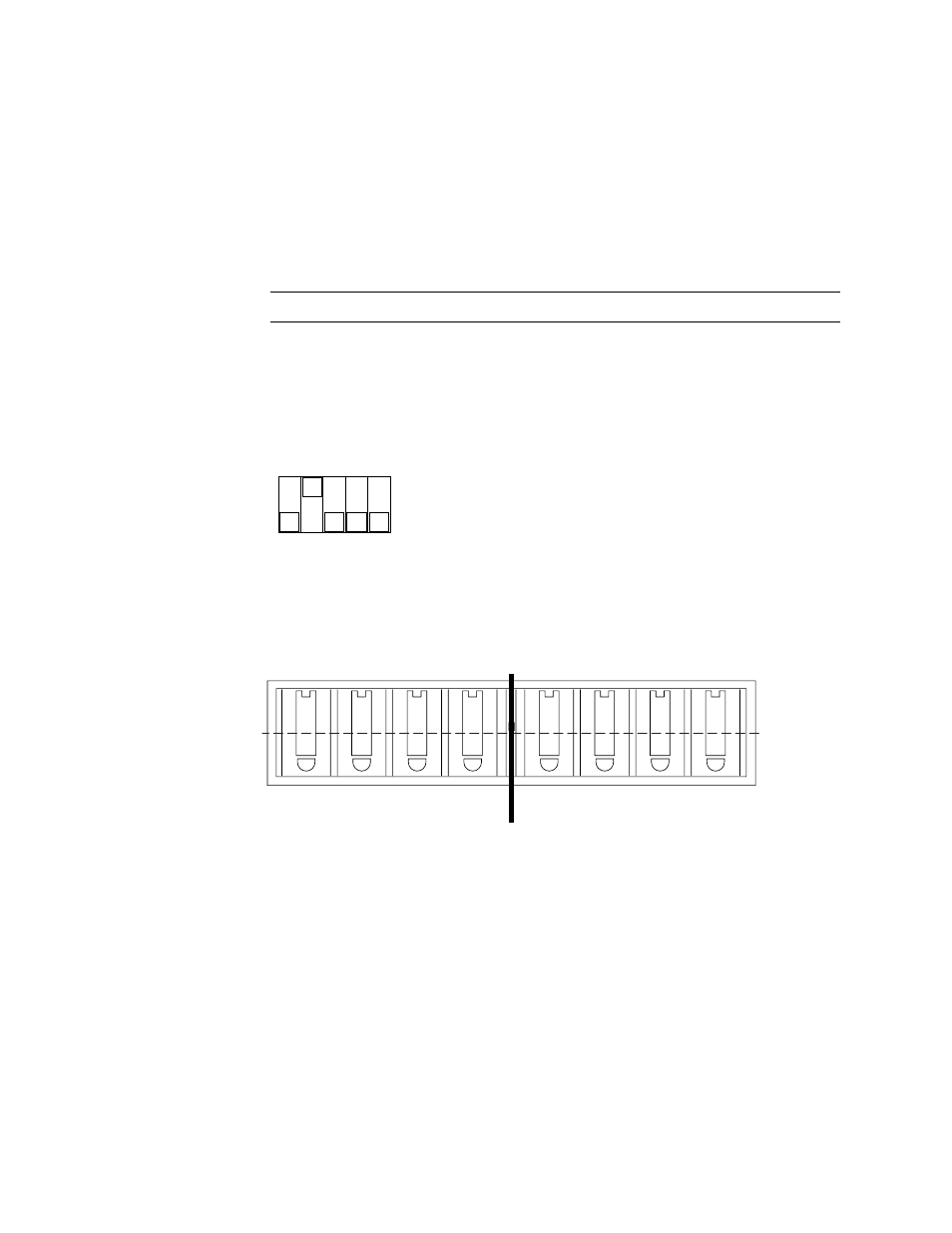

FIGURE 3-2 1x2 Option Switch Settings for StorEdge D1000 Disk Array
This setting will cause the disk drives in the StorEdge D1000 disk arrays to be
numbered as shown in
FIGURE 3-3 and FIGURE 3-4 .
FIGURE 3-3 8-Drive StorEdge D1000 SCSI ID (Split Bus)
5 3 1 2 4
1 2 3 0 1 2 3 0
