Chapter 2 FC-AL Host Connections 2-5
2.2.2 Independent Controller Module Connected to
Two Hosts
FIGURE 2-3 shows one StorEdge A3500FC controller module connected through fibre-
optic cables to two hosts. Refer to the Sun StorEdge RAID Manager Installation and
Support Guide for instructions on setting up independent controller configurations in
the RAID Manager software.

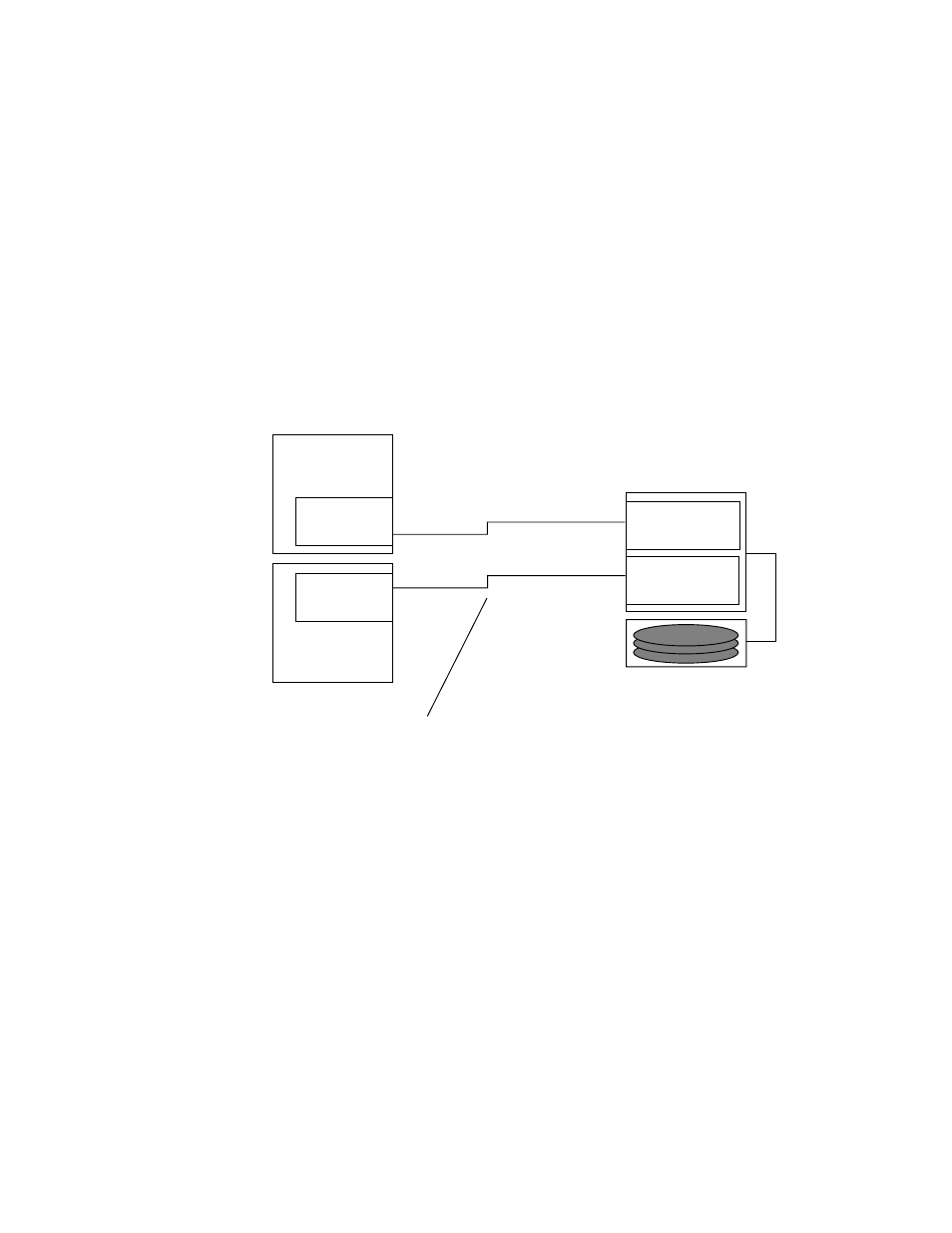

FIGURE 2-3 Independent Controller Module Connected to Two Hosts
Drive tray x 5
SCSI x 5
Controller A
FC-AL port
Controller B
FC-AL port
StorEdge A3500FC controller module
Host adapter
Hosts
Host adapter
Fiber-optic cables
