Chapter 1 SCSI Host Connections 1-3
1.2 Supported SCSI Host Configurations
The illustrations in this section show the SCSI cable connections for the
configurations that are supported by Sun.
■ Single Host Connected to One Controller Module
■ Two Controller Modules Daisy-Chained to One Host
■ Independent Controller Module Connected to Two Hosts
■ Multi-Host
1.2.1 Single Host Connected to One Controller Module
FIGURE 1-1 shows one host connected with SCSI cables to one StorEdge A3500
controller module.

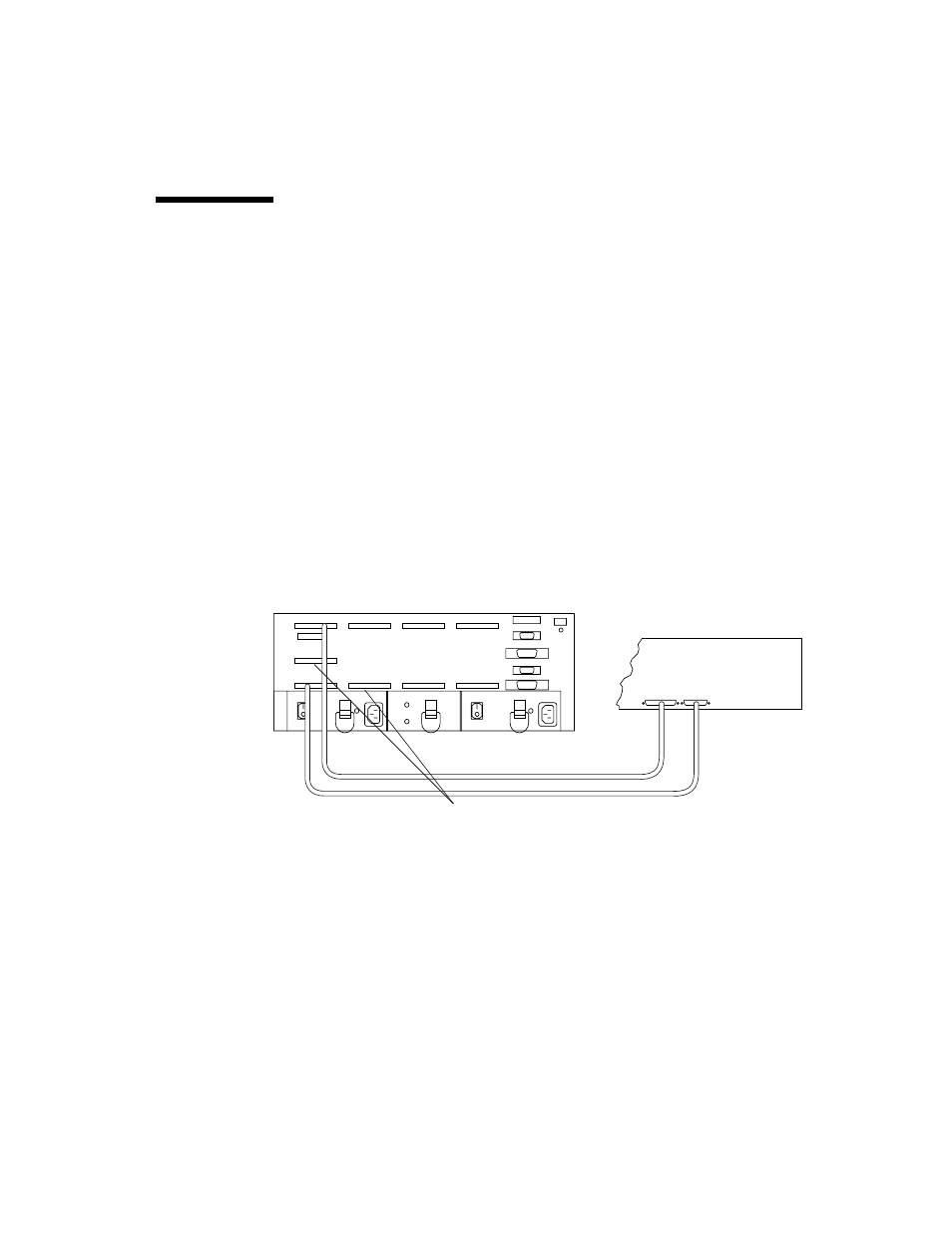

FIGURE 1-1 One Host Connected to One Controller Module
Differential SCSI terminators
Host
StorEdge A3500 Controller Module
