A
DDRESS
T
ABLE
S
ETTINGS
3-123
Web – Click Address Table, Static Addresses. Specify the interface, the
MAC address and VLAN, then click Add Static Address.

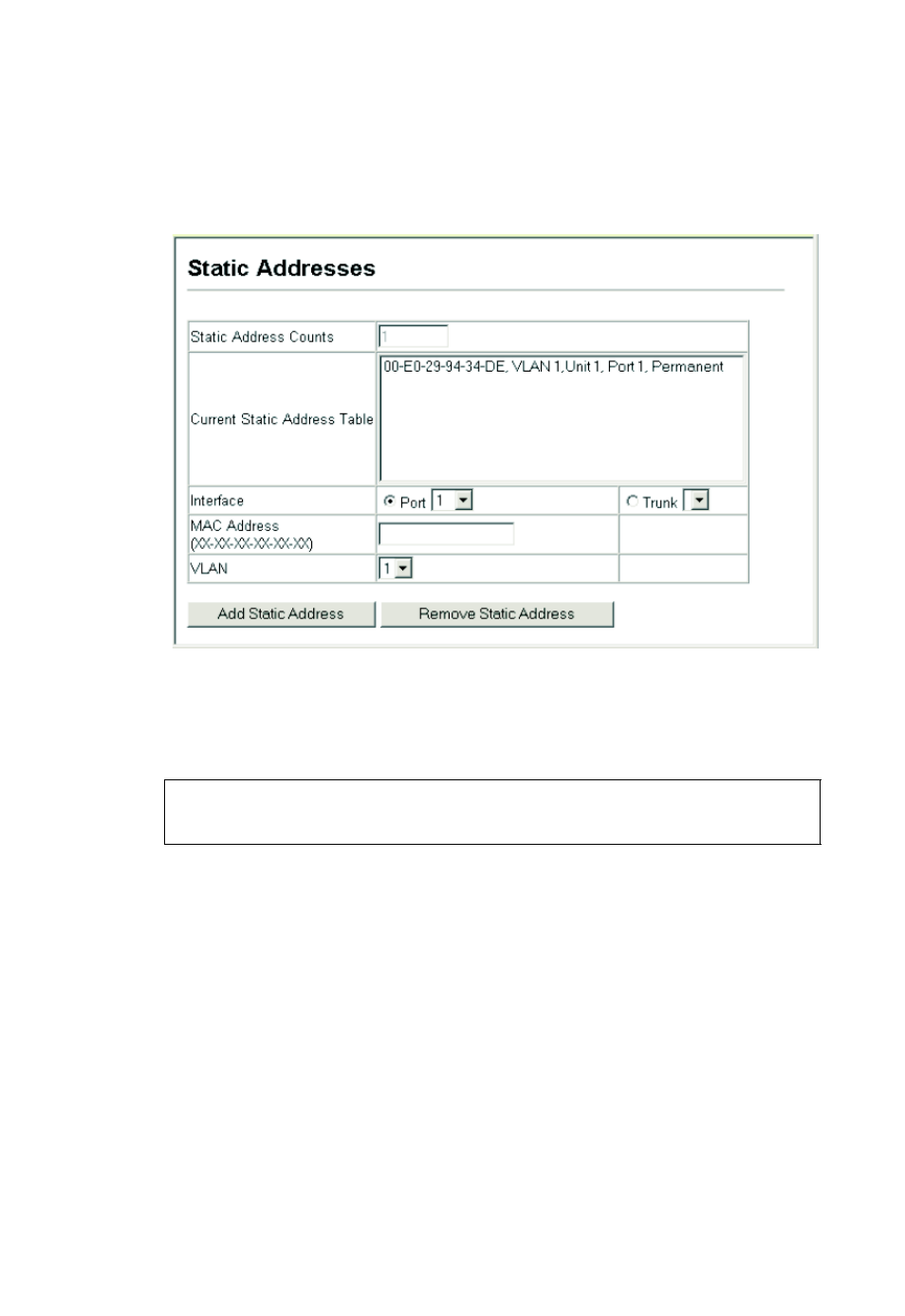

Figure 3-53 Configuring a Static Address Table
CLI – This example adds an address to the static address table, but sets it
to be deleted when the switch is reset.
Displaying the Address Table
The Dynamic Address Table contains the MAC addresses learned by
monitoring the source address for traffic entering the switch. When the
destination address for inbound traffic is found in the database, the
packets intended for that address are forwarded directly to the associated
port. Otherwise, the traffic is flooded to all ports.
Command Attributes
• Interface – Indicates a port or trunk.
Console(config)#mac-address-table static 00-e0-29-94-34-de
interface ethernet 1/1 vlan 1 delete-on-reset 4-179
Console(config)#
