SMC Networks TigerSwitch - Manual (Page 131)

A
CCESS
C
ONTROL
L
ISTS
3-81
Web – Specify the action (i.e., Permit or Deny). Select the address type
(Any, Host, or IP). If you select “Host,” enter a specific address. If you
select “IP,” enter a subnet address and the mask for an address range. Then
click Add.

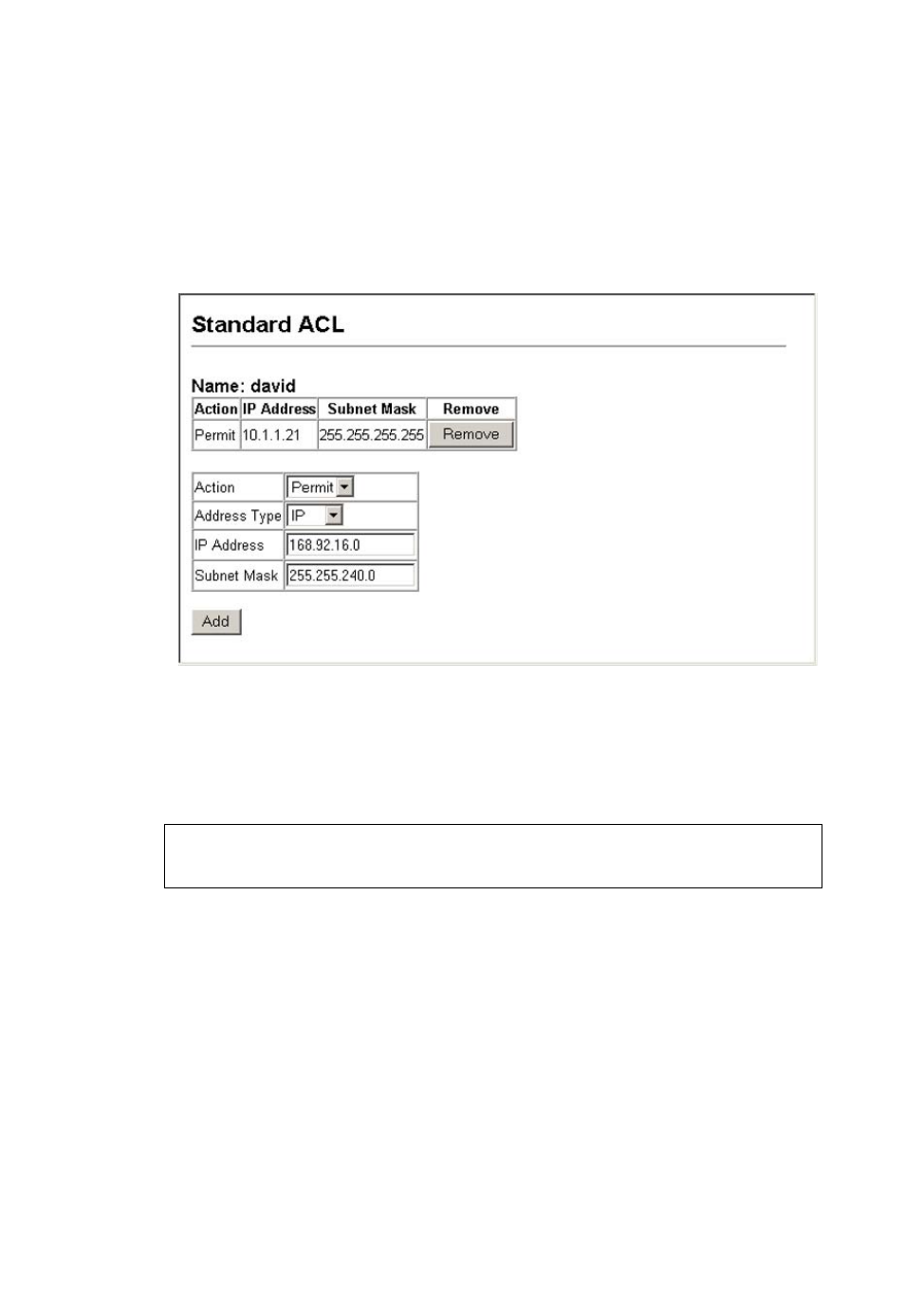

Figure 3-36 ACL Configuration - Standard IP
CLI – This example configures one permit rule for the specific address
10.1.1.21 and another rule for the address range 168.92.16.x – 168.92.31.x
using a bitmask.
Configuring an Extended IP ACL
Command Attributes
• Action – An ACL can contain any combination of permit or deny
rules.
• Source/Destination Address Type – Specifies the source or
destination IP address. Use “Any” to include all possible addresses,
“Host” to specify a specific host address in the Address field, or “IP”
Console(config-std-acl)#permit host 10.1.1.21 4-122
Console(config-std-acl)#permit 168.92.16.0 255.255.240.0
Console(config-std-acl)#
