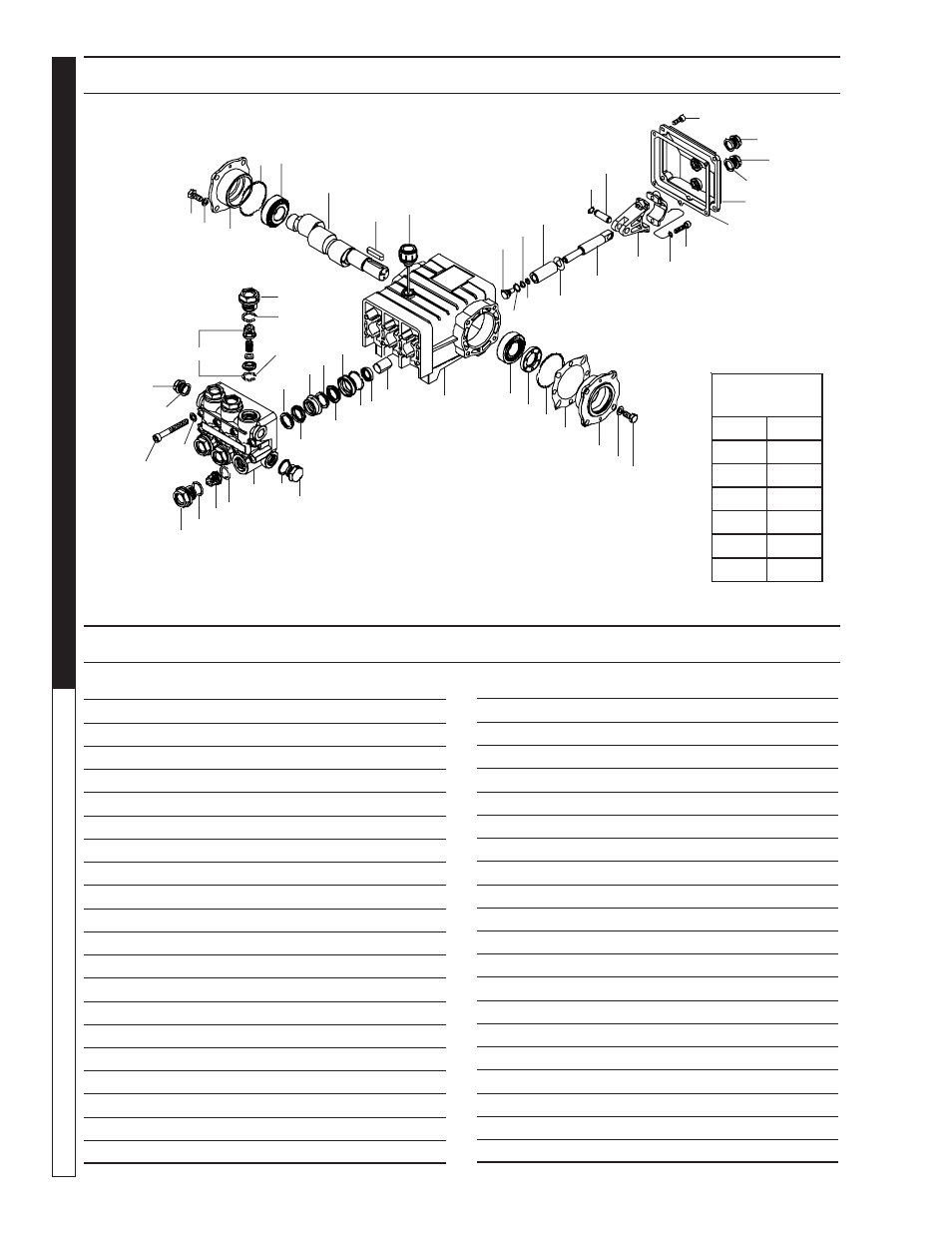

M PUMP EXPLODED VIEW AND PARTS LIST
15
5
4
3
2
1
5
7
8
7
6
12
13
14
11
9
10
16
17
18
19
15
14
12
25
26 27
28
29
30
24
17
34
36
37
38
39
40
41
42
43
35
44
45
27
31
26
32
33
17
24
51
50
49
48
47
46
13
ITEM PART NO. DESCRIPTION QTY
1 70-020209 Crankcase 1
2 70-060201 Plunger Guide 3
3* See Kits Below Plunger Oil Seal 3
4* 70-060107 O-Ring Ø1.78 x 31,47 3
5* See Kits Below "V" Seal 6
6* 70-120106 Pressure Ring 18mm 3
7* 70-030007 Support Ring 18mm 6
8* 70-030011 Intermed. Ring 18mm 3
9 70-160120 Brass Plug 1/2" 1
10 70-060307 Copper Washer 1/2" 1
11 70-160216 Manifold Head 1
12* 70-060119 O-Ring Ø2.62 x 17.13 6
13* See Kits Below Valve Assembly 6
14* 70-060165 O-Ring Ø2.62 x 20.29 6
15 70-160130 Valve Plug 6
16 70-180103 Manifold Stud Bolt 8
17 70-140001 Washer 16
18 70-060306 Copper Washer 3/8 1
19 70-160117 Brass Plug 3/8 1
24 70-180203 Hexagonal Screw 8
E U Q R O T
S C E P S
# m e t I s b l - . t F
5 1 5 7
6 1 2 2
4 2 8
4 3 9
5 4 3 1
1 5 8
4035
M PUMP EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
25 70-050051 Closed Bearing Housing 1
26 70-060163 O-Ring Ø1.78 x 60.05 2
27 70-020003 Tapered Roller Bearing 2
28 70-000486 Crankshaft (4030,4035/H) 1
29 70-020604 Crankshaft Key 1
30 70-160006 Oil Dip Stick 1
31 70-000102 Crankshaft Seal 1
32 70-030102 Shim 2
33 70-050050 Bearing Housing 1
34* 70-180001 Plunger Bolt 3
35* 70-140012 Copper Spacer 3
36* 70-060103 O-Ring Ø1.78 x 7.66 3
37* 70-000904 Teflon Ring 3
38* See Kits Below Plunger (4035, 4035H) 3
39* 70-140015 Copper Spacer 3
40 70-000301 Plunger Rod 3
41 70-010001 Connecting Rod 3
42 70-150001 Snap Ring 6
43 70-150201 Connecting Rod Pin 3
44 70-140102 Spring Washer 6
