97-6068, 97-6131 • REV. 3/06
49
PRESSURE
W
ASHER
OPERA
T
OR’S MANU
AL
4 2 1 T I K
G N I R - O / E V L A V K C E H C
4 6 T I K
L A E S L I O R E G N U L P
8 6 T I K
Y S S A S S A R B / G N I K C A P
3 7 T I K
Y L N O G N I K C A P
T I K
N W O D K A E R B
# T R A P 4 2 1 - 5 1 4 6 - 5 1 8 6 - 5 1 3 7 - 5 1
. S C P L A T O T 2 1 3 1 2 5 1
POS
NO. PART NO. DESCRIPTION KIT
NO.
PCS.
1 15-040119282 Pump Head (D.15) 1
2 15-803182002 O-Ring Dia. 2.62 x 17.13 124 6
3 15- 049887973 Check Valves 124 6
4 15-803182002 O-Ring Dia. 2.62 x 17.13 67 6
5 15-070040532
Ex. Deep Sealing Valve Cap
M27x1.5
67 6
6 15-040114322 Valve Guide 124 6
7 15-040330512 Valve Spring 124 6
8 15-060068512 Valve 124 6
9 15-040023512 Valves Assembly Seat 124 6
10 15-862945002 Screw M8x60 UNI 5931 6
11 15-824140002 Gasket for Coupling 21.2 x 26 x 1 1
12 15-852629002 Plug G 1/2" 1
13 15-852579002 Plug G 3/8 1
14 15-824109002 Copper Gasket Dia. 17 x 22 x 1 1
15 15-040270322 Seal Packer 68, 73 3
16 15-802020002 Packing D.15 68, 73 3
17 15-040269322 Anti-Extrusion Ring 68, 73 3
18 15-040268532 Front Gland 68 3
19 15-802034002 U Pressure Seal Dia. 15x22x5.5 68, 73 3
20 15-040166532 Packing Retainer 68 3
21 15-803073002 O-Ring Dia. 23.52 x 1.78 68, 73 3
22 15-040110092 Crankcase 1
23 15-812725002 Bearing Riv 6B 25 1
24 15-802101002 Cap RCA 6210 80 1
25 15-050045612 Crankcase Cover 1
POS
NO. PART NO. DESCRIPTION KIT
NO.
PCS.
26 15-062108002 Screw, M6 x 16 UNI 5931 4
27 15-049832973 Filler Plug 1
28 15-801184002 Ring 1
29 15-040120322 Oil Sight Glass 1
30 15-803189002 O-Ring Dia. 2.62x18.72 1
31 15-803210682 O-Ring D.2.62x120.32 1
32 15-040117092 Rear Cover 1
33 15-862168002 Galvanized Screw M6x22 UNI 5931 4
34 15-803057002 O-Ring 2037 - 39.34x2.62 1
35 15-852543502 Cap G. 1/4 x 9 (EX 852542002) 1
36 15-814561002 Stainless Steel Nut M8 UNI 5589 3
37 15-843642902 Washer Dia. 8.1x14x1 3
38 15-040010182 Ceramic Piston Dia. 15mm 3
39 15-803049002 O-Ring Dia. 1.78x5.28 3
40 15-843726002 Washer Dia. 9.1x24x1 3
41 15-802035002 Oil Seal Dia. 15x24x5 64 3
42 15-040107512 Plunger Rod 3
43 15-852003002 Piston Pin Dia. 8x25 3
44 15-040116112 Bronze Conrod 3
45/1 15-040127262 5/8" Hollow Crankshaft E= 2.4 1
45/2 15-040141262 5/8" Hollow Crankshaft E=3.6 1
15-040155262 Hollow Crankshaft 3/4" E=4.3 1
46 15-812750002 Ball Bearing 30x62x16 1
48 15-040330092 Motor Flange Nema 56/C 1
49 15-862168002 Galvanized Screw M6x22 UNI 5931 4
50 15-802125502 Shaft Oil Seal 1
5-1618
5-1621

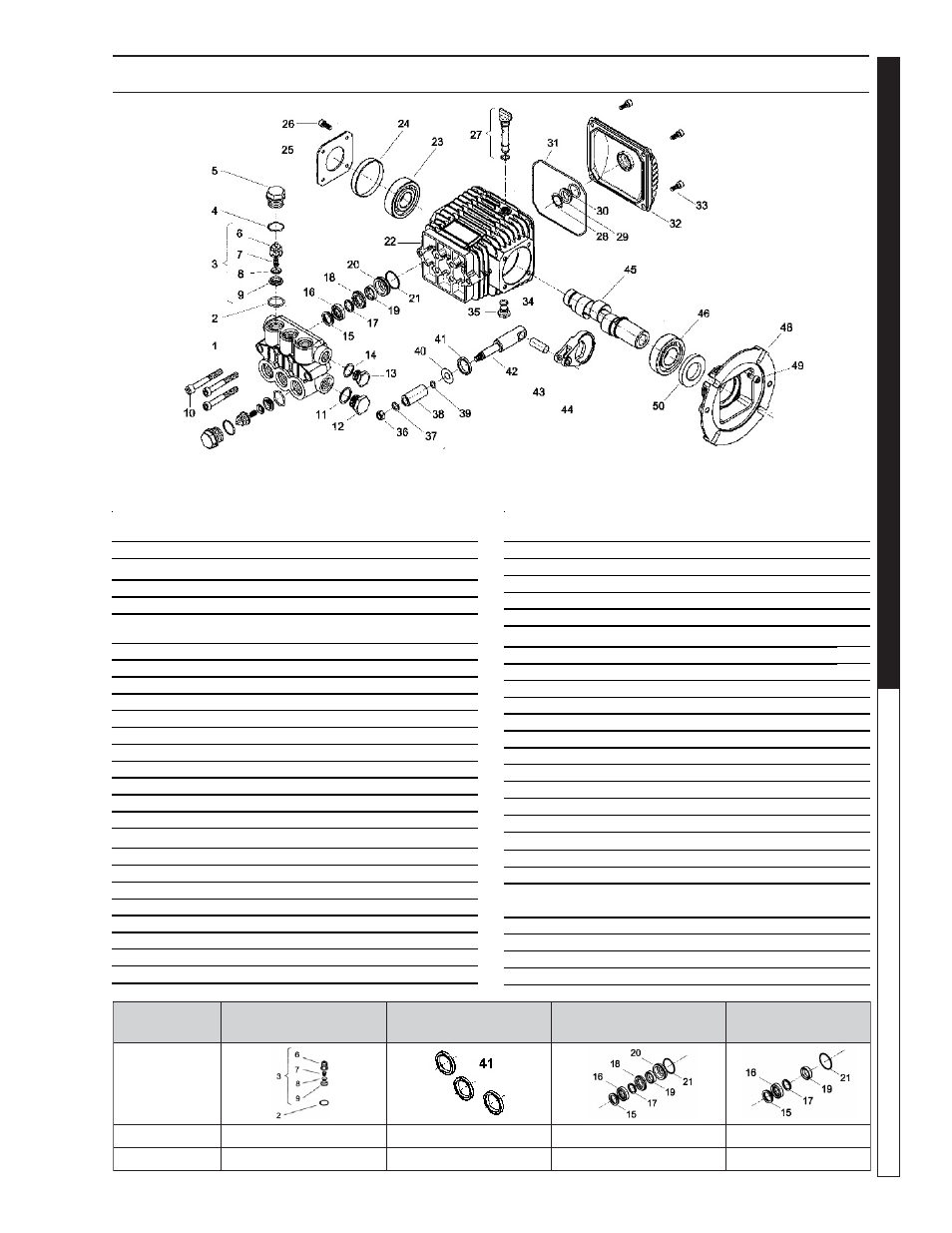

WMH-F PUMP EXPLODED VIEW
