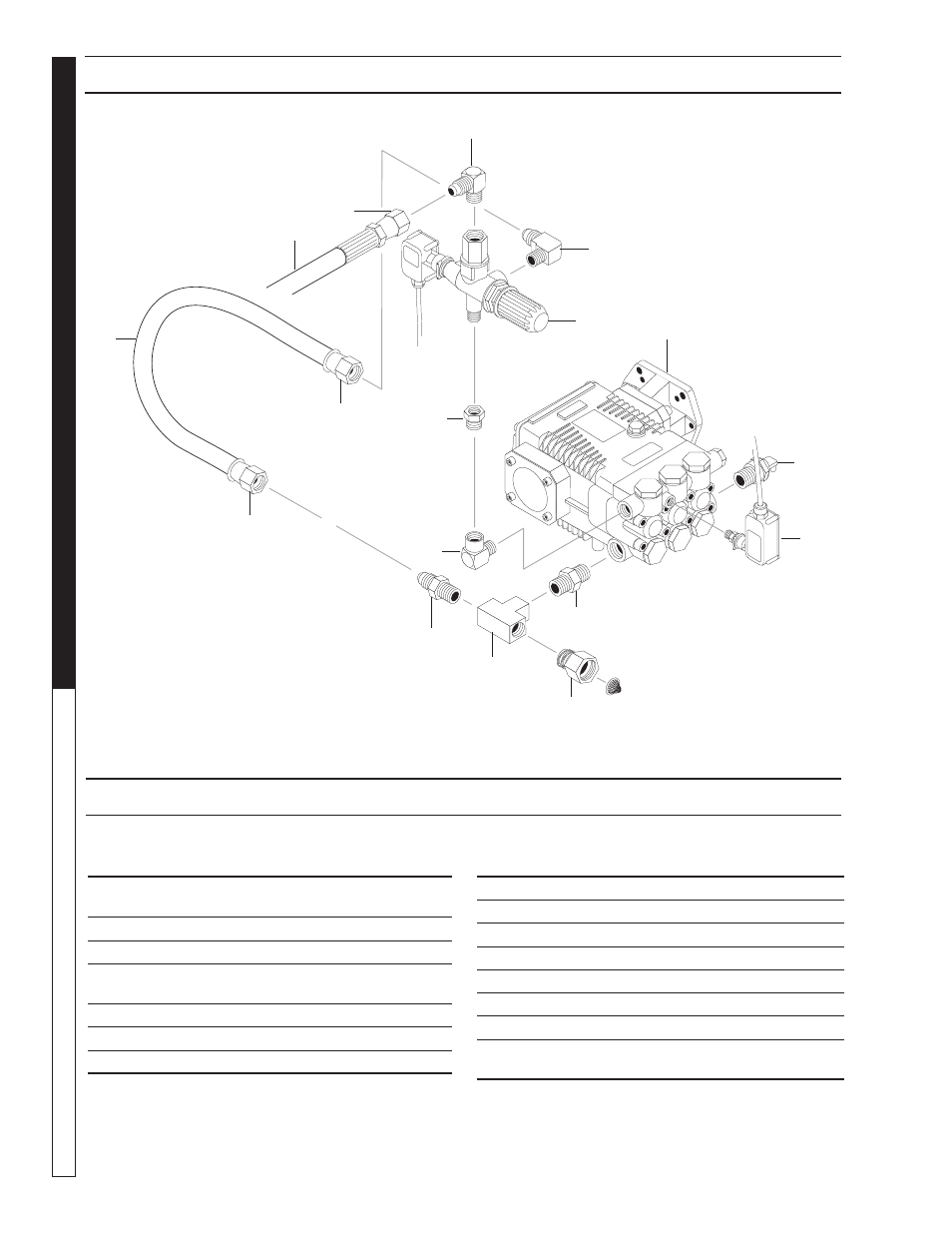

AUTO START/STOP OPTIONS - 2015, 3520
AUTO START/STOP OPTIONS - 2015, 3520 PARTS LIST
ITEM
PART NO.
DESCRIPTION
QTY
1
2-10942
Swivel, 1/2" MP x 3/4"
GHF w/Strainer
1
2
2-1032
Tee, 1/2" Female Pipe
1
3
2-1007
Nipple, 1/2" Hex
1
4
2-1053
Nipple, 1/2" JIC x 1/2"
MPT Pipe
1
5
2-1105
Swivel, 1/2" JIC Fem, Push-on 2
6
4-02110000
Hose, 1/2" Push-on
16 in
7
2-0053
Elbow, 1/2" JIC, 3/8"
1
ITEM
PART NO.
DESCRIPTION
QTY
8
2-1060
Elbow, 1/2" JIC x 3/8"
1
9
5-3027
Unloader, VB8 w/Switch
1
10
Pump, Please See Specifications Pages
11
2-30082
Pump Protector, 1/2"
1
12
6-021720
Switch, Pressure 1/4" NPT
1
13
2-0031
Elbow, 3/8" Street
1
14
2-0074
Adapter, 3/8" x 3/8" Street
1
15
4-02047729
Hose, 3/8" x 29", Pressure
Loop
1
6
7
5
8
9
10
11
12
1
2
4
13
14
15
5
3
5
