Pressure w asher – Shark HPB-3520 User Manual
Page 30
97-6068, 97-6131 • REV. 3/06
OPERA
T
OR’S MANU
AL
PRESSURE W
ASHER
30
PUMP OFF
BURNER
THERMOST
AT
25°
GREEN
40°
WHITE
0°
RED
15°
YELLOW
THERMOST
ATO
/THERMOST
AT
OPERA
TION
OFF
200
1
6
5
1
3
0
9
5
235
27
0
3
0
0
GR
OU
ND
7
17
9
8
10
4
14
12
3
15
2
1
16
6
13
3
4,11
5
18
(Reversed
View of Label)
ITEM
PART NO.
DESCRIPTION
QTY
1
10-08021
Label, Disconnect Pwr Supply 1
2
90-1991
Screw, 10/32" x 1/2" NHSOC,
Black
4
3
6-020201
Switch, 3 PS, 115V-230V,
1PH
1
4
4-05088
Thermostat, Adjustable,
302°F
1
5
90-1994
Screw, 10/32" x 1-1/4" RH, SL,
Blk
1
6
6-05152
Strain Relief, STRT, LQ TITE
3231, Small
3
7
6-051532
Strain Relief, STRT, LQ TITE
w/Gasket
1
8
4-12804000
Nozzle, SAQCMEG 0004,
Red
1
4-12804015
Nozzle, SAQCMEG 1504,
Yellow
1
4-12804025
Nozzle, SAQCMEG 2504,
Green
1
4-12804040
Nozzle, SAQCMEG 4004,
White
1
ITEM
PART NO.
DESCRIPTION
QTY
9
2-0103
Grommet, Rubber,
Nozzle Holder
4
10
11-0318
Label, Control Panel, Mini
1
11
6-01270
▲ Conduit, 1/4" Split
36"
12
6-05181B
Locknut, 3/4" 8465
1
13
9-2018
Nut, Cage, 10/32" x 16 GA
4
14
6-05181A
Locknut, 1/2" 8463
3
15
90-017
Nut, 10/32" Keps
4
16
95-07102246
Electric Box Cover, Mini
1
17
2-01403
Bushing, Snap, 5/8"
1
18
11-1042
Label, Ground
1
19
9.800-049.0
Label, Cleaning Solution
1
20
9.800-018.0
Label, Tipover Hazard
1
▲ Not Shown

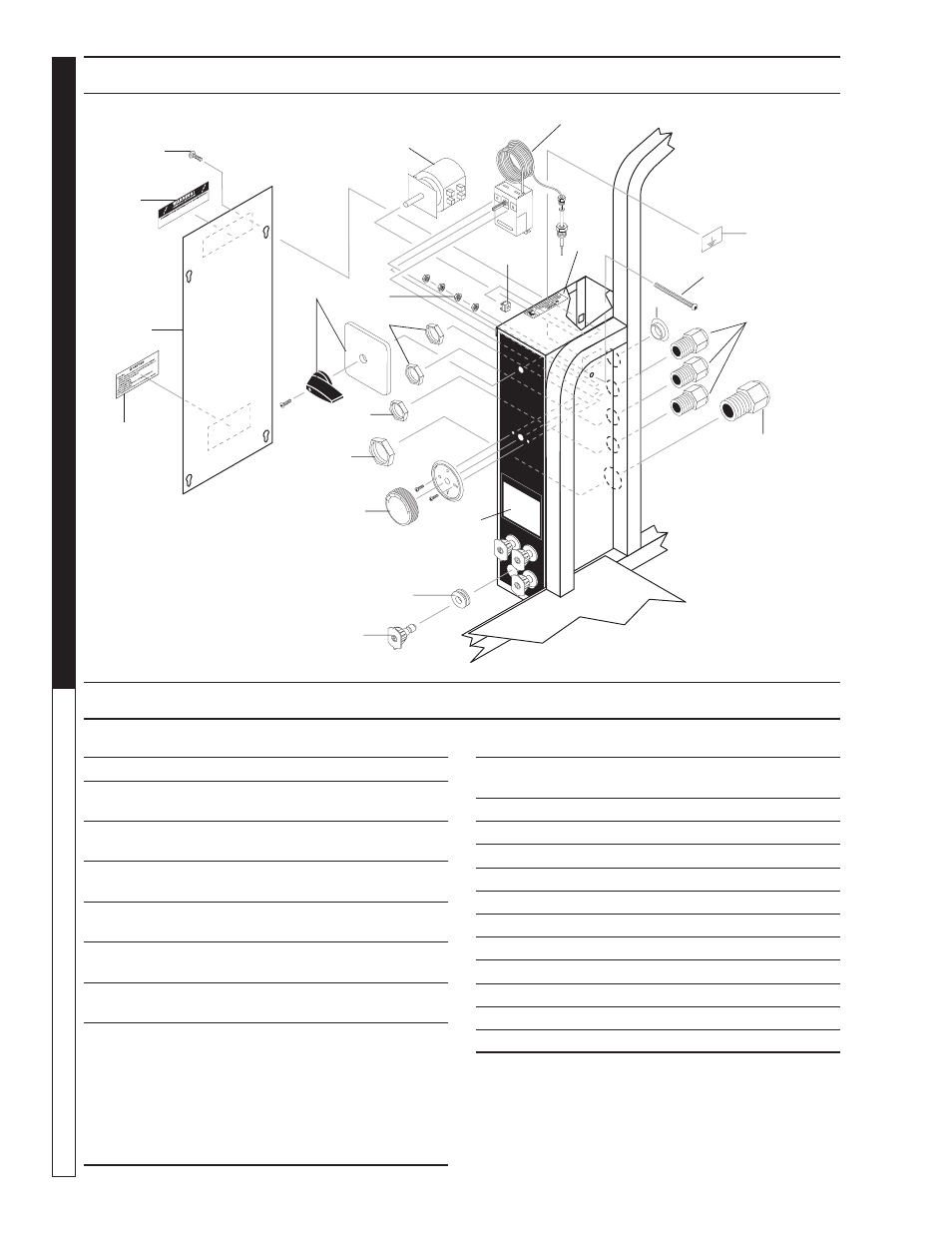

CONTROL PANEL - 2011
2011 CONTROL PANEL PARTS LIST
19
20
14
