ITEM PART NO. DESCRIPTION QTY
1 6-020240 Switch, Rocker, Carling
w/Green Lens
2
(Time Delay Option) 1
6-020241 Switch, Rocker, Red (Time
Delay Option)
1
2 6-01270 ▲ Conduit, 1/4" Split 4 ft.
3 Fuse, Please See Specifications Pages
4 Fuse, Please See Specifications Pages
5 Transformer, Please See Specifications Pages
6 Contactor Overload, Please See Spec’s Pages
1
1
27
3
4
5
6
9
10
11
8
2, 8
14
18
16
15
17
20
12
13
13
19
21
7
22
23
25
22
24

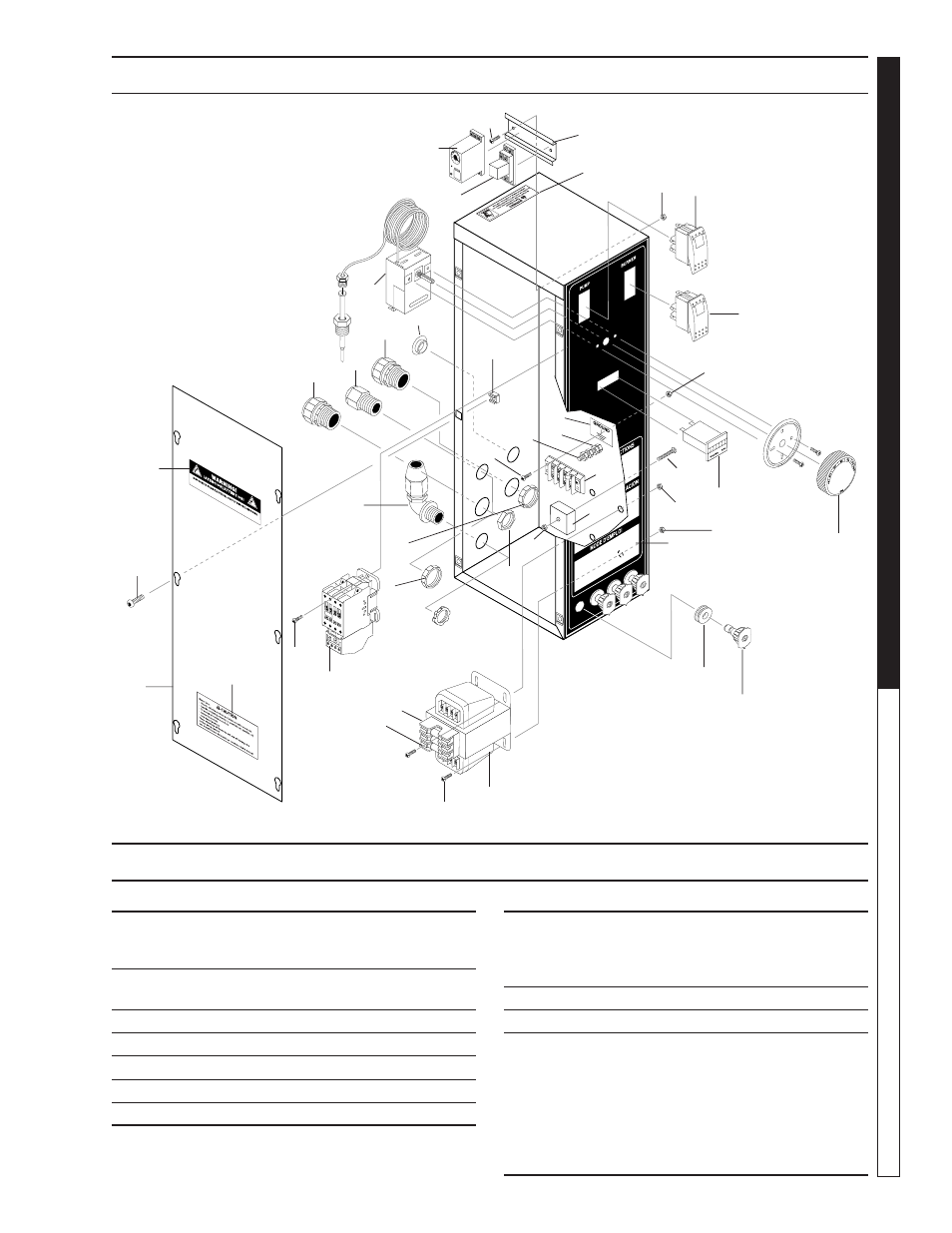

CONTROL PANEL - 3530, 4020
3530, 4020 CONTROL PANEL PARTS LIST
ITEM PART NO. DESCRIPTION QTY
7 6-051595 Strain Relief, STRT, L/T,
(4020) LG
1
6-05170 Strain Relief, 3/4" Watertight
(3530)
1
8 4-05088 Thermostat, General 302° 1
9 4-050822 Hour Meter (Optional) 1
10 4-12805500 Nozzle, SAQCMEG 0055, Red
(4020)
1
4-12805515 Nozzle, SAQCMEG 1505.5,
Yellow (4020)
1
4-12805525 Nozzle, SAQCMEG 2505.5,
Green (4020)
1
4-12805540 Nozzle, SAQCMEG 4005.5,
White (4020)
1
26
17
32
34,35
13
33
17
17
16
31
29
28
17
30
13
