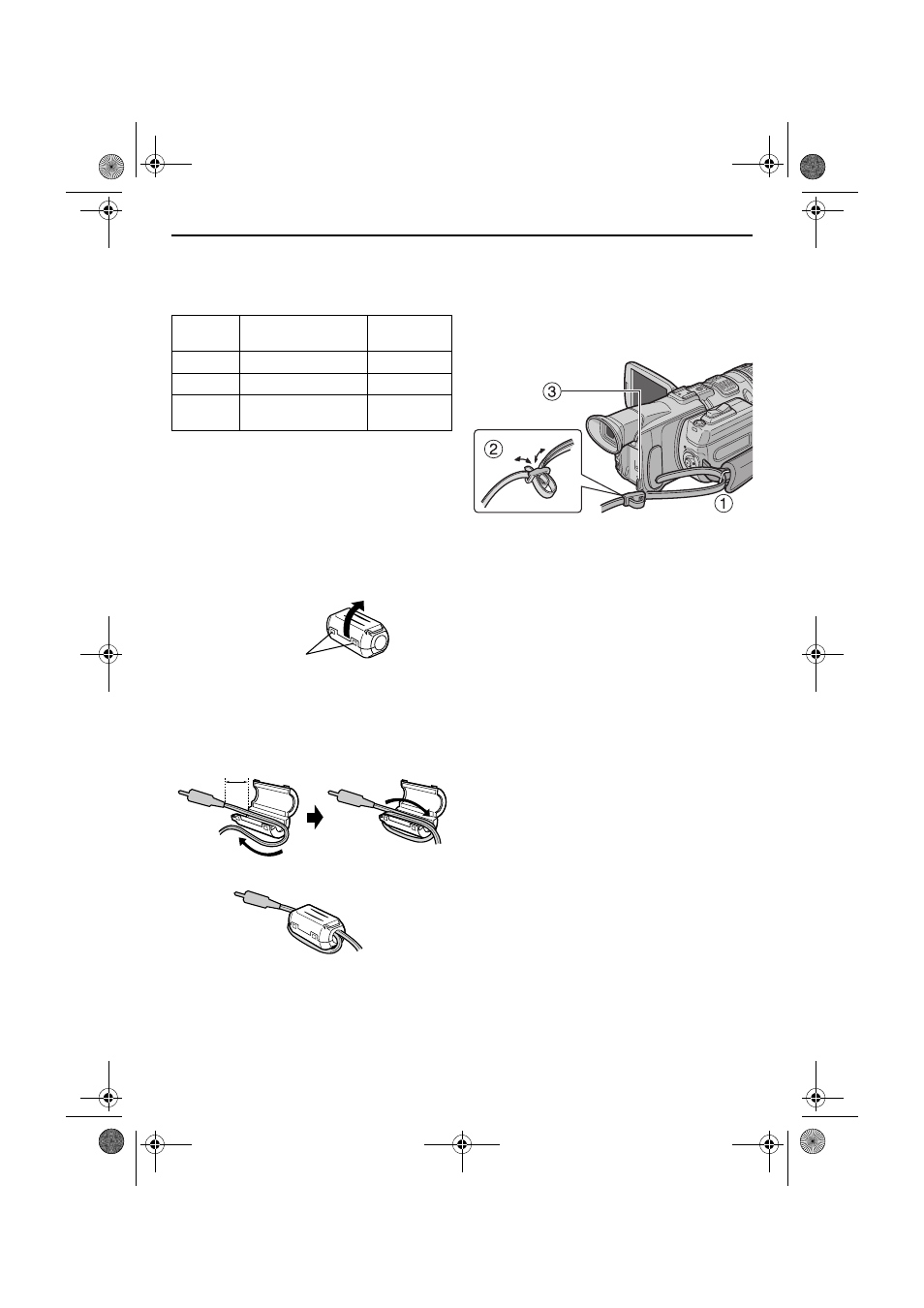

How To Attach The Core Filter
Attach the core filters to the cables. The core filter
reduces interference.
Types of core filters
* Optional
(If you have an optional JVC i.LINK cable
VC-VDV206U or VC-VDV204U with core
filters, it is not necessary to attach the provided
core filter. If you are going to use any other
i.LINK cable, attach the provided core filter.)
** Attach two core filters to both ends of the cable.
The procedure below is an example of winding
cable once.
1
Release the stoppers on both ends of the core
filter.
2
Run the cable through the core filter, leaving
approx. 3 cm of cable between the cable plug
and the core filter. Wind the cable once around
the outside of the core filter as shown in the
illustration.
● Wind the cable so that it is not slack.
3
Close the core filter until it clicks shut.
NOTES:
● Take care not to damage the cable.
● When connecting a cable, attach the end with the
core filter to the camcorder.
How To Attach The Strap
1
Following the illustration, thread the strap
through the eyelet
a.
2
Fold it back and thread it through the buckle b.
3
Repeat the procedure to attach the other end of
the strap to the other eyelet
c.
4
Confirm the strap is not twisted.
Size Cable
Times to
wind
Large i.LINK cable* Twice
Medium USB cable** Once
Small
DC cord
Audio cable
Once
Stopper
3 cm
Wind once.
