Sunrise Medical Swing-Away and Fixed Front GTX - Manual (Page 76)

[12/2007]
PAGE 76 QUICKIE GTX

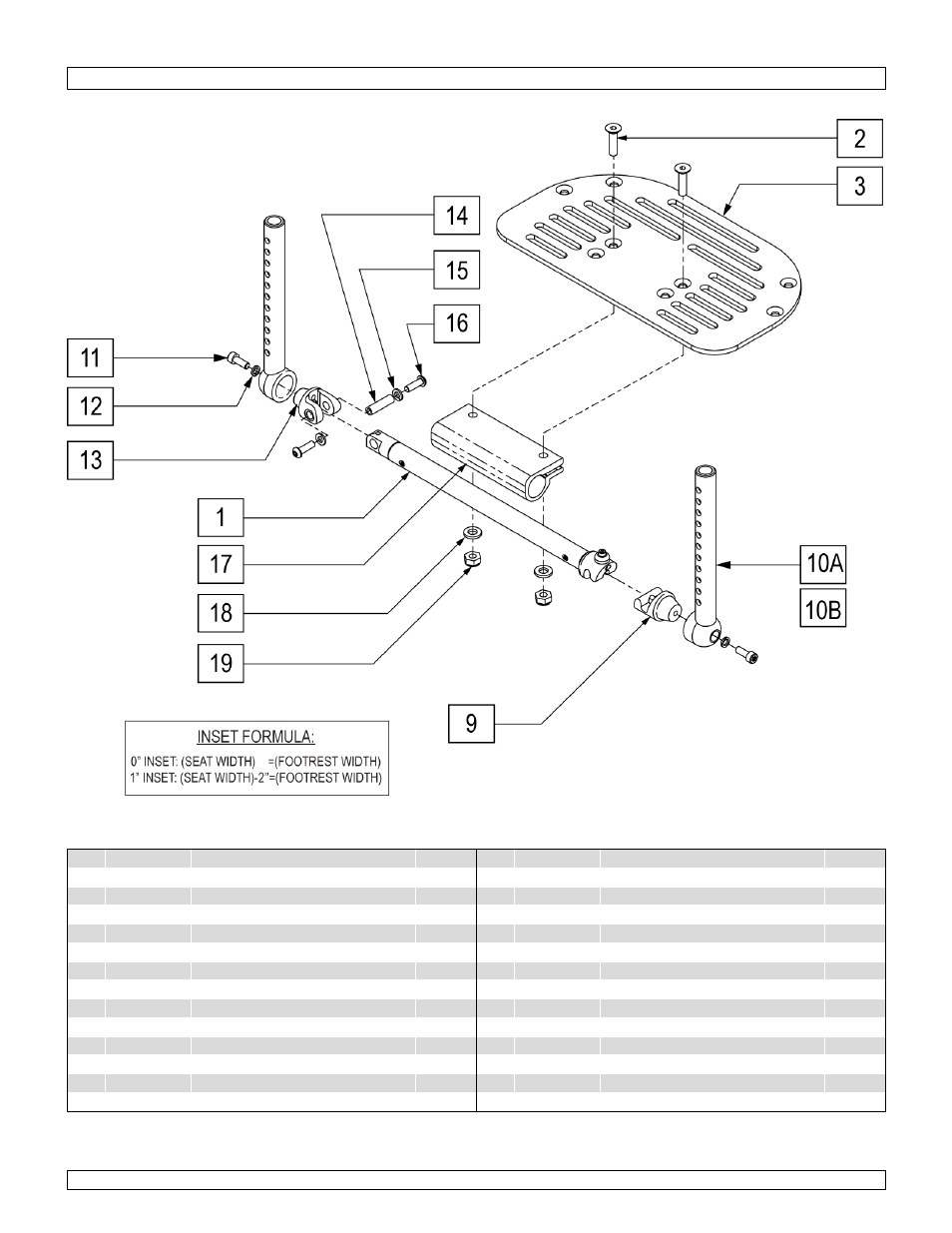

PLATFORM FOOTREST
Pos. Item Number Description Remarks
2 230510 M6-25 FH C/S BLK
3 500690 NEW PLTFORM F/PLT 6X5.5
3 500691 NEW PLTFORM F/PLT 8X5.5
3 500692 NEW PLTFORM F/PLT 10X5.5
3 500693 NEW PLTFORM F/PLT 12X5.5
9 100842 ASSY LATCH PIVOT FOOTREST
10A 052021-001 TUBE FOOTREST WLDMNT STD 2
10B 052021-002 TUBE FOOTREST WLDMNT LONG 2
11 230010 SHCS M6X 1 X 16 BLK 2
12 050129-001 LOCKWASHER HIGH COLLAR M6 2
13 052022 CLEVIS PIVOT TUBE
14 052282 PIN PIVOT FOOTREST
15 262133 WASHER LOCK M6 2
Pos. Item Number Description Remarks
16 013147 BHCS M6X1X12MM BLK 2
17 550351 PLATFORM FOOTPLATE CLAMP
18 250104 WASHER FLAT M6 2
19 200113 NUT HEX NYLOCK M6 X 1 2
1,4-8 100831-001 ASSY TUBE FTRST PLTFRM 12" W
1,4-8 100831-002 ASSY TUBE FTRST PLTFRM 13" W
1,4-8 100831-003 ASSY TUBE FTRST PLTFRM 14" W
1,4-8 100831-004 ASSY TUBE FTRST PLTFRM 15" W
1,4-8 100831-005 ASSY TUBE FTRST PLTFRM 16" W
1,4-8 100831-006 ASSY TUBE FTRST PLTFRM 17" W
1,4-8 100831-007 ASSY TUBE FTRST PLTFRM 18" W
1,4-8 100831-008 ASSY TUBE FTRST PLTFRM 19" W
1,4-8 100831-009 ASSY TUBE FTRST PLTFRM 20" W
