Sunrise Medical Swing-Away and Fixed Front GTX - Manual (Page 73)

[Revision: 07/2007]
QUICKIE GTX PAGE 73

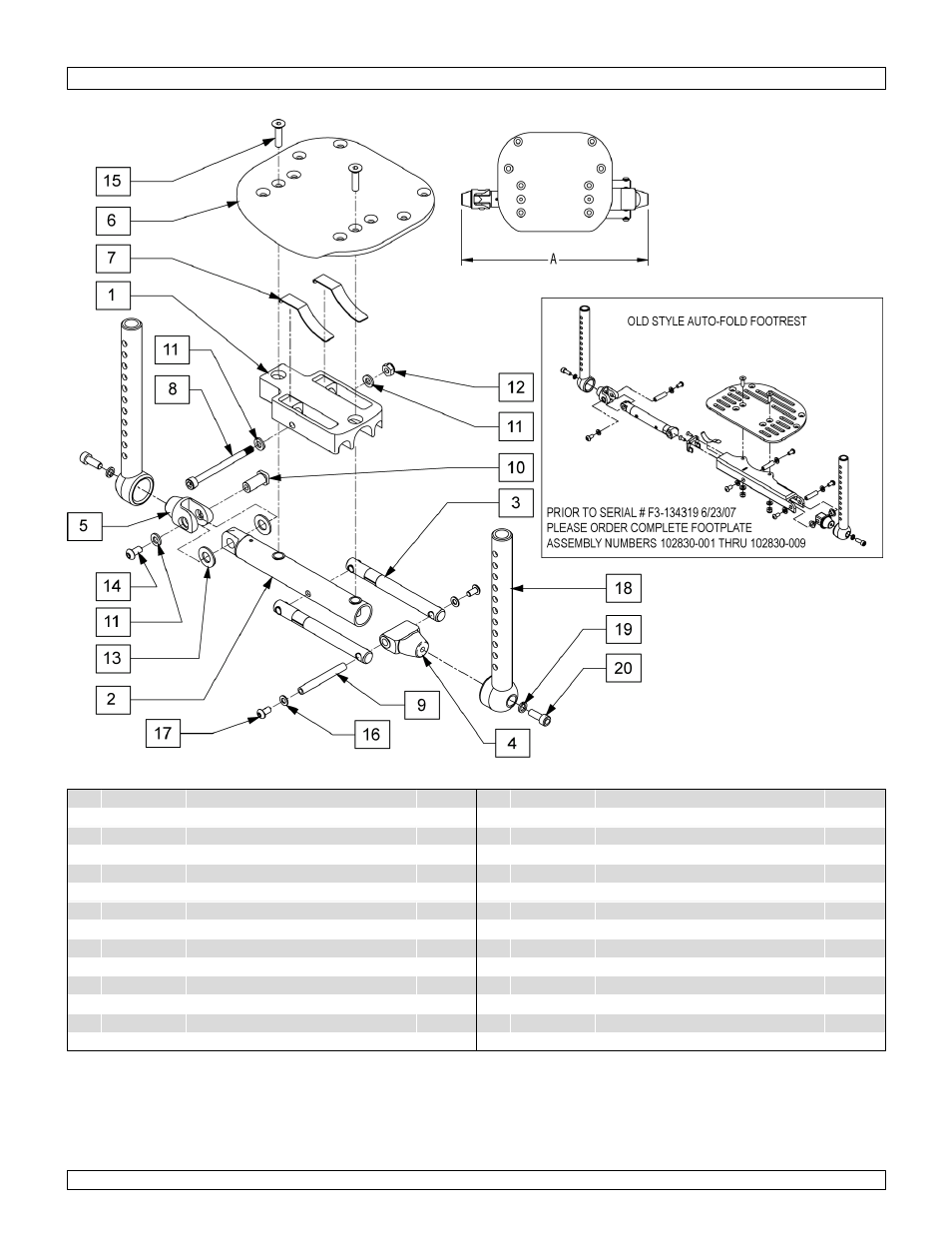

AUTOFOLD FOOTREST ASSM - CHANNEL
Pos. Item Number Description Remarks
1 054858 SADDLE CENTER FOOTREST
6 054853-001 FOOTPLATE SIZE 1
6 054853-002 FOOTPLATE SIZE 2
6 054853-003 FOOTPLATE SIZE 3
6 054853-004 FOOTPLATE SIZE 4
6 054853-005 FOOTPLATE SIZE 5
7 054852 SPRING LEAF FOOTREST
11 250104 WASHER FLAT M6
12 200113 NUT HEX NYLOCK M6 X 1
14 230113 BHCS M6 X 1 X 12 BLK W/PL
15 230510 M6-25 FH C/S BLK
16 012931 BHCS M5 X 10 W/PL BLK CL 10.9
17 102834 WASHER FLAT M5 SS
Pos. Item Number Description Remarks
18 052021-001 TUBE FTREST WLDMNT STD
18 052021-002 TUBE FTREST WLDMNT LNG
19 050129-001 LOCKWASHER HIGH COLLAR M6
20 230010 SHCS M6 X 1 X 16 BLK
1-17 102830-001 ASSY FOOTPLATE AUTOFOLD 12W
1-17 102830-002 ASSY FOOTPLATE AUTOFOLD 13W
1-17 102830-003 ASSY FOOTPLATE AUTOFOLD 14W
1-17 102830-004 ASSY FOOTPLATE AUTOFOLD 15W
1-17 102830-005 ASSY FOOTPLATE AUTOFOLD 16W
1-17 102830-006 ASSY FOOTPLATE AUTOFOLD 17W
1-17 102830-007 ASSY FOOTPLATE AUTOFOLD 18W
1-17 102830-008 ASSY FOOTPLATE AUTOFOLD 19W
1-17 102830-009 ASSY FOOTPLATE AUTOFOLD 20W
