Sunrise Medical Swing-Away and Fixed Front GTX - Manual (Page 11)

[02/2008]
QUICKIE GTX PAGE 11

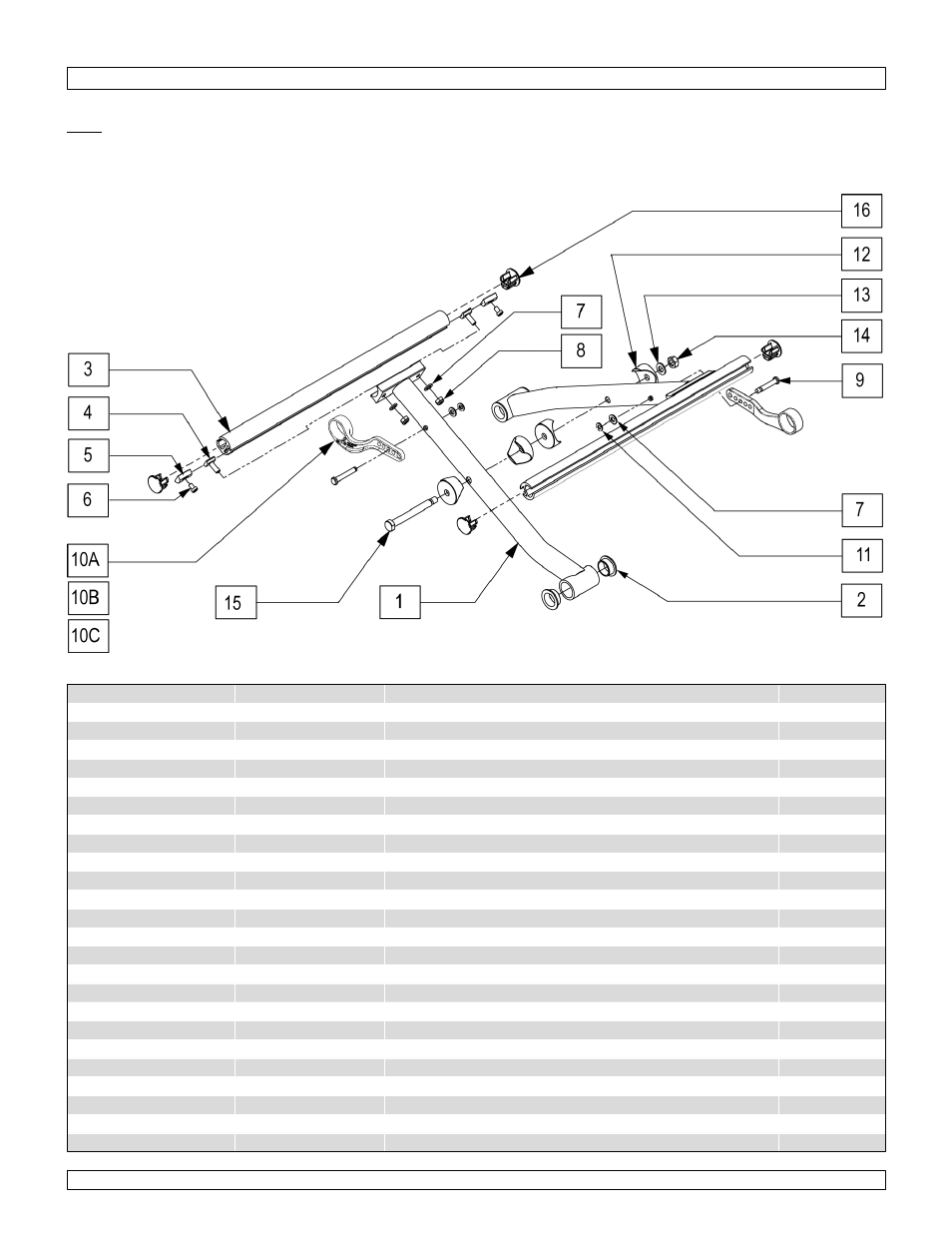

X BRACE ASSEMBLY
NOTE: ITEM #101191, SEAT SLING TUBE HDWR KIT GTX, INCLUDES HARDWARE FOR (1) SIDE ONLY.
Pos. Item Number Description Remarks
2 052056 FLANGE BEARING .75ID X .875OD
3 052029-001 TUBE SEAT SLING 12D BLK
3 052029-002 TUBE SEAT SLING 13D BLK
3 052029-003 TUBE SEAT SLING 14D BLK
3 052029-004 TUBE SEAT SLING 15D BLK
3 052029-005 TUBE SEAT SLING 16D BLK
3 052029-006 TUBE SEAT SLING 17D BLK
3 052029-007 TUBE SEAT SLING 18D BLK
3 052029-008 TUBE SEAT SLING 19D BLK
3 052029-009 TUBE SEAT SLING 20D BLK
3 052029-010 TUBE SEAT SLING 21D BLK
3 052029-011 TUBE SEAT SLING 22D BLK
4 052123-001 CHANNEL STUD M6 X 17
5 052118 DOVETAIL RADIUS M5
6 100547 SHCS M5 X 8 LOW HEAD BLK
7 250104 WASHER FLAT M6
8 200113 NUT HEX NYLOCK M6 X 1
9 054313 X-BRACE PIN
10A 052095-001 X HINGE 14 -16"
10B 052095-002 X HINGE 12 -13"
10C 052094 X HINGE 17 -20"
11 342000 1/4" E-CLIP"
12 054306 SADDLE D28-6
13 011648 WASHER FLAT M8
