CAMERA Settings

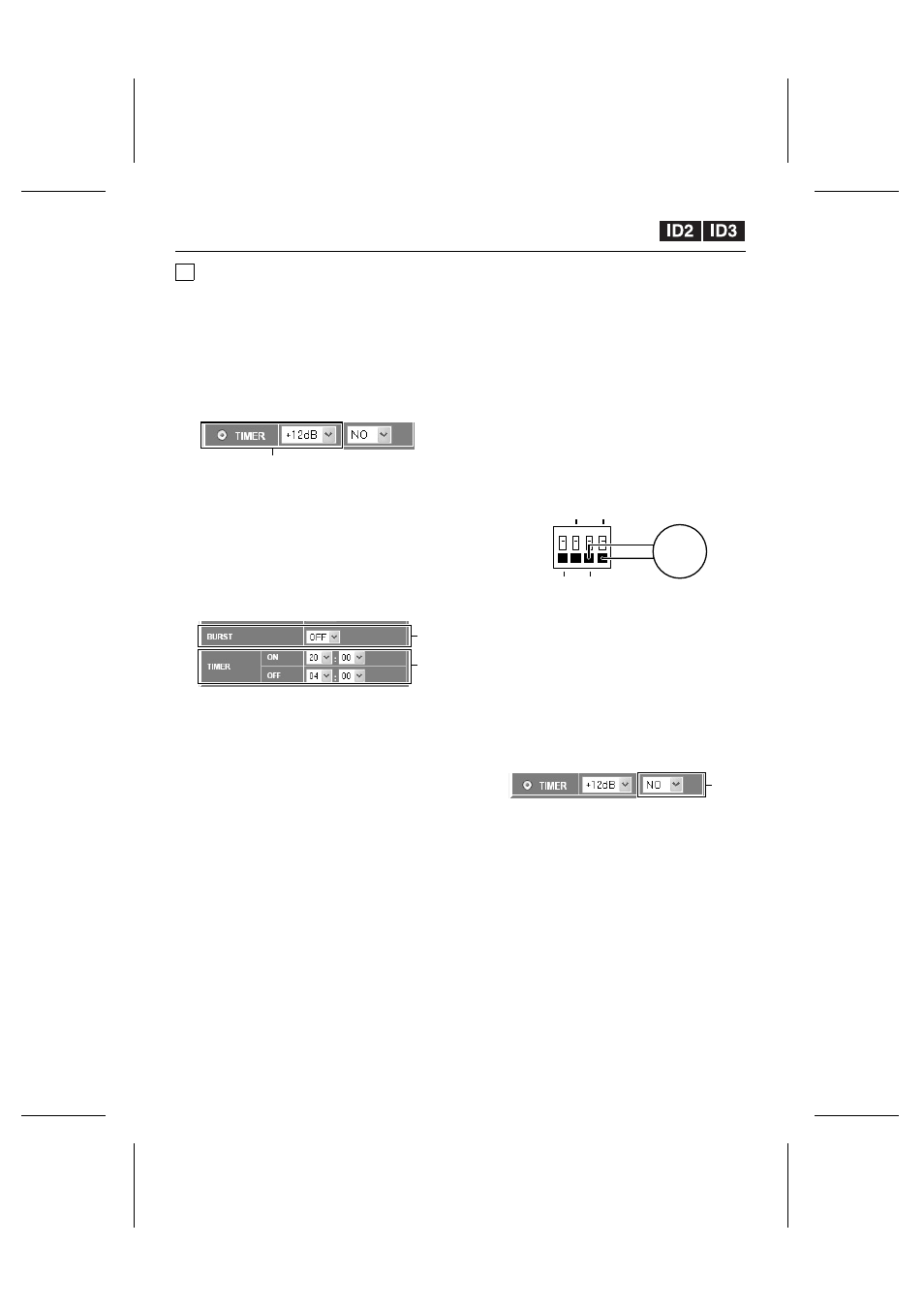

D TIMER Mode Settings
Monitoring can be switched between color and
black & white after the length of time specified.
Example: To set monitoring to black & white
between 8:00 p.m. and 4:00 a.m.
1
Click the [DETAIL] button in the
DAY/NIGHT field and set MODE to
“TIMER”.
2
Set “AGC Gain” to “+12dB” (example).
If the objects are dark, set the AGC Gain to
the maximum value so that images are made
brighter when they are being monitored.
Available settings: +9dB (default setting),
+12dB, +15dB, OFF
3
Set “BURST” to “OFF” (example).
4
Change the TIMER ON setting to “20:00”
and the OFF setting to “04:00”.
Set the time for switching from color to black
& white from the drop-down list boxes.
Monitoring will be in color at other times.
Available settings:
•
ON: When the set time is reached,
monitoring changes to black & white
(Default setting: 18:00)
•
OFF: When the set time is reached,
monitoring changes to color (Default
setting: 6:00)
Note: Settings that overlap a day can also be
made.
5
Click the [SET] button.
This completes the TIMER mode settings.
Monitoring will switch from color to black &
white during the set time period. At other
times, monitoring will be in color.
☞ Using an IR lamp to illuminate during
black & white monitoring
You can have an IR lamp illuminate when black
& white monitoring is being carried out. Having
the IR lamp illuminate at this time can be helpful
in increasing the sensitivity when monitoring
black & white images.
Note: Change the ALARM OUT setting for
TIMER mode to “NO” or “NC”. However,
in such cases, the ALARM OUT and
alarm output settings will be disabled
during alarm recording.
1
Connect an IR lamp to the camera.
(Connection example)
2
Set the timer mode.
Carry out the settings in “
D TIMER Mode
Settings”.
3
Set “ALARM OUT” to “NO” (example).
A signal can be output from the ALARM OUT
terminal when monitoring switches to black &
white. (An IR lamp can be connected so that
it illuminates at such times.)
Available settings: OFF, NC, NO
4
Click the [SET] button.
At the same time as the camera images
switch to black & white, an ALARM OUT
(NO/NC) signal will be output and the
connected IR lamp will illuminate.
Note: The IR lamp will illuminate only while
black & white monitoring is being
carried out. Set the polarity so that a
signal is output during black & white
monitoring.
1,2
3
4
ALARM IN OUT
COM D/N IN
IR lamp
3
L5AM2/XE (VCC-WB4000P) GB 2004, 2, 17
– 34 – English
