11

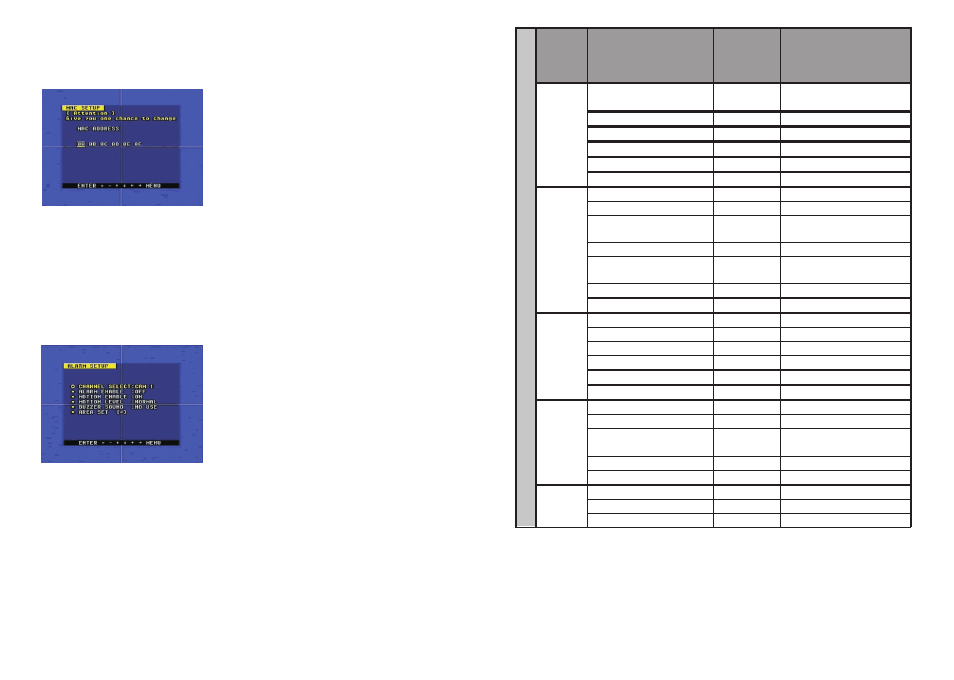

13. Mac Set
When the cursor moves to Mac Set then push enter button, the Mac Set window will appear,
which is illustrated as below.
If you have more than one DVR in a local area network, you have to set each DVR to have an
exclusive mac address, but remember that you have only one chance to modify the mac
address, once you have changed the mac address, this menu will not appear again. If you want
to change the mac address again, please load the factory set, then you can change the mac
address again.
14. Alarm Setup
When the cursor moves to Alarm Set, then push enter button, the alarm setup window will
appear, which is illustrated as below. Push upward or downward button to move the cursor.
Push “+” or “-“ to change the value.
ALARM ENABLE: alarm trigger switch, can be set to off, low lever or high lever. If users set it
to off, the DVR will ignore the alarm input.
MOTION ENABLE: Motion alarm switch, can be set to on or off, if set to off, the motion
alarm will be ignored.
MOTION LEVEL: motion sensitivity level, if the figure in the picture is small, please set to
high or very high, the default is normal.
BUZZER SOUND: buzzer sound time when there is a sensor or motion alarm.
Note: Users must press the Schedule button after setting up the parameters to activate
the settings.
28
Setup
window
for each
item
Setup items Default setup Selectable setup
Year/Month/Day/
Hour/Minute
2005/01//01
12/00/00
2000~2099/Common sense
rules
Auto Time 1 second 0~99second
Buzzer Sound ON ON/OFF
Password 0000 N/A
Play Repeat YES YES/NO
General
setting
Video Input NTSC format NTSC/PAL
Quality Normal Very high/High/Normal/Low
Overwrite Enable YES YES/NO
Rec Speed
30f/s(NTSC)
25f/s(PAL)
60f/s~1f/2s(NTSC)
50f/s~1f/2s(PAL)
Resolution 360 360/720
PB Speed NO use
60f/s~no use(NTSC)
50f/s~no use(PAL)
Audio Enable CAM 1 CAM1~CAM4/OFF
Recording
Para
A/M REC Time 1 Minute 0~99minute
Sub Net 255.255.255.0 N/A
Gate Way 192.168.1.1 N/A
IP Address 192.168.1.167 N/A
Net Work Speed Fast Fast/Normal
N/W Enable ON ON/OFF
Net Work
Setting
Mac Address 0a0b0c0d0e0f N/A
Alarm Enable OFF ON/OFF
Motion Enable OFF ON/OFF
Motion Level Normal
Very low/Low/
Normal/High/Very high
Buzzer Sound No Use 0~99 second
Alarm
setting
Schedule setting A A/T/-
Baud Rate 2400 2400/4800/9600/19200/38400
Protocol PTC1 PTC1/ PTC2/ PTC3/ PTC4
S
Y
S
T
E
M
S
E
T
U
P
Protocol
Setting
Address 01 0~0xff
