DVR8/16-8500AI DVR Easy Setup Guide
USB Connections C
Connect the USB Cable to a PC for backup features and
connect a USB Mouse* for point and click menu controls
*Mouse not included
INPUT
B
2
4
3
1
5
Connect the Yellow RCA
plug to a TV’s INPUT and
connect the BNC end to
the Video Output on DVR
Connect one end of the Ethernet
cable to the LAN port on the DVR
and the other end to your
router/modem
Connect your cameras to the
BNC connectors on the back
of the DVR labelled ‘VIDEO IN’
Connect the Power Cable
to the back of the DVR.
Flip the switch to power DVR
Connect a VGA cable
(not included) from
your monitor to the
VGA port on the
back of the DVR

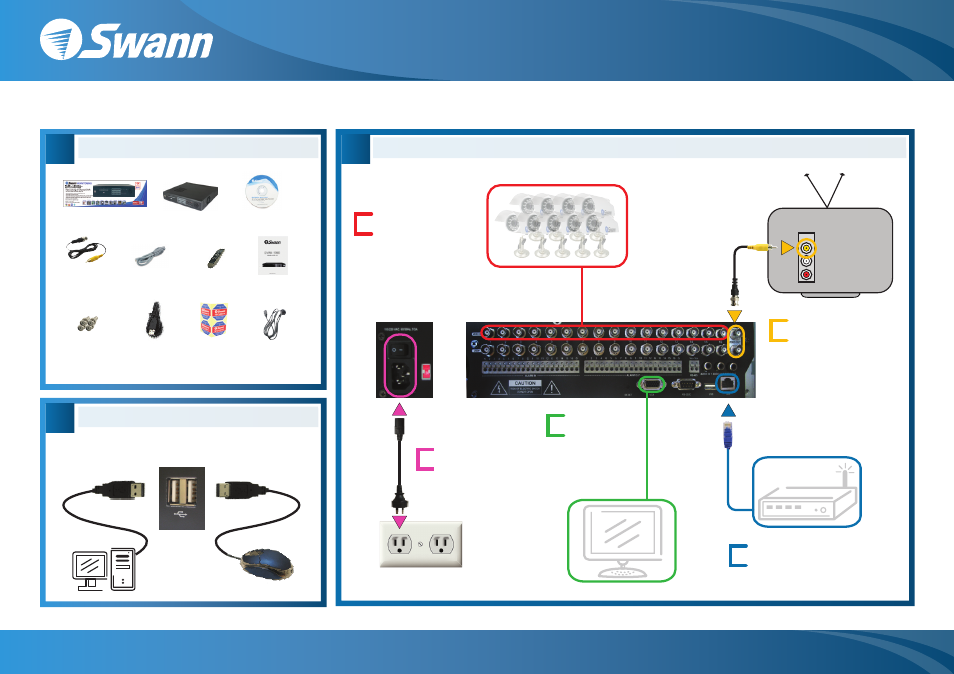

DVR & Camera Connections
Optional
Optional
Optional
Ethernet Cable
Ethernet
Cable
USB Cable
Package Contents
Manual
DVR Power Cable
DVR Power
Cable
BNC to
RCA Cable
BNC to
RCA Cable
DVR Unit
8/16 BNC
Adapters
Software CD
Remote
Control
A
Security
Stickers
