1. Specifications
1
2
3
4
5
6

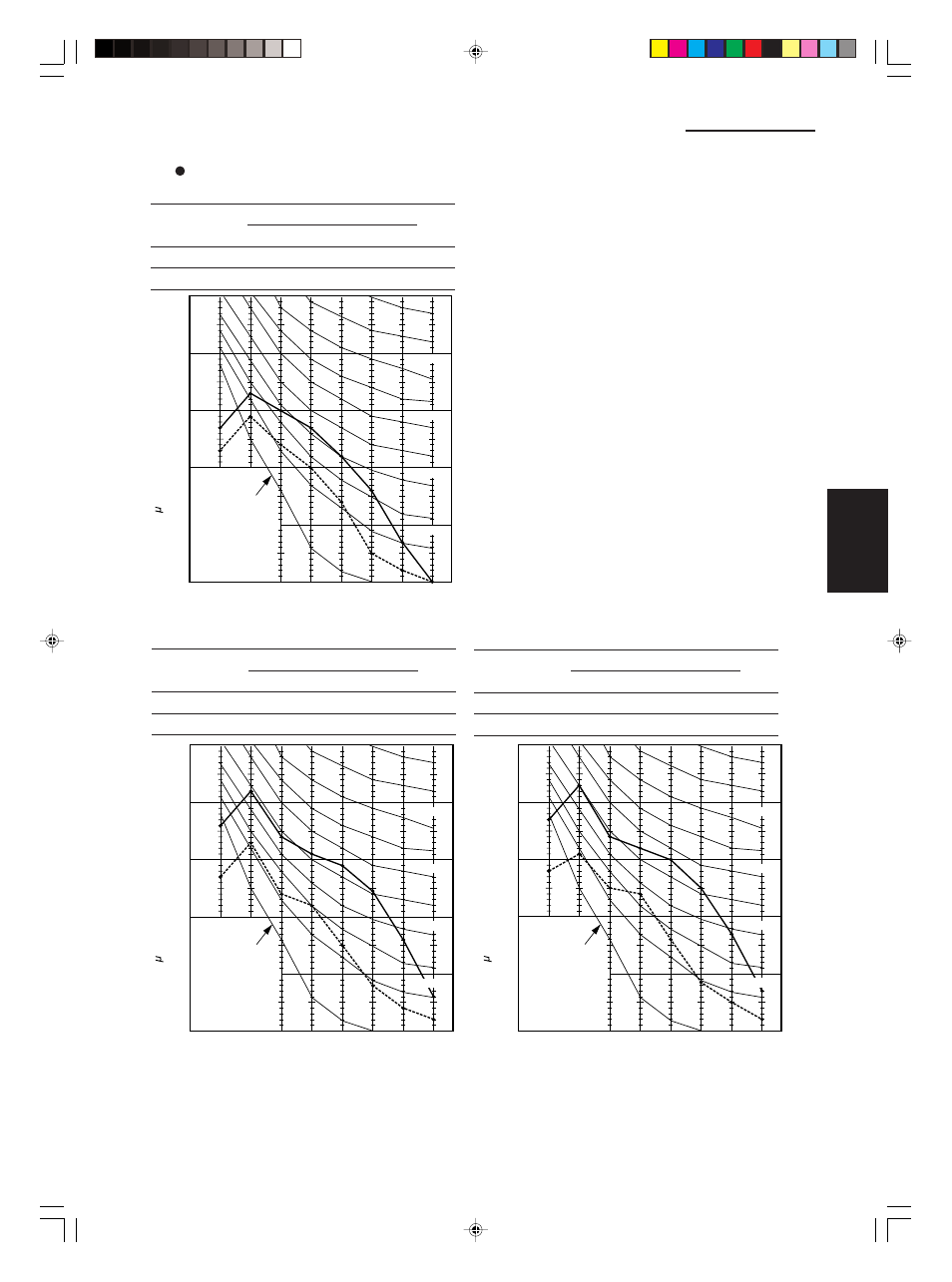

1-8 Noise Criterion Curves
4-Way Air Discharge Semi-concealed Type
MODEL : XH2672R
SOUND LEVEL : HIGH 38 dB(A), NC 31
LOW 31 dB(A), NC 23
CONDITION : Center, Under the unit 4.9 ft.
SOURCE : 208 - 230 V, 1 Phase, 60 Hz
MODEL : XH4272R
SOUND LEVEL : HIGH 45 dB(A), NC 38
LOW 34 dB(A), NC 27
CONDITION : Center, Under the unit 4.9 ft.
SOURCE : 208 - 230 V, 1 Phase, 60 Hz
MODEL : XH3672R
SOUND LEVEL : HIGH 44 dB(A), NC 37
LOW 33 dB(A), NC 25
CONDITION : Center, Under the unit 4.9 ft.
SOURCE : 208 - 230 V, 1 Phase, 60 Hz
