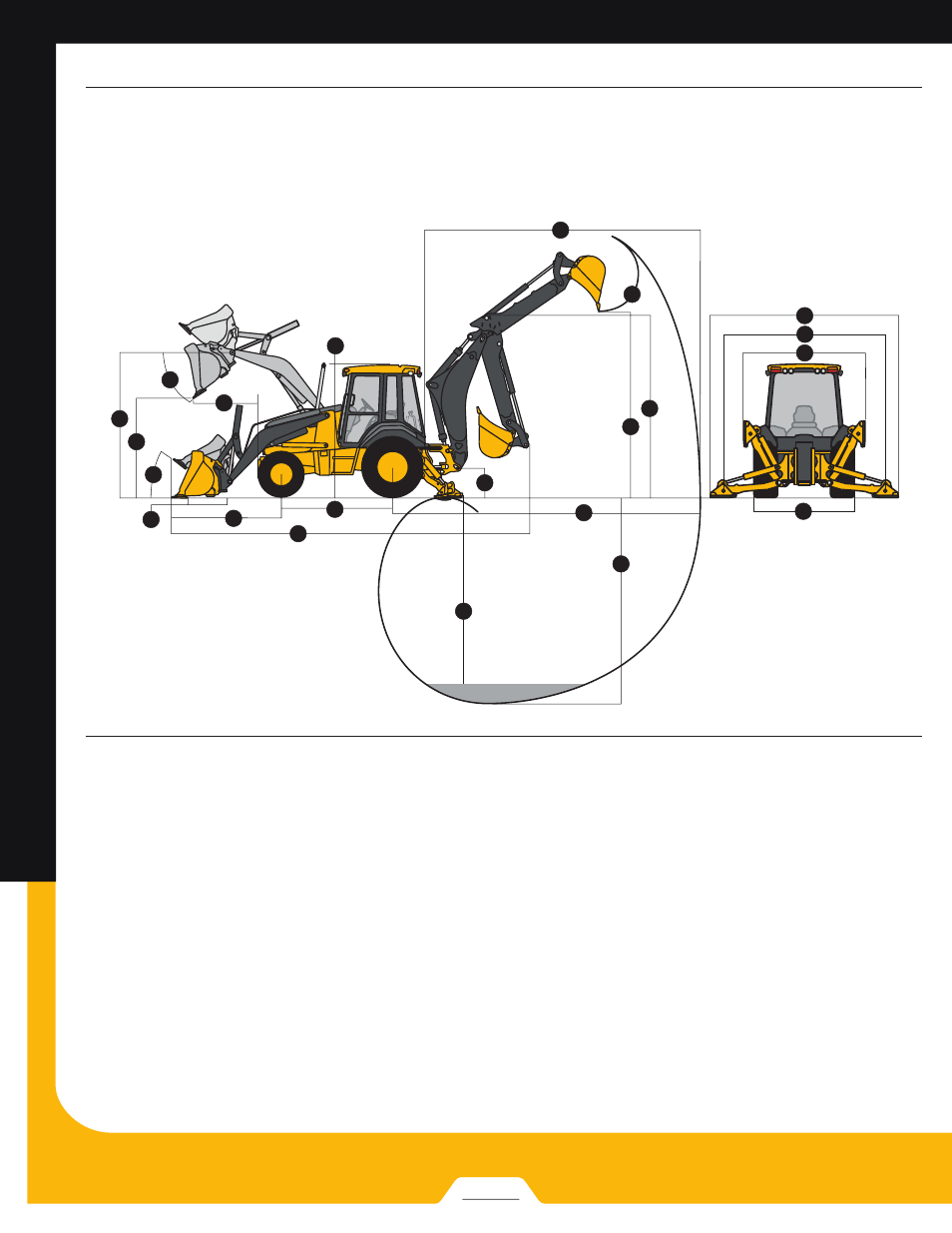

Backhoe Dimensions / Performance 710J
Backhoe specifications are with 610-mm x
0.31-m 3 (24 in. x 11.1 cu. ft.) bucket
Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610–914 mm (24–36 in.)
Digging Force
Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 75.6 kN (17,000 lb.)
Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 52.3 kN (11,750 lb.)
Swing Arc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 deg.
Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . pilot control
With Standard With Optional Extendable Dipperstick
Backhoe Retracted Extended
F Loading Height (truck loading position) . . . . . . . 4.34 m (14 ft. 3 in.) 4.34 m (14 ft. 3 in.) 5.18 m (17 ft. 0 in.)
G Reach from Center of Swing Pivot. . . . . . . . . . . 6.86 m (22 ft. 6 in.) 6.86 m (22 ft. 6 in.) 8.19 m (26 ft. 10 in.)
H Reach from Center of Rear Axle . . . . . . . . . . . . 8.13 m (26 ft. 8 in.) 8.13 m (26 ft. 8 in.) 9.46 m (31 ft. 0 in.)
I Digging Depth (SAE maximum) . . . . . . . . . . . . . 5.44 m (17 ft. 10 in.) 5.44 m (17 ft. 10 in.) 6.81 m (22 ft. 4 in.)
J Digging Depth (SAE)
610-mm (2 ft.) Flat Bottom . . . . . . . . . . . . . . . . 5.41 m (17 ft. 9 in.) 5.41 m (17 ft. 9 in.) 6.83 m (22 ft. 5 in.)
2440-mm (8 ft.) Flat Bottom . . . . . . . . . . . . . . . 5.18 m (17 ft. 0 in.) 5.18 m (17 ft. 0 in.) 6.58 m (21 ft. 7 in.)
K Stabilizer Width (transport) . . . . . . . . . . . . . . . . 2.41 m (7 ft. 11 in.) 2.41 m (7 ft. 11 in.) 2.41 m (7 ft. 11 in.)
L Stabilizer Spread (operating) . . . . . . . . . . . . . . . 3.99 m (13 ft. 1 in.) 3.99 m (13 ft. 1 in.) 3.99 m (13 ft. 1 in.)
M Stabilizer Overall Width (operating) . . . . . . . . . . 4.65 m (15 ft. 3 in.) 4.65 m (15 ft. 3 in.) 4.65 m (15 ft. 3 in.)
N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg. 190 deg. 190 deg.
O Transport Height . . . . . . . . . . . . . . . . . . . . . . . . 4.17 m (13 ft. 8 in.) 4.22 m (13 ft. 10 in.) 4.22 m (13 ft. 10 in.)
Overall Dimensions 710J
A Ground Clearance (minimum) . . . . . . . . . . . . . . 356 mm (14 in.)
B Overall Length (transport) . . . . . . . . . . . . . . . . . 8.15 m (26 ft. 9 in.)
C Width over Tires . . . . . . . . . . . . . . . . . . . . . . . . 2.29 m (7 ft. 6 in.)
D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 2.97 m (9 ft. 9 in.)
E Length from Axle to Axle
Non-Powered Front Axle . . . . . . . . . . . . . . . . . . 2.52 m (8 ft. 3 in.)
mechanical-Front-Wheel-Drive Axle . . . . . . . . . 2.49 m (8 ft. 2 in.)
DKAJLBH Page 36
