Operating Weights 410J TMC
With Full Fuel Tank, 79-kg (175 lb.) Operator,
and Standard Equipment (Cab, Extend-
able Dipperstick, and 567-kg [1,250 lb.]
Counterweight) . . . . . . . . . . . . . . . . . . . . . . . . 8626 kg (19,022 lb.)
Optional Components
Tool Carrier (includes mechanical-front-
wheel drive) . . . . . . . . . . . . . . . . . . . . . . . 482 kg (1,062 lb.)
Backhoe Bucket Coupler . . . . . . . . . . . . . . . . . 63 kg (138 lb.)

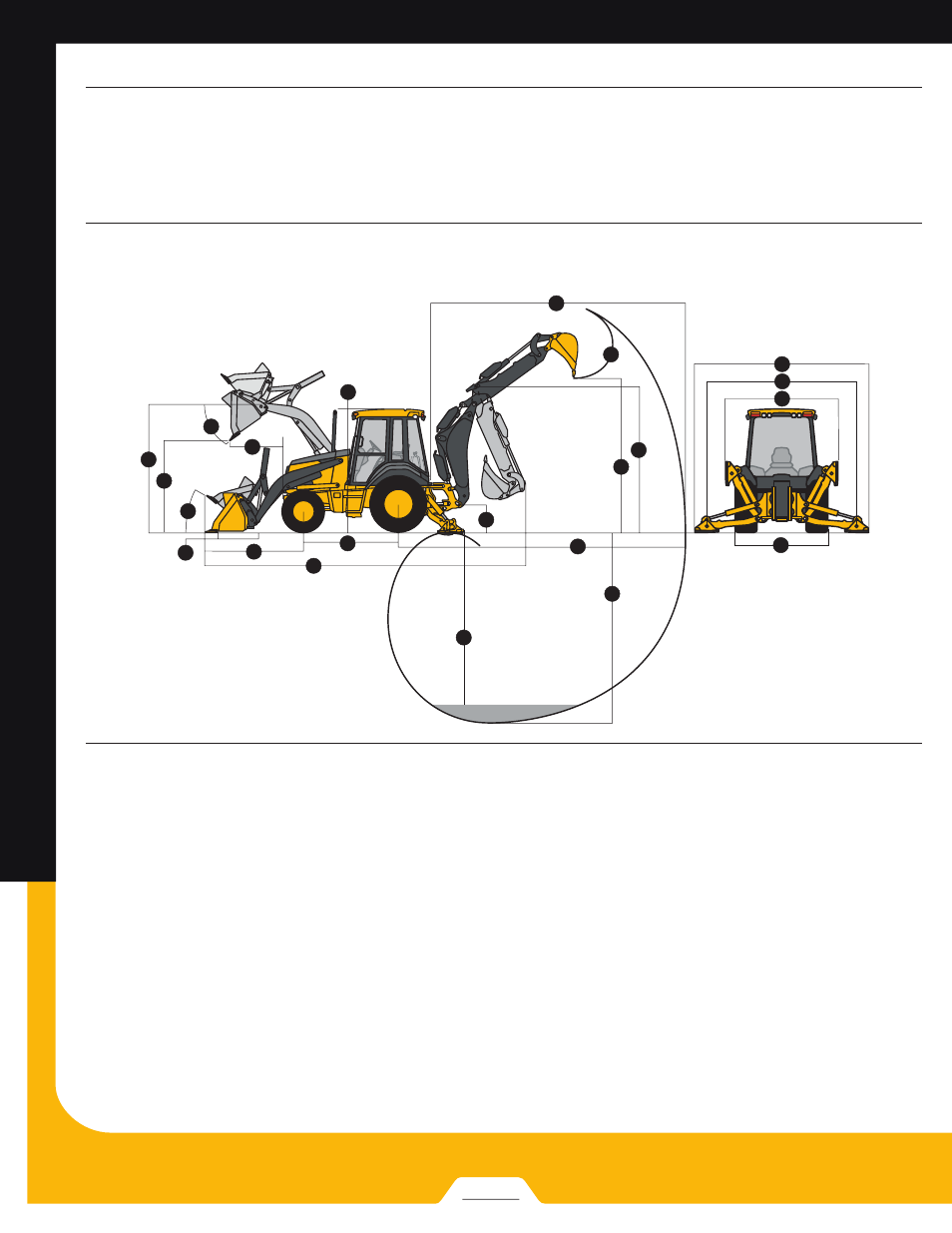

Overall Dimensions
A Ground Clearance (minimum) . . . . . . . . . . . . . . 356 mm (14 in.) E Length from Axle to Axle
B Overall Length (transport) . . . . . . . . . . . . . . . . . 7.29 m (23 ft. 11 in.) Non-Powered Front Axle . . . . . . . . . . . . . . .2.11 m (6 ft. 11 in.)
C Width over Tires . . . . . . . . . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.)
mechanical-Front-Wheel-Drive Axle . . . . . .2.14 m (7 ft. 0 in.)
D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 2.82 m (9 ft. 3 in.)
T
U
R
S
V
B
A
O
F
G
H
I
K
L
C
M
D
E
N
J
Q
P
Backhoe Dimensions / Performance 410J TMC
Backhoe specifications are with 610-mm x
0.21-m 3 (24 in. x 7.5 cu. ft.) bucket
Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305–762 mm (12–30 in.)
Digging Force
Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 65.8 kN (14,801 lb.)
Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 38.9 kN (8,741 lb.)
Swing Arc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 deg.
Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . two joysticks
With Extendable Dipperstick
Retracted Extended
F Loading Height (truck loading position) . . . . . . . 3.86 m (12 ft. 8 in.) 4.72 m (15 ft. 6 in.)
G Reach from Center of Swing Pivot. . . . . . . . . . . 6.07 m (19 ft. 11 in.) 7.21 m (23 ft. 8 in.)
H Reach from Center of Rear Axle . . . . . . . . . . . . 7.19 m (23 ft. 7 in.) 8.33 m (27 ft. 4 in.)
I Digging Depth (SAE maximum) . . . . . . . . . . . . . 4.90 m (16 ft. 1 in.) 6.10 m (20 ft. 0 in.)
J Digging Depth (SAE)
610-mm (2 ft.) Flat Bottom . . . . . . . . . . . . . . . . 4.85 m (15 ft. 11 in.) 6.07 m (19 ft. 11 in.)
2440-mm (8 ft.) Flat Bottom . . . . . . . . . . . . . . . 4.55 m (14 ft. 11 in.) 5.82 m (19 ft. 1 in.)
K Stabilizer Width (transport) . . . . . . . . . . . . . . . . 2.30 m (7 ft. 7 in.) 2.30 m (7 ft. 7 in.)
L Stabilizer Spread (operating) . . . . . . . . . . . . . . . 3.45 m (11 ft. 4 in.) 3.45 m (11 ft. 4 in.)
M Stabilizer Overall Width (operating) . . . . . . . . . . 4.03 m (13 ft. 3 in.) 4.03 m (13 ft. 3 in.)
N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg. 190 deg.
O Transport Height . . . . . . . . . . . . . . . . . . . . . . . . 3.91 m (12 ft. 10 in.) 3.91 m (12 ft. 10 in.)
