Installing the Projector
ENGLISH
DEUTSH
FRAN
ÇAIS
ITALIANO
ESPAÑOL

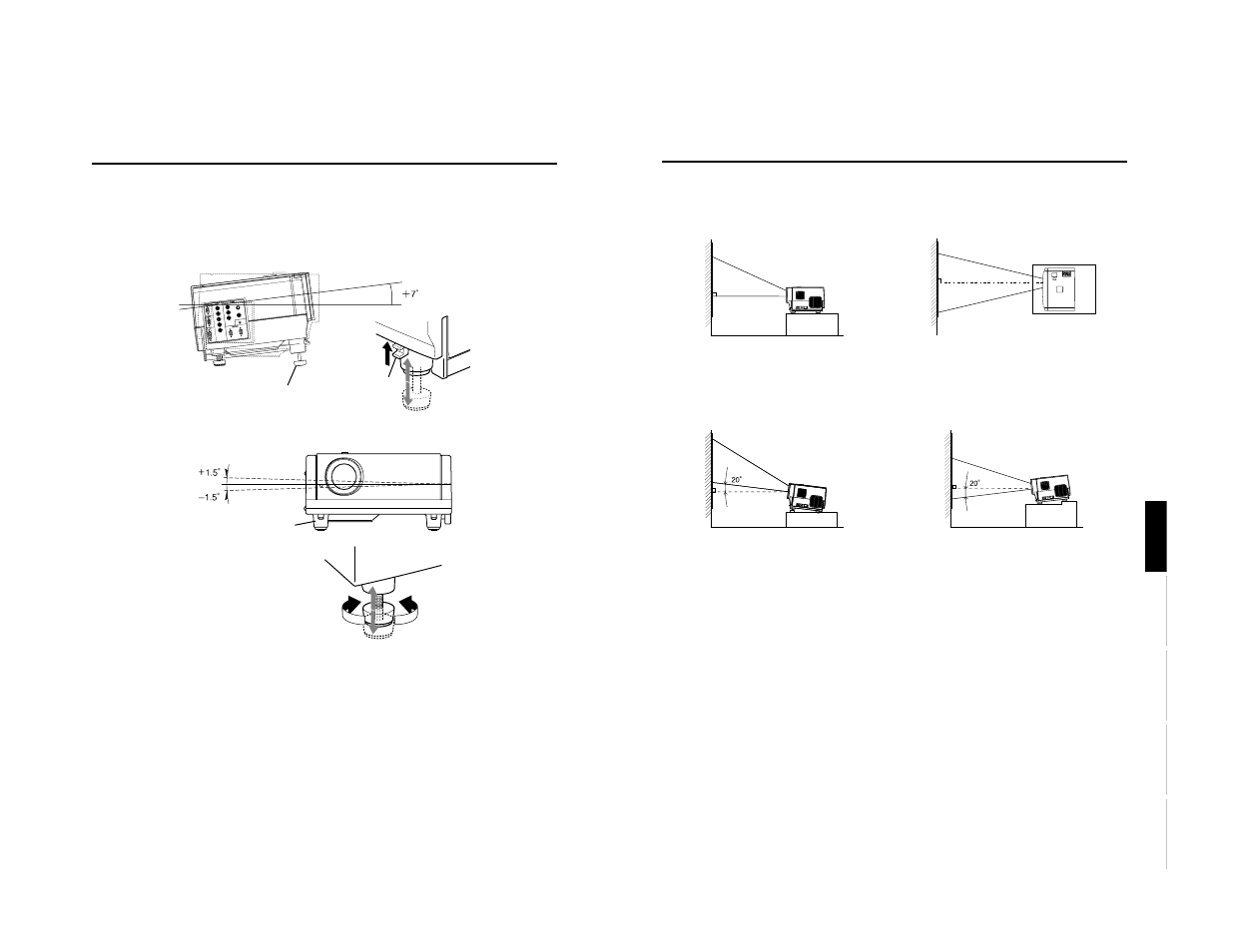

Installing the Projector against the Screen
The projector should be placed so that the center line of the lens is at a right angle to the screen as shown in the following
figures.
■
Side view
■
Top view
■
Trapezoidal-distortion correctable maximum angle
The projector has a function to correct the trapezoidal distortion of the projected image on the screen.
To correct this distortion, use the KEYSTONE buttons on the projector. (Refer to “Removing the Trapezoidal Distortion of the
Image” on page 35.) Also, correction is possible by using the “Keystone” menu. (Refer to “Setting and Adjusting Other
Functions (OPTIONS)” on page 54.)
LAMP
TEMP
ST
AND BY
HIDE
PC
VIDEO
MENU
KEYST
O
NE
V
O
LUME
PRESET
ESCAPE
ENTER
OPERA
T
E
Correctable angle:
Up to approx. 20° upward from the horizontal line
Correctable angle:
Up to approx. 20° downward from the horizontal line
16
Installing the Projector
Adjusting the Inclination of the Projector
The vertical angle and the leveling of the projector can be adjusted with the adjustable feet at the bottom of the projector.
■
Adjusting the vertical angle of the projector
While pushing the levers on both sides upward, raise the projector. The adjustable feet automatically extend.
To retract the feet, push the levers and lower the projector slowly; the projector is fixed at the position
where you release the levers.
■
Leveling the projector
Lift the projector, rotate the rear adjustable foot, and adjust the horizontal angle until the projector is level.
Y
PB/B-Y
PR/R-Y
REMOTE
Y/C
VIDEO
R
G
B
DVI
H
IN
OUT
V
IN
Adjustable feet (at the front)
lever
Shorten
Extend
Adjustable foot (at the rear)
Fixing foot (at the rear)
