Menu Operations
■ Quick Reference Guide for PC Menu Mode
* : Factory set value.
Main Menu in PC Menu Mode (While receiving computer-related signals)
Image adj. → (Refer to page 49)
Contrast: Contrast of the picture image being projected can be adjusted. (–30 to +30, 0*)
Brightness: Brightness of the picture image being projected can be adjusted. (–30 to +30, 0*)
Sharpness: Adjust the outline of letters etc. (1 / 2 / 3 / 4 / 5, 3*)
All reset: Resets above items to the factory set values.
Yes / No
Set up
Tracking: The lateral size and display area of picture image can be adjusted. (–128 to +127)
→ (Refer to page 47)
Phase: Flickering or dim picture image can be adjusted. (0 to 31) → (Refer to page 47)
Position: Video screen position and menu position can be adjusted. → (Refer to page 51)
Disp. Posi. / Menu
Resize: The relationship between the number of pixels (resolution) and the screen can be
selected.
→ (Refer to page 53)
“1:1”: Picture image is projected with its original size.
Panel: Picture image is enlarged to the full size.
Aspect*: Picture image is enlarged while maintaining the original aspect ratio.
Clamp: Selectable clamp position. Normally, set to “BP”. ST / BP*
Color temp.
Color temp.: Adjustable color temperature, Low/Middle* /High.
Will be adjusted to correct reddish or blueish image.
RED: Adjusts the red level. (o to 255, the adjustable range varies depending on signals)
GREEN: Adjusts the green level. (o to 255, the adjustable range varies depending on signals)
BLUE: Adjusts the blue level. (o to 255, the adjustable range varies depending on signals)
All-reset: Reset above items to the factory set values.
Yes/No
Options → (Refer to page 54)
Options 1
Menu display: 15sec* (Menu disappears in 15 seconds.) / ON (Menu stays on.)
Line display: 5sec* (Line display such as “PC1” or “PC2” appears on top right of the screen for 5
seconds when the VIDEO or PC button is pressed.) / OFF (Line display does not
appear.)
Lamp time display:
ON*: Displays when the lamp use time reaches 1000 hours when set in the LPC or LOC mode.
OFF:
Does not display when the lamp use time reaches 1000 hours when set in the LPC or LOC
mode.
Keystone: Press ENTER to enter the Keystone submenu.
Keystone: Adjust to correct the trapezoidal distortion of the projected image.
(–80 to +128, 0*)
Lamp control:
Normal*: Used as a normal lamp.
LPC: Lamp brightness is aLutomatically controlled with time.
LOC: Lamp brightness is controlled in 7 levels (-6 to 0) irrespective of the time. This is set within
the menu.
Page 2: Press ENTER to enter the “Page 2” submenu.
Flip H: OFF* / ON (Select for upside-down hanging on the ceiling.)
Flip V: OFF* / ON (Select for upside-down hanging on the ceiling.)
RS-232C [bps]: Selectable baud rate (transmission speed). 9600 / 19200*
Sleep time [min]: Selectable sleep times. If no-signal condition continues for the
period of selected time (Unite: Minutes), the projector enters the
stand-by mode. 15 / 30 / 60 / OFF*
Page 1: Press ENTER to return to the “Page 1” submenu.
Language Language for on-screen display. → (Refer to page 46)
Japanese / English* / German / Spanish / Italian / French
Information → (Refer to page 56)
Input: Shows the terminal name selected by the PC button. (PC1 or PC2)
Switcher: This display currently has no meaning. (“CH.0” is usually displayed to indicate that it is not being used.)
Resolution: Shows the resolution of the input signal being received. (Horizontal × Vertical)
It may not be displayed correctly with some input signals.
Frequency H: Shows the horizontal frequency of the input signal being received. ( kHz)
Frequency V: Shows the vertical frequency of the input signal being received. ( Hz)
Lamp time: Accumulated used hours of the light-source lamp.
41
Menu Operations
ENGLISH
DEUTSH
FRAN
ÇAIS
ITALIANO
ESPAÑOL

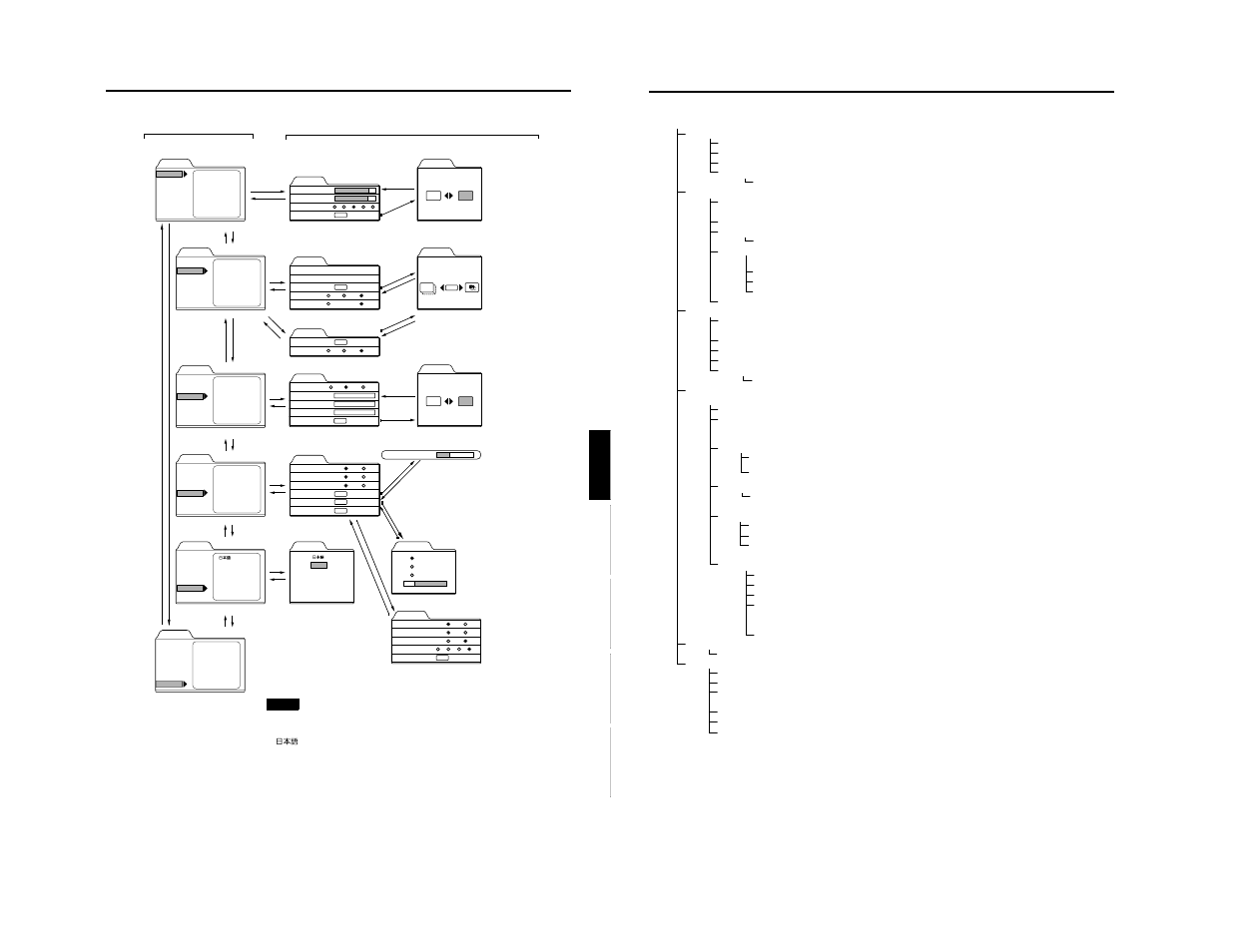

■ Menu Transition Diagram in PC Menu Mode
Menu
Image adj.
Set up
Color temp.
Options
Language
Information
Tracking
Phase
Position
Resize
Clamp
Menu
Image adj.
Set up
Color temp.
Options
Language
Information
Menu display
Line display
Lamp time display
Keystone
Lamp control
Yes
Image adj.
All reset?
No
ENTER
Position
Disp.Posi. Menu
Yes
Color temp.
All reset?
No
Color temp.
Color temp.
RED
GREEN
BLUE
All reset
Color temp.
RED
GREEN
BLUE
All reset
123
123
123
ENTER
Middle High Low
Menu
Image adj.
Set up
Color temp.
Options
Language
Information
Menu
Image adj.
Set up
Color temp.
Options
Language
Information
English
Deutsch
Español
Italiano
Français
Menu
Image adj.
Set up
Color temp.
Options
Language
Information
Input
Switcher
Resolution
Frequency H
Frequency V
Lamp time
PC 1
CH.0
NTSC
79.9
75
123
kHz
Hz
h
Language
English
Deutsch
Español
Italiano
Français
Image adj.
Contrast
Brightness
Sharpness
All reset
12
12
ENTER
1 2 3 4 5
Menu
Image adj.
Set up
Color temp.
Options
Language
Information
Contrast
Brightness
Sharpness
All reset
Set up 1
Position
Resize
Options
Menu display
Line display
Lamp time display
Keystone
Lamp control
Page 2
ON
15sec
5sec
ENTER
ON
OFF
OFF
ENTER
ENTER
Page 2
Flip H
Flip V
RS-232C [bps]
Sleep time [min]
Page 1
OFF
OFF
9600
ENTER
ON
ON
19200
15 30 60 OFF
Keystone 0
12,12
Set up 1
Tracking
Phase
Position
Resize
Clamp
123
12
ENTER
ST BP
1:1 Panel Aspect
ENTER
1:1 Panel Aspect
Lamp control
Normal
LPC
LOC
Press 5/∞ to select an item.
Press 2/3 to set or adjust the value.
3 or
ENTER
Press 5/∞ to select an item. Press 2/3 to select Yes or No.
Then, press ENTER to execute.
Press 5/∞ to select an item.
Press 2/3 to set or adjust the value.
Press ENTER to select an item.
Press 5/∞ / 2/3 to move the
video screen/menu position.
EXIT
3 or
ENTER
EXIT
Press 5/∞ to select an item.
Press 2/3 to set or adjust the value.
Press 5/∞ to select an item.
Press 2/3 to set or adjust the value.
ENTER
EXIT
EXIT
ENTER
3 or
ENTER
EXIT
3 or
ENTER
EXIT
∞
∞
∞
5
5
5
∞
5
ENTER
EXIT
ENTER
ENTER
EXIT
ENTER
∞ 5
Main menu in PC Menu Mode Submenus in PC Menu Mode
Press 2/3 to select Yes or No.
Then, press ENTER to execute.
Press 5/∞ to
select an item.
Press 5/∞ to select an item.
Press 2/3 to set or adjust the value.
Note
• The display languages of the menus are set to “English” when the projector is
bought. The display language can be selected from the following 6 languages:
“ (Japanese)”, “English (English)”, “Deutsch (German)”, “Español
(Spanish)”, “Italiano (Italian)” and “Français (French)”. (Refer to page 46.)
The language settings in the section are explained in “English”.
You can see the information.
∞ 5
