DLA-G150CLU DLA-G150CLE 1-54
No.51931
26

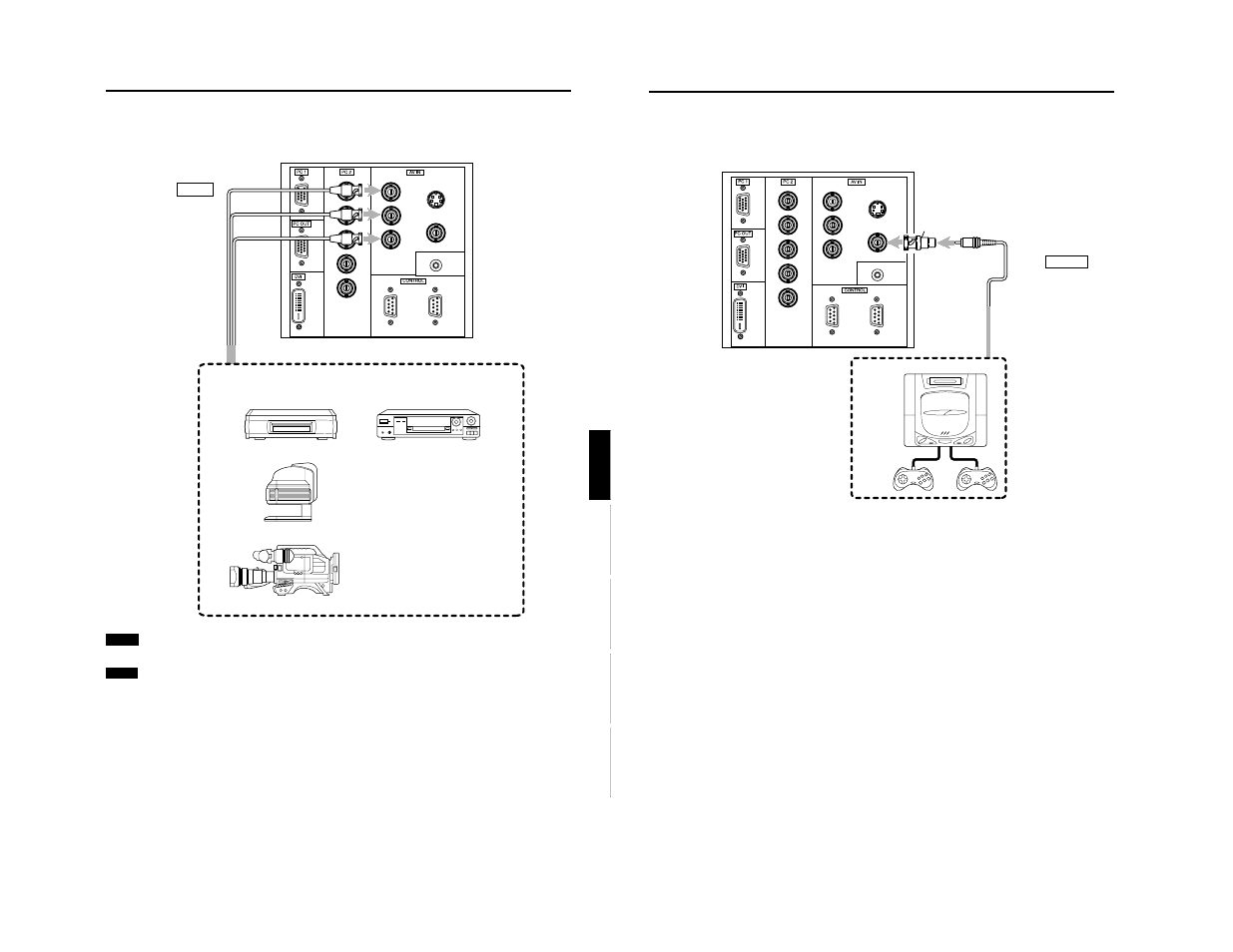

Connecting to Various Devices
Connecting to Other Devices
Before connection, be sure to turn off both the projector and other devices to be connected.
• Read thoroughly the manual that comes with the device to be connected.
• Use the supplied video cable or the cable supplied with the game device.
Y
P B /B-Y
P R /R-Y
IN
REMOTE
Y/C
VIDEO
R
G
B
H
IN OUT
V
Cable supplied with the
game device, or supplied
video cable
Game device, etc.
To VIDEO
BNC-RCA conversion
plug (accessory)
To AV IN
25
Connecting to Various Devices
ENGLISH
DEUTSH
FRAN
ÇAIS
ITALIANO
ESPAÑOL
Connecting to Hi-Vision Devices/DVD Players
Before connecting, be sure to turn off both the projector and Hi-Vision devices/DVD players.
• Thoroughly read the manual that comes with each Hi-Vision device or DVD player.
• Use separately available BNC cables to connect Hi-Vision devices and DVD players.
Note
• Connect a component signal output device or DTV-format signal output device.
Memo
• Other devices with component signal output terminals (DVD player (NTSC), etc.) can be connected.
(*DVD: Digital Video Disc)
• DTV-format signals (480i, 480p, 720p, 1080i) can be input. For DTV-format signals which can be handled, refer to “Video
signals” on page 22.
Y
P B /B-Y
P R /R-Y
IN
REMOTE
Y/C
VIDEO
R
G
B
H
IN OUT
V
• Text/video camera
• Hi-Vision video camera
Hi-Vision devices
• W-VHS VCR
BNC cable
(separately available)
To P R /R-Y
To P B /B-Y
To Y
To PC 2
DVD player
