DLA-G150CLU DLA-G150CLE
1-13
No.51931
25

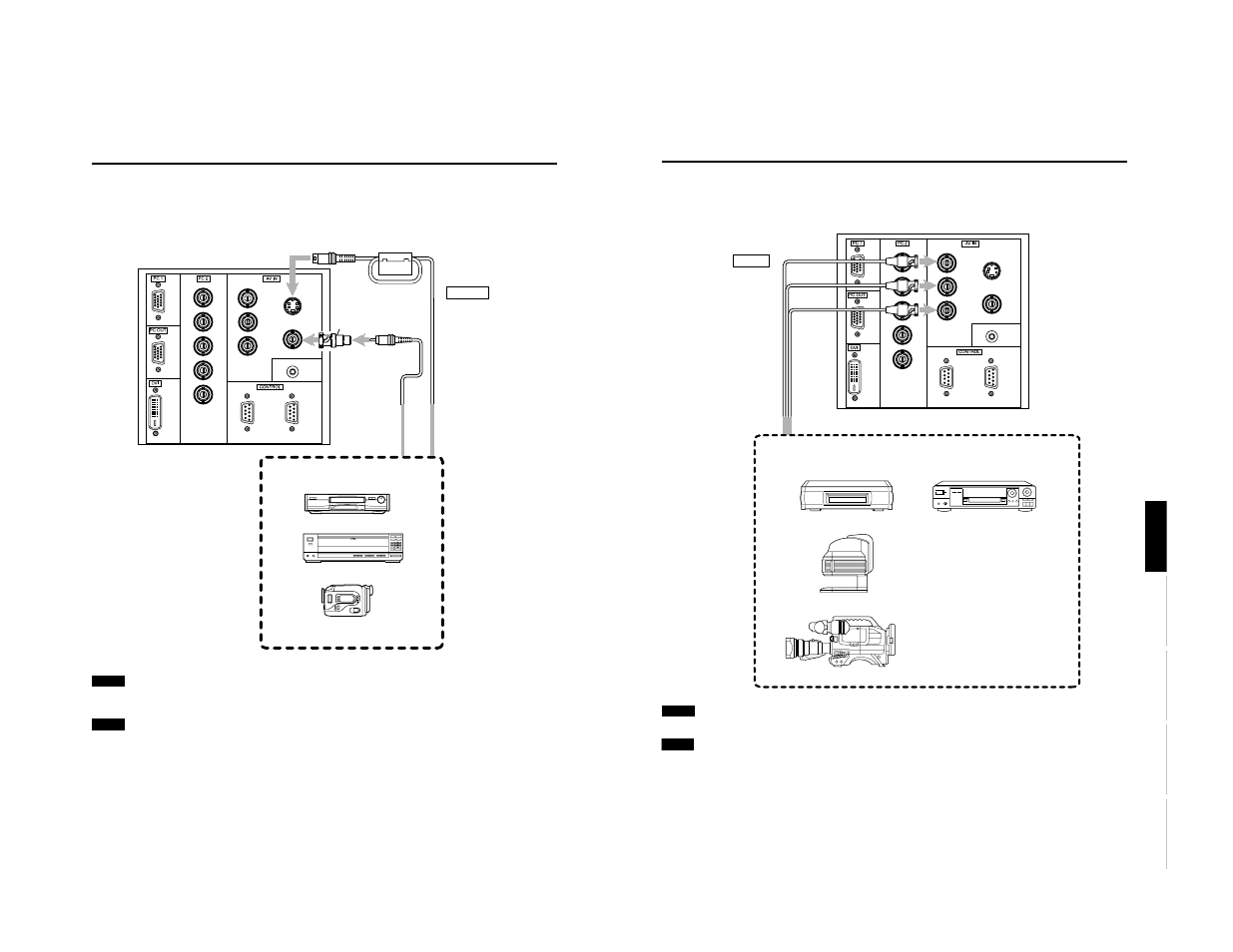

Connecting to Various Devices
ENGLISH
DEUTSH
FRAN
ÇAIS
ITALIANO
ESPAÑOL
Connecting to Hi-Vision Devices/DVD Players
Before connecting, be sure to turn off both the projector and Hi-Vision devices/DVD players.
• Thoroughly read the manual that comes with each Hi-Vision device or DVD player.
• Use separately available BNC cables to connect Hi-Vision devices and DVD players.
Note
• Connect a component signal output device or DTV-format signal output device.
Memo
• Other devices with component signal output terminals (DVD player (NTSC), etc.) can be connected.
(*DVD: Digital Video Disc)
• DTV-format signals (480i, 480p, 720p, 1080i) can be input. For DTV-format signals which can be handled, refer to “Video
signals” on page 22.
Y
P B /B-Y
P R /R-Y
IN
REMOTE
Y/C
VIDEO
R
G
B
H
IN OUT
V
• Text/video camera
• Hi-Vision video camera
Hi-Vision devices
• W-VHS VCR
BNC cable
(separately available)
To P R /R-Y
To P B /B-Y
To Y
To PC 2
DVD player
24
Connecting to Various Devices
Connecting to Video Devices
Before connection, be sure to turn off both the projector and video device.
• Read thoroughly the manual that comes with each video device.
• Use the supplied video cable. An video cable with an S-video (Y/C) terminal is not supplied.
Notes
• Connect a composite image signal output device or Y/C (S-video) image output device.
• When connecting the S-video cable, refer to “How to attach the ferrite core” on page 29.
Memo
• When connecting a video device, use a TBC along with it, or one which has a built-in TBC.
• Use of an extension cable to connect a video device and the projector could cause video degradation.
• When a signal with much jitter is reproduced on a VCR, or special-effect playback is performed, the upper part of the image
or the image itself may be erased or distorted.
Y
P B /B-Y
P R /R-Y
REMOTE
Y/C
VIDEO
R
G
B
H
IN
IN OUT
V
• Camcorder
To
Y/
C
Video cable
(accessory)
To
VI
D
E
O
Video devices
• Laser videodisc player
• VCR (Video cassette recorder)
S-video cable
(separately available)
BNC-RCA conversion
plug (accessory)
To AV IN
