19

Preparations

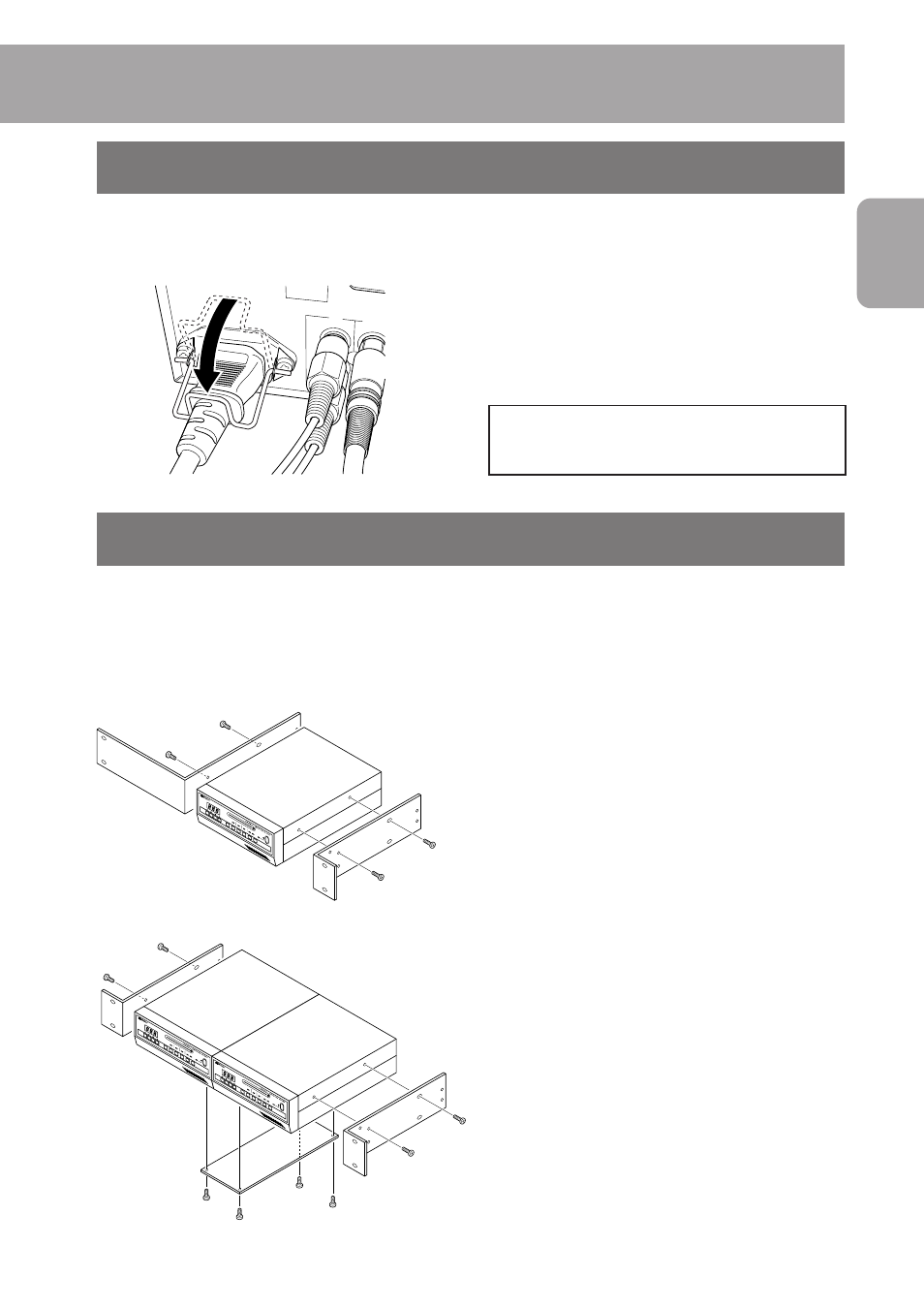

1-5 Connecting the Power Cord

Connect the unit to AC120V outlet using the included power cord. Fix the cord using the

locking bracket.

Do not use the included cord other than for

this unit.

To completely cut-off power, remove the power

plug from the wall outlet or remove the power

cord from the AC IN terminal of the unit.

1-6 Attaching Rack Mount Brackets

The rack mount brackets (optional) can be used to install the unit to a rack. Request installation

to the dealer of purchase.

* For details concerning the rack mount brackets, please consult the person in charge of professional equip-

ment at your nearest JVC-authorized service agent.

1.

Remove the 4 feet on the bottom of the unit.

Use a set of long-nose pliers or a flat-head

screwdriver to pull out the feet using the pro-

trusions on the center.

2.

Remove the 4 screws on the sides.

3.

Install the rack mount brackets (WT-Z11J) as

shown in the diagram. (Screws are included

with the rack mount brackets.)

1.

Remove the 4 feet on the bottom of the unit.

Use a set of long-nose pliers or a flat-head

screwdriver to pull out the feet using the pro-

trusions on the center.

2.

Remove the 2 screws on the bottom of each

unit.

3.

Mount the coupling plate (DM-Z300J).

4.

Install the rack mounting brackets (PA-U22) as

shown in the diagram. (Screws are included

with the rack mount brackets.)

● In case of 1 unit

● In case of 2 units

PO

W

ER

IN

2

IN

1

HO

LD

DE

CO

DE

EN

CO

DE

CF

PLA

Y

ST

OP

HOLD

SELECT

P

P

in

PO

W

ER

IN

2

IN

1

HO

LD

DE

CO

DE

EN

CO

DE

CF

PLA

Y

ST

OP

HOLD

SELECT

P

P

in

PO

W

ER

IN

2

IN

1

HO

LD

DE

CO

DE

EN

CO

DE

CF

PLA

Y

ST

OP

HOLD

SELECT

P

P

in

Use of a cord other than that specified or a cord that

has been damaged may result in fire or electrical

shock.
