Preparations
Step 1 Connection/Installation
1-1 Connection Examples

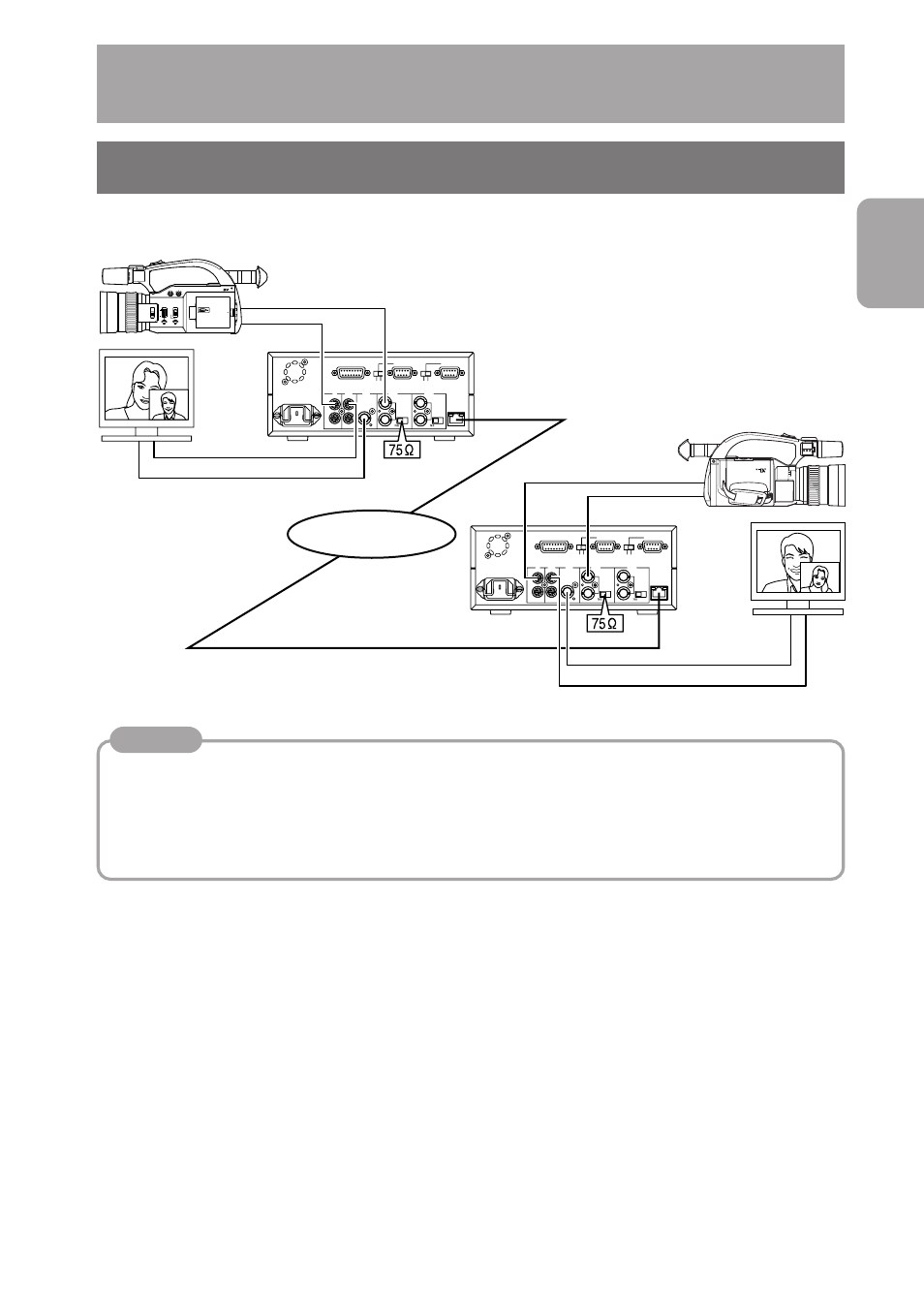

(1) Teleconference system
Network Network
IN 2
100BASE-TX
OPEN
VIDEO
LOOP
THRU
SERIAL 1
SERVICE CONTROL
SERIAL 2
OUT VIDEO IN 1
OPEN
LOOP
THRU
VIDEO
RESERVED
AC IN
R
L
OUT AUDIO
ALARM
RS485 RS232C
IN
IN 2
100BASE-TX
OPEN
VIDEO
LOOP
THRU
SERIAL 1
SERVICE CONTROL
SERIAL 2
OUT
VIDEO
IN 1
OPEN
LOOP
THRU
VIDEO
RESERVED
AC IN
R
L
OUT
AUDIO
ALARM
RS485 RS232C
IN
MIC 2 IN
MIC 1 IN
PROFESSINAL
DV CAMCORDER GY-DV300
IRIS
AUDIO
LEVEL
CH-1 CH-2
ND FILTER
ON
OFF
FOCUS
AUTO
PUSH
AUTO
MANU OPEN
VIDEO OUT
AUDIO OUT
AUDIO IN VIDEO IN 1
Teleconference mode
(
੬
page 29)
V. IN A. IN AUDIO OUT
VIDEO OUT
100BASE-TX
V. IN A. IN
AUDIO OUT
VIDEO OUT
AUDIO IN VIDEO IN 1
VIDEO OUT
AUDIO OUT
Te l e c o n f e r e n c e
mode (
੬
page 29)
100BASE-TX
Memo
• Make sure to set each IP address differently.
• Use of a dedicated network is recommended.
• Use 100BASE-TX compatible network devices. Set ports of the devices to Auto Negotiation.
• Use the L channel of AUDIO IN. R channel is not available in this mode.
• Videos to be used in the Teleconference mode are from cameras for conference. Video with fast motion such as
a movie, etc. may cause block noise or lowering of the frame rate than the setting.
