24 Previous
screen
The Component signal (YP
B
P
R
signal) can be input and projected
with this LCD Projector. Please read the operating instructions
regarding the output side of the component when connecting.

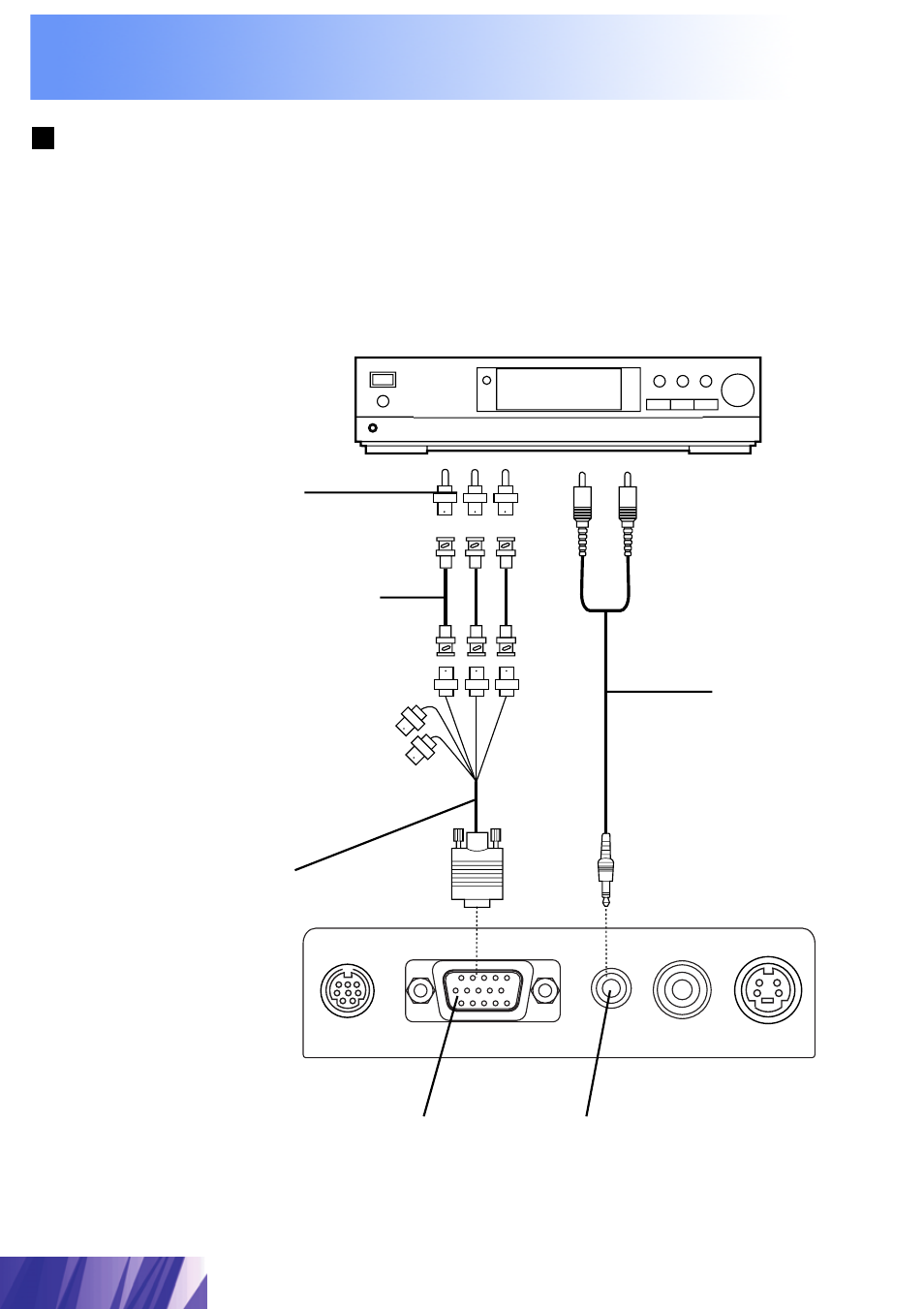

System Configuration Example
Connecting D-sub15-BNC5 (female) Adaptor Cable
BNC-RCA Adaptor
(not included)
Red
(Connect to P
R Input Signal)
Blue
(Connect to P
B
Input Signal)
Green
(Connect to Y Input Signal)
D-sub15-BNC5
(female) Adaptor
Cable
(not included)
Audio Cable
DVD Player
BNC Cable (not included)
RGB/YP B P R IN AUDIO IN
Continued on the next page...
(Supplied)
