screen
VCR
S-Video Cable
(not included)
Audio Cable
Audio Cable
Video Cable

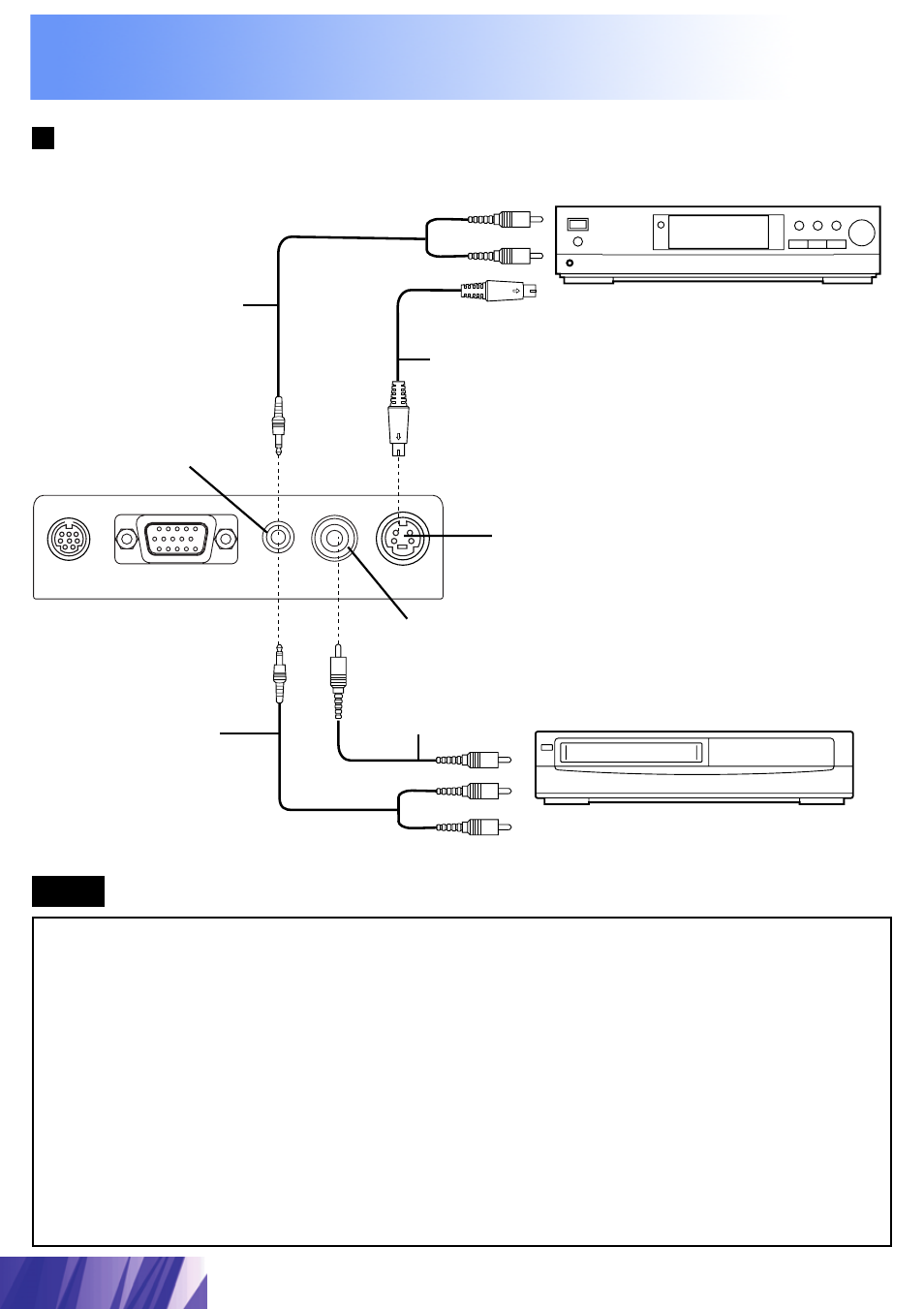

Example of connection to audio-visual equipment
System Configuration Example
• Only one audio system circuit is available for the AUDIO IN jack,
so if you wish to change the audio input source, you will need to
remove and insert the appropriate plugs.
• If the video signal source is connected using a cable with a
BNC junction plug, use the BNC-RCA Adaptor (not included) to
convert the pin jack.
• Use the cable included with this unit. If a cable longer than the
unit’s accessory cable is used, the display can become unstable
and clear projection may not be possible.
Note
AUDIO IN
S-VIDEO IN
VIDEO IN
DVD Player
(Supplied)
(Supplied)
(Supplied)
