Intel Arima LH500 User Manual
Page 42
42
2.6.8 Front USB Connector
Header CN23 controls the two front USB connections.
To activate the front USB, connect the two USB wire to CN23. Each USB wire requires 4 pins; CN23 has
9 pins, therefore supports two USB connections. The one extra pin is for chassis ground use.

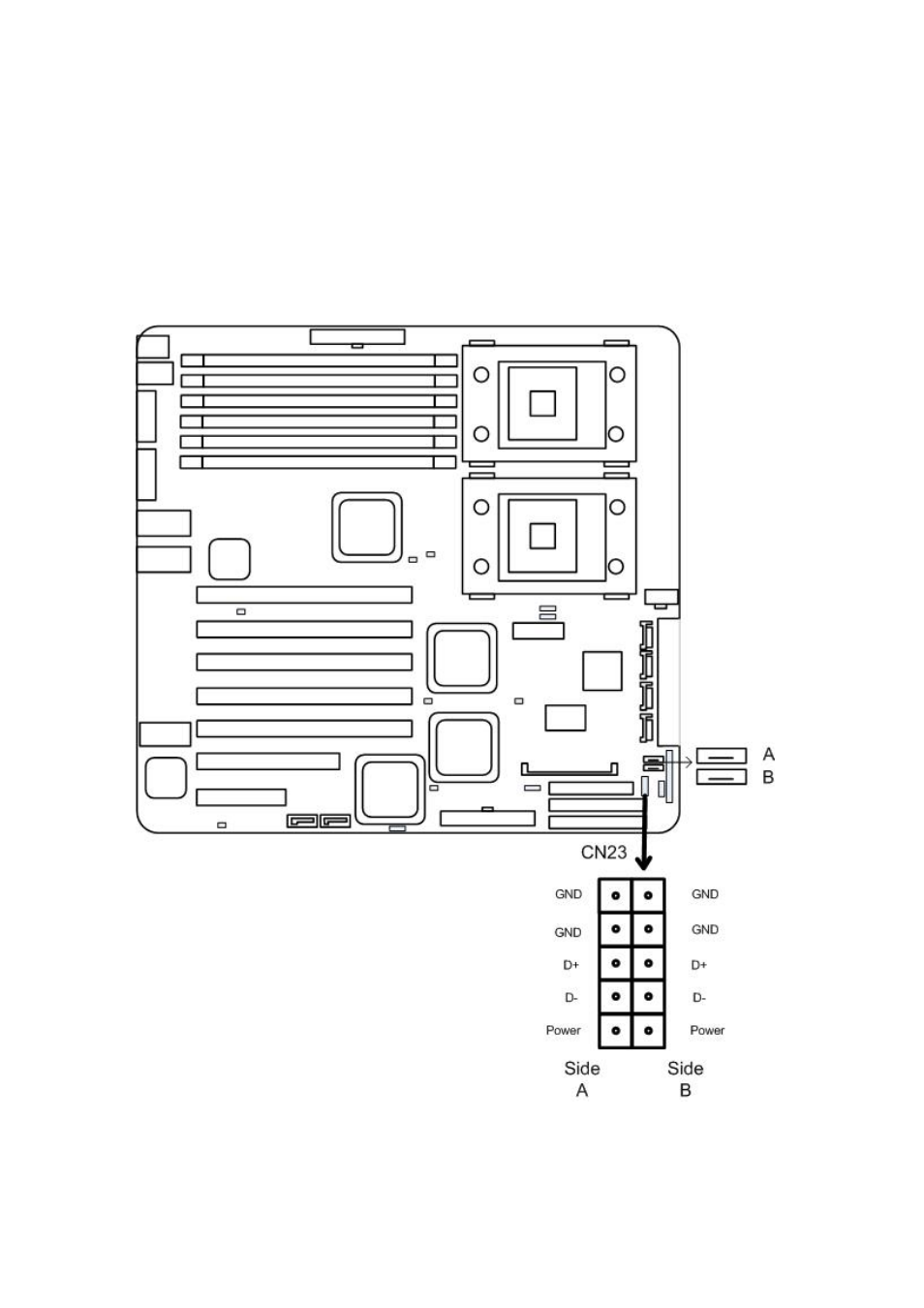

Refer to the following diagram for the location of CN23.
