20

2.3 Installing the memory

2.3.1 DIMM combination

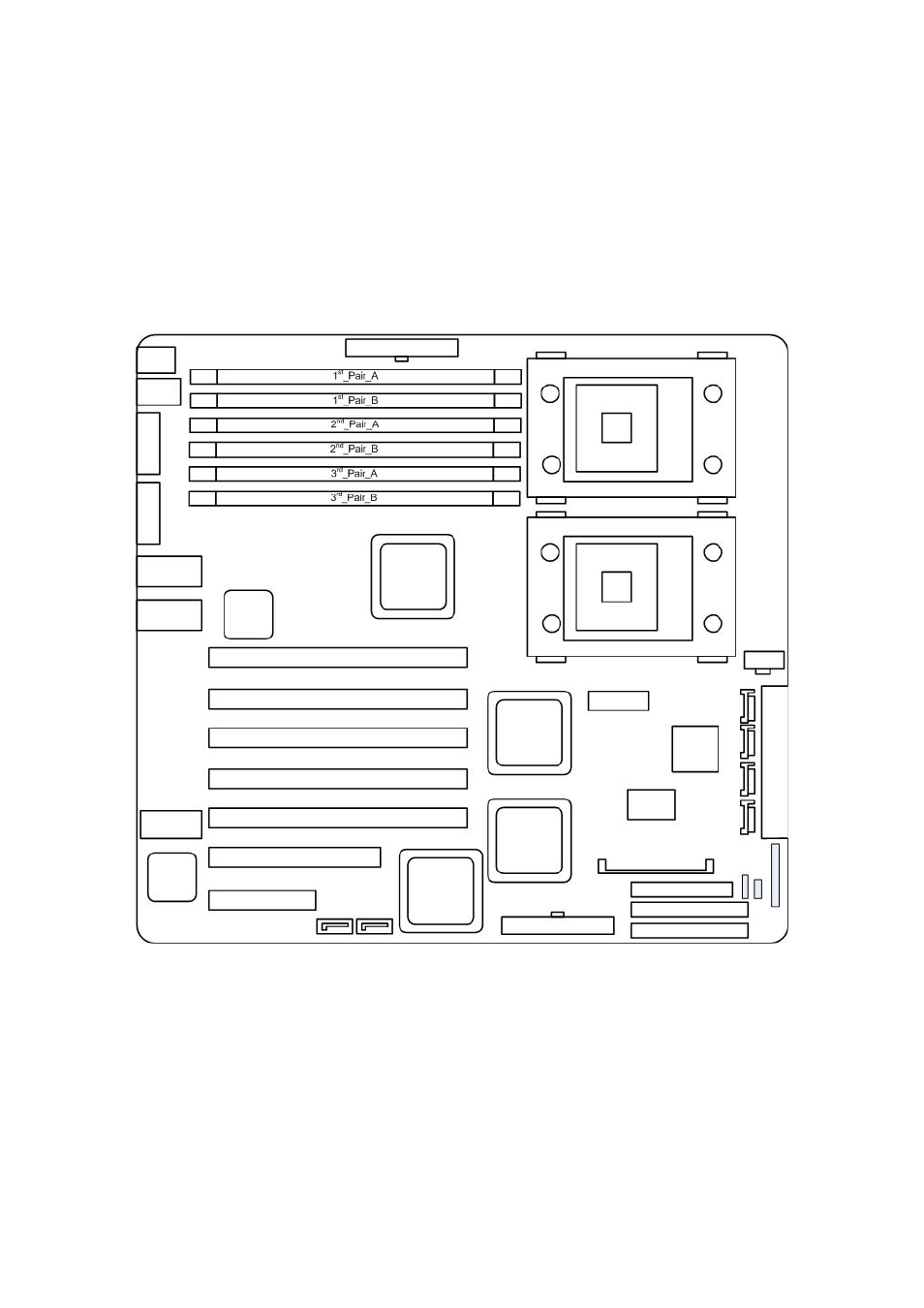

The following diagram indicates the locations of memory sockets, captioned 1

st

_Pair_A through 3

rd

_Pair_B.


Types of memory supported:
Six sockets of 184-pin 2.5Volt DDR DIMM supporting DDR-333/266.

As indicated on the diagram, they are running on dual channel memory bus and two-way interleaved
memory banks. Therefore, the memory must be INSTALLED IN PAIRS. The first pair must be installed
in the “1

st

_Pair_A” and “1

st

_Pair_B” locations as indicated in the diagram. The second pair must be

installed in the “2

nd

_Pair_A” and “2

nd

_Pair_B” locations, and so on. Be sure that every memory pair is of

the same speed, size and rank.
