2.4 Jumpers Configuration
2.4.1 Clear CMOS header

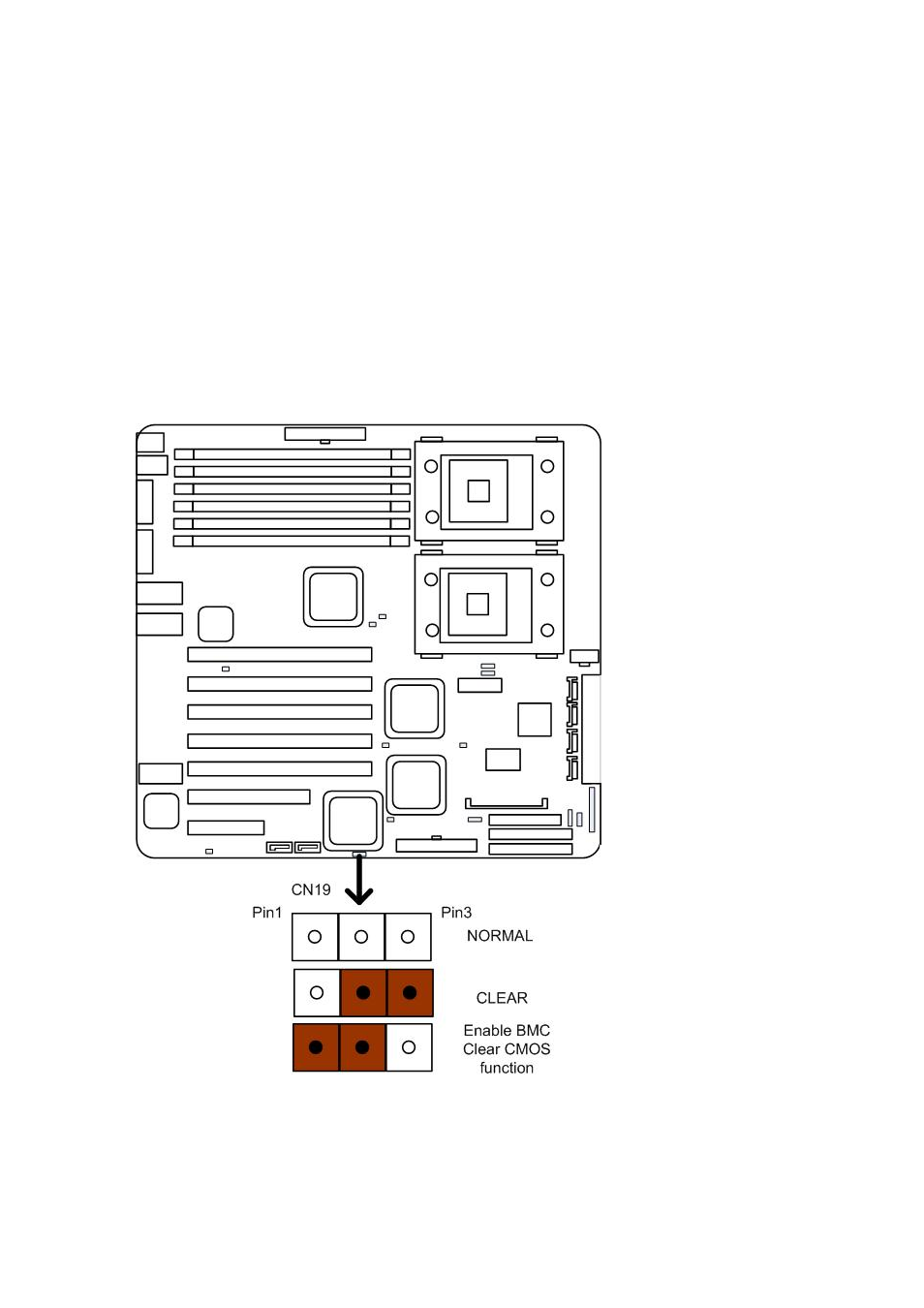

Header CN19 controls CMOS setting. Position your motherboard as it appears in the following diagram.
Pin 1 is on the side of PCI slots, whereas pin 3 is on the side of the power supply connectors. To clear
CMOS:
1. Turn off the system.
2. Short pin 2and pin 3 using a jumper for a few seconds.
3. Take out the jumper.
4. Turn on the system and reconfigure the BIOS.
