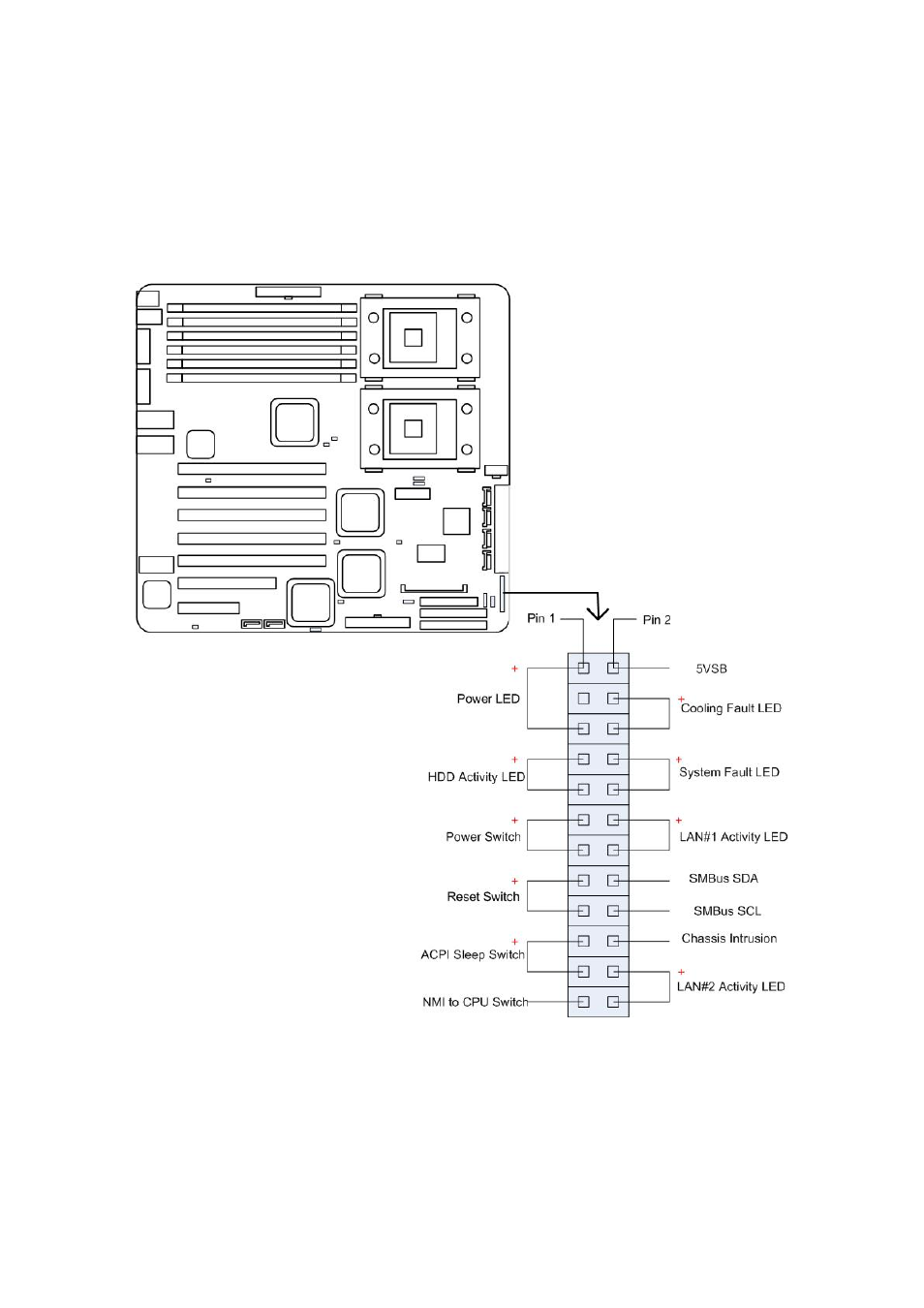

2.6.3 Front Panel Connectors
You can find the pin number on the corner of the pin block. Pin 2 is located closer to the outer edge of the
motherboard than pin 1. Pin 34 is closer to the outer edge of the motherboard than pin 33.
The red
+
indicates the anode, or the +5V. The opposite pin, then, indicates the cathode or the ground.
