Page 39
39

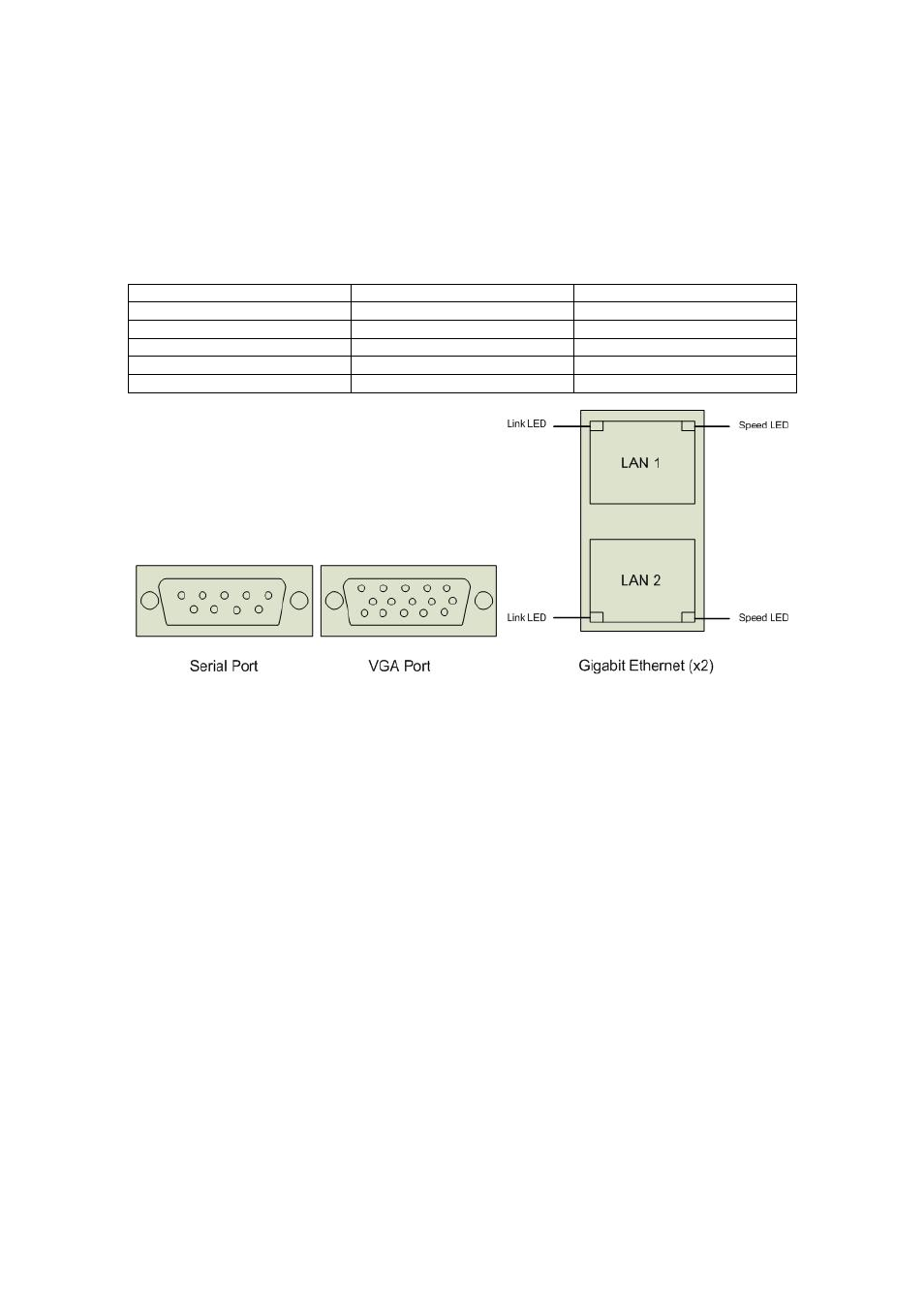

2.6.5 Back Panel LAN LED
Back Panel LAN LED:
header CN52 and CN53 control front panel LAN LED settings. It allows the user to monitor LAN
activities from the front of the system.
State of Link
Link LED (green)
Speed LED (green/yellow)
No link
OFF
OFF
Link @ 10Mbps
ON
OFF
Link @ 100Mbps
ON
Green
Link @ 1000Mbps
ON
Yellow
activity BLINK
