2.4.5 PCI-X Slot 5 Jumper:
Header CN9 controls PCI-X Slot 5 setting. When CN9 is open, no jumper, slot 5 is set to 133MHz. When
CN9 is on, slot 5 is set to 100MHz. The frequencies describe here are maximum operating frequencies. If
PCI-X channel is shared with other devices, then maximum operating frequency cannot be achieved.

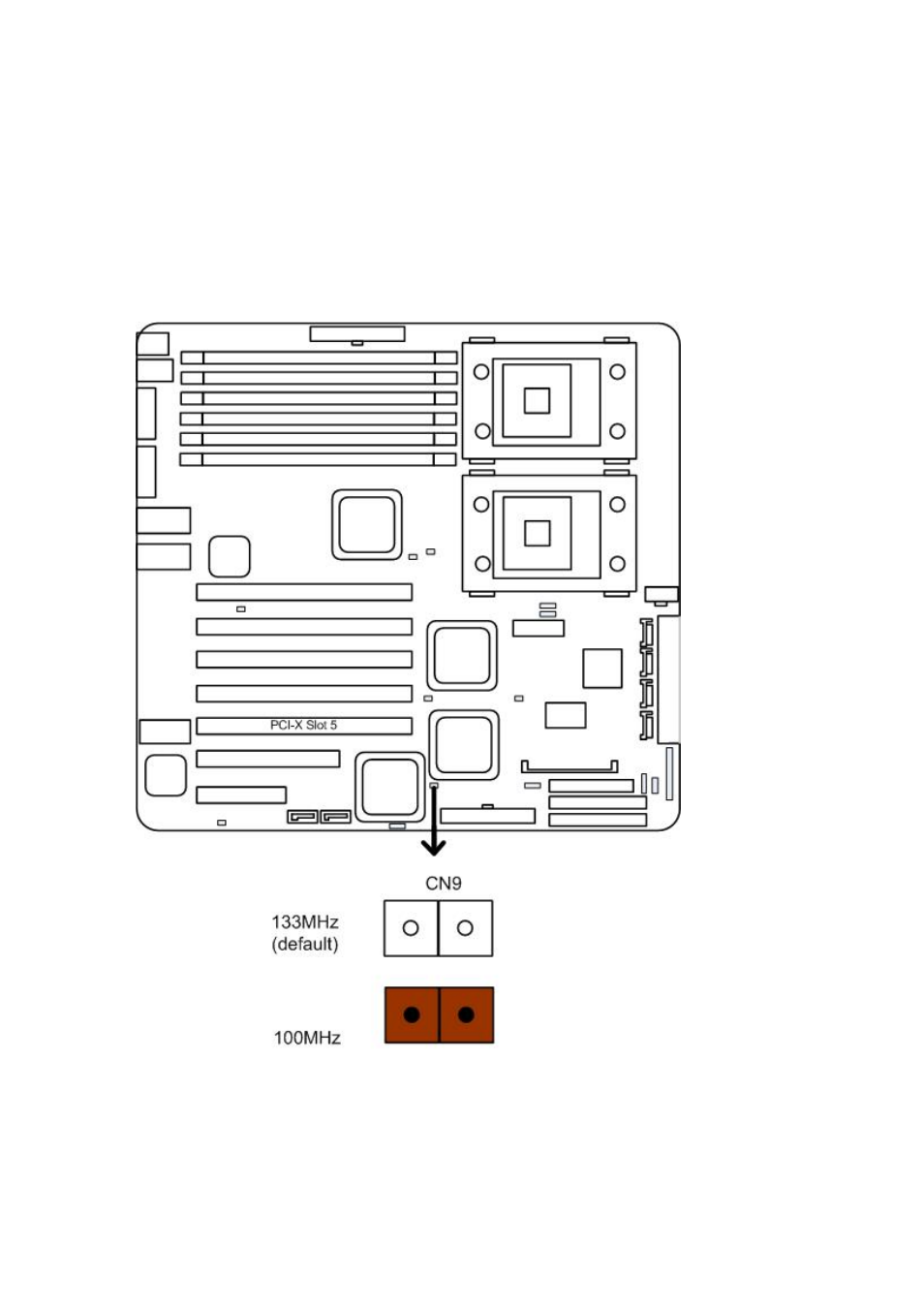

Refer to the following diagram for the location of CN9.
